How to Optimize CNC Milling for Hard-to-machine Materials?

CNC milling is an indispensable part of modern manufacturing, it provides precise formwork of different materials. However, manufacturers have a very serious problem with machining hard-to-machine materials like titanium, Inconel, hardened steels, ceramics and composites that are difficult due to hardness, toughness and heat resistance, they possess better mechanical properties but also present additional problems due to hardness, toughness and heat resistance issues. In order to stay efficient and achieve precision manufacturing, manufacturing must adopt new CNC machining methods along with advanced tooling and sophisticated process parameters in order to stay efficient and achieve precision manufacturing.

What are Hard-to-machine Materials

Hard-to-machine materials are known by their high hardness, strength and wear, heat and corrosion resistance. Their nature renders them suitable for use in aerospace, medical and energy sectors; however, they present specialized issues in machining processes. Some of them are:

Titanium and titanium alloys: Most widely known for having high strength-to-weight ratio and corrosion resistance.
Superalloys and Inconel: Nickel-based alloys designed to withstand extremely high temperatures and pressures. Hardened Steels: Used in extensive applications in tooling, parts of high stress and other high stress uses due to toughness.
Composites and ceramics: Chosen because they are thermally stable and hard. Stainless Steels: Particularly grades such as 316 and 304 which offer high wear resistance.

Challenges of CNC Milling Hard-to-machine Materials

The understanding of these problems enables makers to effectively resolve them and achieve quality CNC milling of difficult-to-cut materials. Manufacturers can apply certain solutions upon understanding, which resolve them effectively and produce improved results when CNC milling hard-to-machine materials.

Challenge	Description	Impact
High Cutting Forces	Hard materials require significant force to cut.	Increases tool wear and strain on machines.
Heat Generation	Friction between the tool and material generates intense heat.	Damages tools and workpieces; affects dimensional accuracy.
Tool Wear	Hard and abrasive materials accelerate tool degradation.	Frequent tool changes increase costs and downtime.
Work Hardening	Some materials (e.g., stainless steel, Inconel) harden during machining.	Makes the material even harder to cut as the process continues.
Surface Finish Issues	Tough materials and tool deflection can lead to poor surface finishes.	Requires additional finishing processes, increasing time and cost.
Low Thermal Conductivity	Poor heat dissipation leads to heat buildup at the cutting zone.	Reduces tool life and can cause thermal damage to the workpiece.
Vibration and Chatter	Hard materials can cause vibrations during machining.	Affects precision and surface quality; may damage the machine or tool.
Cost	Specialized tools, slower speeds, and higher energy consumption increase costs.	Higher production costs and reduced profitability.
Material Fracture	Brittle materials (e.g., ceramics) can crack or chip during machining.	Leads to material waste and potential rework.
Chip Evacuation	Hard materials often produce tough, stringy chips that are difficult to remove.	Poor chip evacuation can damage the workpiece or tool.

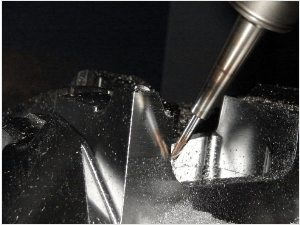

CNC Milling in Hard-to-machine Materials

Solutions for CNC Milling of Hard-to-machine Materials

1. Selection of the Right Cutting Tools

The selection of cutting tools is among the most critical factors in successfully machining hard materials. Common HSS tools do not have the endurance to be employed in such operations, and thus carbide, cubic boron nitride (CBN), and polycrystalline diamond (PCD) tools are optimum tools due to their greater resistance to wear, heat stability, and cutting efficiency.

TiAlN and AlCrN coatings also enhance tool life as a result of friction reduction and improved dissipation of heat, and are particularly beneficial for long-duration high-temperature cutting. Multi-layer coatings can be particularly beneficial.

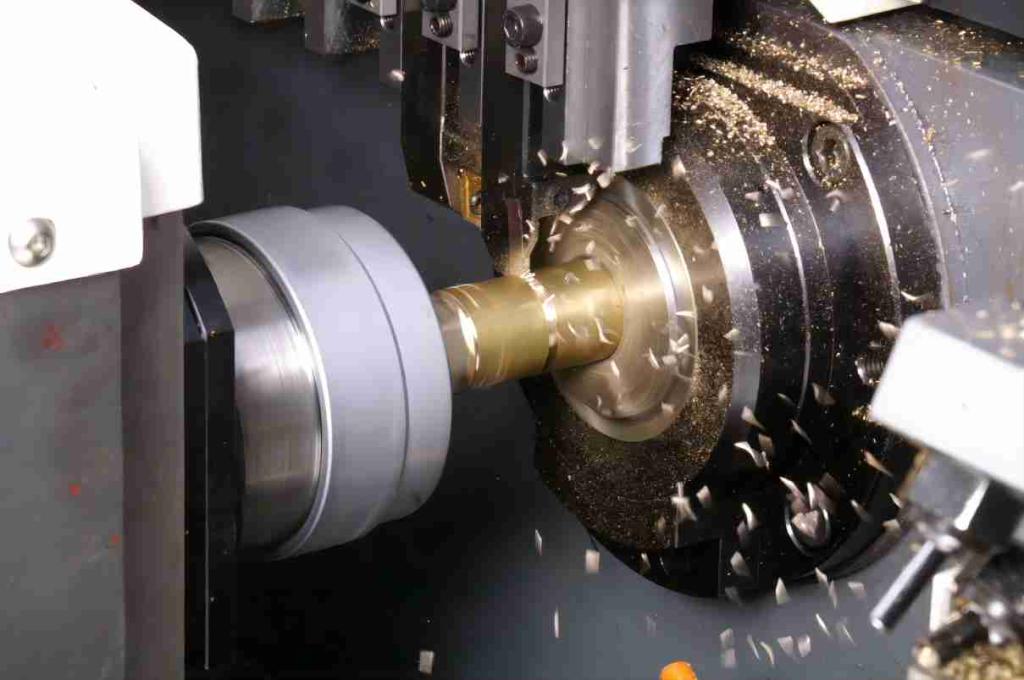

2. Optimizing Cutting Parameters

Adjustment of machining parameters is crucial for improving efficiency and extending tool life. Cutting speed, feed rate, and depth of cut should all be adjusted based on material properties and tool characteristics to get the best results.

Reduced Cutting Speeds: Hard materials produce excessive heat, hence reducing cutting speeds to avoid thermal damage to tools.
Higher Feed Rates: A higher removal rate with decreased wear could help in more rapid material removal with less tool wear issues; however, excessive feed rates could cause surface roughness issues.
Shallow Depth of Cut: Reducing depth of cut will reduce cutting forces, reduce tool stress and increase accuracy.

Other adaptive machining processes such as high-speed machining (HSM) and trochoidal milling also increase efficiency through increased chip evacuation and reduced tool engagement per pass.

3. Advanced Cooling and Lubrication Techniques

Effective cooling methods contribute to heat dissipation and prevention of tool degradation. High-pressure coolant systems deliver direct cooling to the cutting zone, improving tool life without warping the workpiece.

Liquid nitrogen cryogenic cooling can reduce thermal stress by a great deal and improve tool life in aggressive applications, so this is a useful resource when machining superalloys such as Inconel where too much heat will cause work hardening.

Minimum quantity lubrication (MQL) is another highly efficient system that ejects a mist of lubricant directly into the zone being cut and denies fluid waste. MQL is normally applied in precision work where traditional flood cooling is impossible.

4. Chip Control and Evacuation

Effective chip management is key when working with materials that produce tough or long chips or abrasive dust. A failure in chip control could result in tool breakage, poor surface finish, or machine damage – potentially leading to tool fractures, tool breaks and machine repairs.

Sharp Cutting Edges: Utilizing sharp tools with specific geometries provides for more precise chip formation and lower cutting forces.
Utilisation of Chip Breakers: Inserts featuring chip breakers allow the segmentation of long chips into smaller pieces for more efficient evacuation of long chips.
Effective Coolant Flow: By targeting coolant streams towards the cutting zone, effective coolant flow helps flush away chips away from workpiece and tool.

5. Vibration Control and Machine Stability

Vibration can have a detrimental impact on surface finish and tool performance. Hard materials require a rigid machine setup in order to remain stable and accurate.

High-Performance CNC Machines: CNC machines with dynamic dampening and control can reduce vibrations at high-speed milling.
Rigid Fixturing and Clamping: Rigid clamping of the workpieces is at the heart of ensuring cutting precision and prevention of movement during process.
Balanced Tool Holders: Balanced tool holders will reduce spindle vibration for smooth operation.

Applications of CNC Milling for Hard-to-Machine Materials

1. Aerospace Industry

CNC milling has been a blessing to the aerospace sector relies heavily on CNC milling for machining difficult-to-machine materials like titanium alloys, nickel superalloys like Inconel and carbon fiber materials. These materials’ light weight but high strength properties make them a part and parcel of aircraft engines, structural components, and landing gear due to their light weight but high strength properties.

Aircraft Engine Components: Turbine blades, heat-resistant engine components, and compressor disks all require precision to withstand heat and mechanical stresses.
Structural Airframe Components: Titanium and composite materials are milled into light yet strong fuselage and wing structures that improve fuel efficiency and performance.
Landing Gear Systems: Hardened steels and high-strength alloys ensure durability and resistance against impact forces during landing operations.

2. Medical Industry

In medical science, CNC milling plays a key role in the production of implants, surgical instruments as well as prosthetics from biocompatible materials like titanium, stainless steel, and ceramics. The components have to meet strict standards and be of the highest accuracy to ensure security.

Orthopedic Implants: Hip and knee replacement implants and bone plates demand the accuracy milling to fit the human body anatomy and provide long-term performance.
Surgical equipment: The surgical equipment, including scalpels, forceps and drill guides machined to extremely close tolerances for assured safety of surgery.
Dental prosthetics: Ceramic crowns, bridges, or titanium dental implants can be made from precise details to ensure a flawless fit and a long-lasting lifetime.

3. Automotive Industry

The automobile industry can utilize CNC milling that can machine high-performance engine parts, gearboxes, and suspension systems. Most of these parts require tolerance to high temperature and wear resistance.

Engine Parts: CNC milling can create precise pistons, cylinder heads and camshafts out of hardened steel and aluminum alloys to increase the combustion efficiency and durability for long-term use.
Transmission Gears: Alloys with high strength provide smooth operation combined with wear resistance for high-torque applications.
Brake System Components: Ceramic disc brakes and calipers need the highest level of precision in machining to provide the best performance in high-speed and high-friction applications.

4. Energy and Power Generation

CNC milling plays an important role in the energy sector especially fluid power generation, besides oil and gas processes wherein parts are subjected to extremely high pressure as well as temperatures.

Turbine Blades: Nickel-based superalloys like Inconel are milled for the production of steam turbines and gas turbines in order to be efficient as well as to be resistant against heat-induced deformation.
Valve and Pump Components: Components of Valve and Pumps: Hardened valves made of titanium and steel that are used in gas and oil pipelines require precision machining to deal with corrosive environments as well as high-pressure flow.
Nuclear Components of Reactors: CNC milling is vital for the production of radiation-resistant components for use in reactor cores control rods, as well as cooling systems.

5. Defense and Military Applications

The defense sector depends on precision parts that are incredibly resilient for armed aircraft and armored vehicles. CNC milling can produce components with expert design that are compatible to endure the rugged battlefield conditions.

Components for Ballistic Armor: Hardened steels and ceramics are fabricated to make light, yet durable armor for military vehicles as well as personal protective equipment.
The Firearm as well as Ammunition Components: CNC milling allows for the precision of manufacturing firearm barrel firing mechanisms, gun barrels, and bullet casings, improving performance and accuracy.
Aerospace Defense Systems: Composites and High-strength Alloys are used to create rocket casings for missiles, airplane fuselages, and components of radar systems.

6. Semiconductor and Electronics Industry

As electronic devices have been miniaturized and increased in complexity, CNC milling helps manufacture precision parts used in circuit boards, semiconductor production or heat-management systems.

Micro-Machined Parts: CNC milling is used to fabricate ultra-tiny parts for semiconductor production equipment and micro-electromechanical systems (MEMS).
Heat Sinks and Cooling Systems: High-tech copper and aluminum cooling systems are machined to help disperse heat efficiently in high-power electronic equipment.
Connector and Housing components: Precision-machined casings and enclosures for electronic components that are sensitive provide protection against environmental elements or electromagnetic interference.

Summary

CNC milling of hard-to-machine materials is a sophisticated but essential technology for modern manufacturing. Although these materials may be extremely troublesome, advancements in machine technology, tooling, and cutting procedures enabled us to get over the hurdles. The capability for CNC milling for working with different materials such as titanium Inconel as well as hardened steels has enabled the automotive, aerospace, medical defense, energy, and electronics industries to depend in CNC milling to create parts that meet stringent performance standards.
