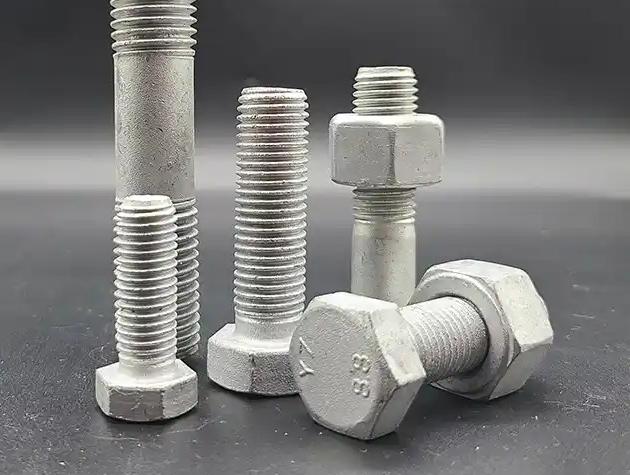

How to Read Bolt Measurements

In a construction site or in a workshop for mechanical work Bolts serve as crucial “connectors” that hold everything together. While they appear normal, their function is crucial in the process of making equipment, fixing machinery, or creating strong structures.

The right size bolt isn’t only about convenience, it will greatly increase the efficiency of installation and, even more important to ensure the stability and security that the construction. However, before you choose the appropriate bolt, it is essential to understand the size of the bolt correctly.

We’ll take readers through how to interpret the bolt measurement and the related information to help you make informed and precise decisions when it comes to real-world applications.

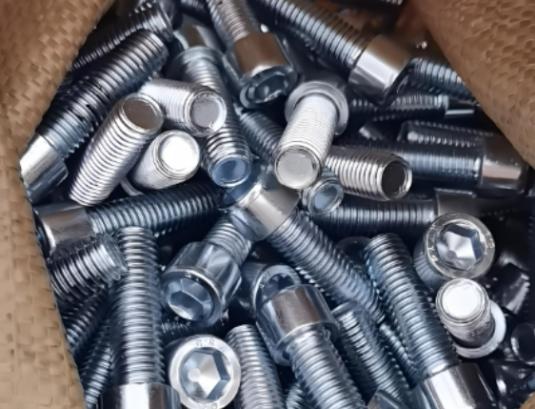

Part 1. Basic Knowledge of Bolt Sizes

Knowing the size of bolts is crucial to select the correct fastener for your needs. The typical bolt size includes the following essential aspects:

Bolt Diameter

It refers to the diameter outside of the threaded part of the bolt commonly referred to as the major diameter. It’s among the most vital measurements because it will determine if the bolt will fit in the threaded hole or nut. Most commonly determined using millimeters (metric) or inches (imperial) The diameter is usually referred to as M10 (10 millimeters) 1/2″ or even 1/2.

Bolt Length

The length of the bolt can be measured by measuring from the top of the head to the top of the bolt. In the case of bolts with Countersunk heads, their length is comprised of the head too. This measurement will determine how deep the bolt will be able to penetrate this material. This is crucial to ensure adequate grip and strength.

Thread Type and Pitch

Bolt threads are fine or coarse, based on the purpose for which they are used. Thread pitch is length of threads (in millimeters in the case of metric bolts) as well as the amount of threads in an inch (TPI) when using imperial bolts. For instance the M10 1.5 1.5 bolt is 10 mm in diameter and the thread pitch is 1.5 millimeters. Selecting the right thread type will ensure an appropriate fitting, load distribution and ease of assembly.

Bolt Head Type

The form that the bolt’s head is can affect the installation process as well as the application capability. The most common types are:

Hex Head: The most common use of this head is in construction and in machinery; it is secured using the use of a socket or wrench.
Round Head:Typically employed in decorative and applications that require low load.
Countersunk (Flat) Head: Sits flush with the surface. It is ideal for smooth surfaces or for areas where the space is not enough.
Socket Head (Allen): Used in precise applications that require a sleek or low-profile appearance is desired.

Part 2. How to Measure Bolt Size?

Achieving accuracy when measuring the dimensions of a bolt is the initial step to selecting the best one for your project. This is a comprehensive guide to measuring bolt dimensions:

Step 1. Measuring Bolt Diameter

Make use of a caliper as well as an outer micrometer for measuring the diameter of the bolt. This is the largest portion of threaded section. They are measured using millimeters (mm) in comparison to Imperial bolts measure in inches.

In order to ensure precision, ensure that the caliper is parallel to the bolt’s direction of rotation during the measurement.

Step 2. Measuring Bolt Length

The length of the bolt is determined from top of the bolt head up to the top of the threaded section. For hex head bolts start measuring from the bottom of the head.

If the bolt has the washer or other attachments the thickness of these attachments should be considered based on the requirements for installation.

Step 3. Measuring Thread Pitch

Thread pitch is the distance between thread peak. For bolts that are metric it is expressed in millimeters. for imperial bolts, it is measured in terms of how many threads are per millimeter (TPI). For instance, in the case of the case of an M8x1.25 bolt “1.25” indicates the thread pitch in millimeters.

Step 4. Identifying Thread Type

The type of thread determines the threading profile of the bolt. The most commonly used types are coarse threads as well as fine threads.

Coarse threads can be used for general-purpose use, whereas fine threads are perfect for tight-fit or high-precision situations. The appearance of the thread and form can help identify the type of thread you are looking for.

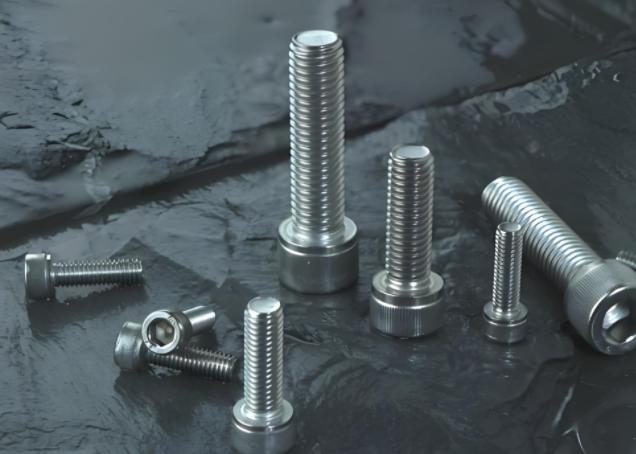

Part 4. How to Choose the Correct Bolt Size?

The right bolt size requires more than making sure the diameter and length are in line. It requires a thorough knowledge of the bolt’s application and its surroundings. Here are the most important aspects to be considered:

1. Load Requirements

The bolt should be strong enough to handle the force or load it is subject to during its usage. This includes:

Tensile force (pulling force)
The strength of the shear (sliding force)
Force of clamping (holding components)

Select a bolt grade and size that will provide a good safety margin in relation to the anticipated load. For structures that are critical look up engineering specifications or speak with an engineer for structural design.

2. Material Type

Bolts are made of various materials, each having its own physical properties and resistance to corrosion:

Carbon Steel: Cost-effective and common and suitable for use in general.
Steel Stainless: Excellent durability against corrosion, ideal for marine and humid environments.
Alloy Steel: High strength, used for high-temperature or heavy-duty applications.

The choice of materials should be based on the requirements for performance and environmental conditions.

3. Environmental Conditions

The environmental exposure of bolts significantly impacts their durability and performance:

Environments with high corrosion (e.g. chemical plants, marine) require bolts that have high resistance to corrosion, such as galvanized or stainless steel coatings.
High-temperature zones may need heat-resistant alloys.
Outdoor installations must be weatherproofed as well as UV exposure and variations in temperature.

Installation Space

Take into consideration the physical limitations of the installation site:

Bolt length: It must be sufficient to ensure the parts are secured but not too long that it causes interference with other components.
Type of Head: Hex heads, countersunk heads or socket heads should be selected based on the tool’s access and the surface clearance.

Limitations in space can also affect the ability of washers and nuts to be utilized effectively.

Part 5. Why Accurately Reading Bolt Sizes is So Important?

In construction, mechanical, and manufacturing bolts aren’t just fasteners. They are vital elements that directly affect the performance, integrity and safety of the whole structure. Knowing and accurately interpreting the sizes of bolts is a vital capability for any engineer technician or maintenance expert.

The reason why this is important:

1. Prevent Installation Errors

A mistake in identifying the correct size of bolts can result in a variety of installation problems like:

Missing Size: If the bolt diameter is too big the bolt won’t be able to fit. if it’s too small, it will not be secured correctly. Both situations impact the alignment of the structure and its strength.
Thread Incompatibility: The wrong type of thread or pitch (e.g. fine vs. coarse, metric vs. fine, the metric type vs. imperial) can result in the thread to strip, jam or locking.
Unstable or Loosely Assembled Assemblies: Improper bolt length or head size can cause insufficient clamping force, which can cause shifts or failures under stress.
Safety Risks: In situations with high vibration or loads choosing the wrong bolt could result in a part being detached or structural collapse. This could create dangerous safety risks.

2. Improve Work Efficiency

Selecting the right bolt size speeds up maintenance and assembly:

Speedier Component Matching: Knowing the exact size can help you choose the right nuts, tools and mating pieces, reducing the time spent on trial and error.
A more Smoother Installation Process: Properly sized bolts can be installed easily, reducing the necessity to make adjustments or adjustments.
A Fewer Reworks: Bolts that are not being used typically require removal and reinstallation which takes time and increases the possibility of causing damage to components.

3. Extend Service Life

The proper bolt size contributes to the longevity of performance and reliability:

Consistent Structural Integrity: A properly-sized bolt provides the correct clamping force, keeping the components in tight contact in time.
Reduced Fatigue and Wear: Proper sizing helps spread loads evenly and reduce localized stress, thus reducing the risk of cracks in fatigue or breaking.
Superior Resistance to Stress from the Environment: Correctly connected bolts and the materials are more resistant to temperatures, corrosion and other external factors.

Final Words

Being able to accurately gauge the bolt size is crucial to making sure that you are able to ensure the safety and security of structures and equipment. By measuring correctly and choosing the appropriate bolts, you will prevent installation mistakes, increase productivity, and prolong the lifespan of your equipment. If you’re uncertain about the dimensions or type of bolt you need it’s an ideal idea to utilize standard measuring tools or consult with a reputable manufacturer.

As a leading manufacturer of bolts, KENENG is dedicated to offering an extensive range of high-quality bolts that meet the requirements of different construction, mechanical industrial, and construction applications. If you have any concerns regarding the selection process We are available to provide you with individualized advice and technical assistance to ensure that your project is run effortlessly and smoothly.
