The Versatility and Applications of CNC Machining Centers: Shaping Precision in Modern Manufacturing

CNC machining centers, the maestros of modern manufacturing, are more than just glorified drill presses. They are the conductors of an intricate orchestra, orchestrating a symphony of precision, speed, and versatility. Unlike the solitary notes of traditional machine tools, these machines weave together a complex tapestry of capabilities, breathing life into intricate designs and exacting specifications.

The versatility of CNC machining centers extends far beyond a singular type of workpiece. They are adept at sculpting a diverse array of components, each demanding a unique approach and showcasing the breadth of their capabilities. Let’s delve into five distinct categories that highlight their mastery:

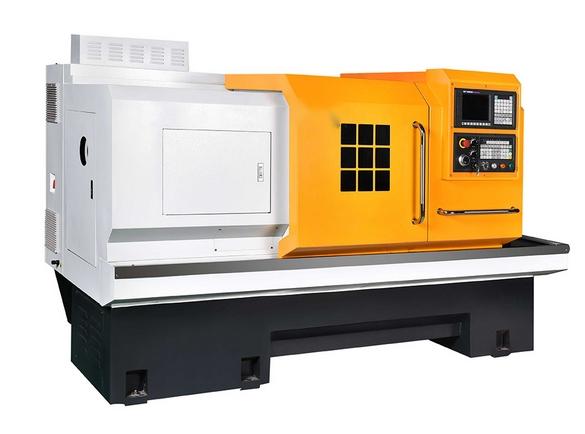

cnc machining center

1. Box-Type Components: Precision in Cubed Form

Imagine intricate enclosures for delicate medical devices, the brawny gear housings of heavy machinery, or the sculpted engine blocks of high-performance vehicles. These box-type components, with their internal cavities measured in hair’s breadths, precise dimensions holding the key to perfect functionality, and multiple hole systems threading veins of intricate pathways, are the workhorses of countless industries.

CNC machining centers tackle these precision puzzles with the confidence of seasoned engineers. For complex, multi-face components, horizontal boring and milling centers take the stage. Their robust armatures wield heavy milling heads, effortlessly traversing the vast expanses of these metal monoliths. Specialized rotary tables waltz the workpiece into perfect alignment, allowing each face to be meticulously sculpted with pinpoint accuracy. Conversely, for smaller, intricate boxes, vertical machining centers step into the spotlight. Their nimble movements and precise spindles dance across the workpiece, deftly drilling and milling intricate features with tolerances measured in microns.

2. Complex Surfaces: Where Art Meets Engineering

The world of aerospace, where supersonic jets pierce the clouds and spacecraft dance among the stars, demands a level of precision that traditional machining often strains to achieve. This is where the artistry of CNC machining centers truly shines. Imagine the intricately curved blades of a jet engine turbine, each angle meticulously sculpted to capture every ounce of thrust. Or picture the graceful profile of a spacecraft’s guidance wheel, its smooth surface ensuring flawless navigation through the cosmos. These are the canvases upon which CNC machining centers express their virtuoso talents.

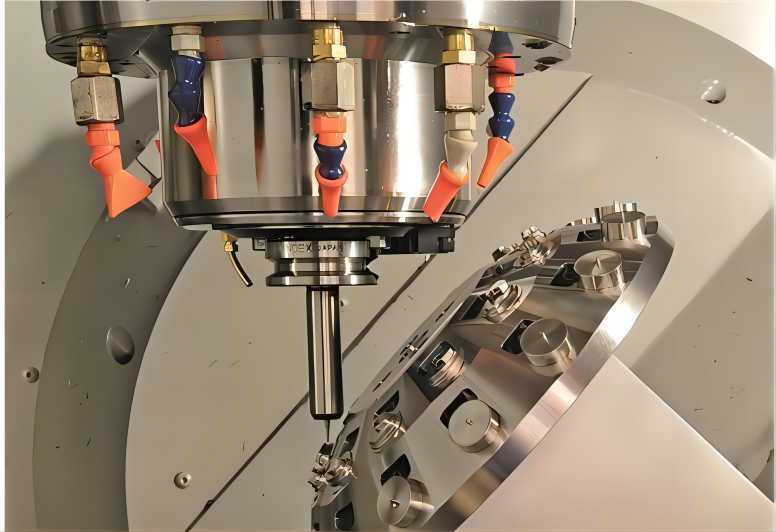

4 and 5 axis CNC machines take center stage, their heads pirouetting and tilting with balletic grace. Complex algorithms guide their movements, meticulously carving and shaping every contour, every radius, every infinitesimal detail. The result? Impellers that sing with aerodynamic efficiency, guide wheels that whisper silent precision, and propellers that propel with unmatched power – each a testament to the harmonious blend of art and engineering that CNC machining embodies.

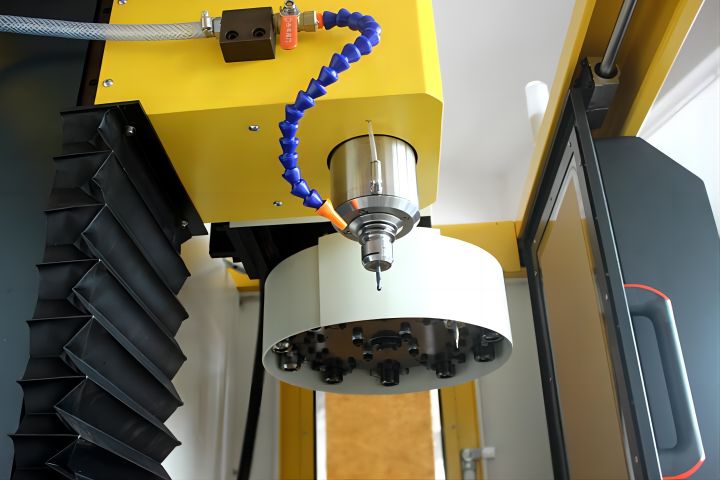

5 axis CNC machining center

3. Irregular Parts: Taming the Unruly

Some components defy easy categorization. They are the renegades of the manufacturing world, boasting shapes as unpredictable as a lightning bolt and demanding a mixed-media approach that would leave a traditional machinist scratching their head. Think of a biomimetic prosthetic limb, its organic curves mimicking the human form, or a futuristic architectural panel, its intricate latticework defying the laws of gravity. These are the challenges that CNC machining centers relish, the enigmas they were born to solve.

Rational process planning becomes the guiding light. One- or two-setup strategies minimize re-clamping and ensure perfect alignment. Specialized tools like ball nose endmills and five-axis heads become the brushes and chisels, sculpting the unruly forms with delicate precision. Drilling seamlessly transitions to milling, then to grinding, each movement guided by the machine’s unwavering digital brain. The result? The once-unruly part emerges, tamed and transformed, its intricate form a testament to the adaptability and ingenuity of CNC machining.

4. Disc-Sleeve-Plate Components: Circular Symphonies

Flanged shaft sleeves, intricately holed plates, and curved disc-sleeve components – these are the waltzing partners of CNC machining centers. Imagine a flanged shaft sleeve, its smooth, cylindrical form adorned with precisely spaced keyways, waiting to be mated with its perfect counterpart. Vertical machining centers, their spindles spinning like tireless conductors, take the lead. Delicate touches of their endmills etch the keyways with unwavering accuracy, ensuring a seamless, harmonious union.

Meanwhile, for components boasting a plethora of radial holes, horizontal machining centers step up to the podium. Their robust arms swing wide, wielding drills that pierce through the metal with the confidence of a seasoned marksman. Each hole, perfectly aligned and equidistant, becomes a note in the symphony of precision. Whether waltzing with vertical elegance or drilling with horizontal power, CNC machining centers ensure these disc-sleeve-plate components move in perfect harmony.

5. Special Processing: Beyond the Ordinary

The repertoire of CNC machining centers doesn’t stop at the conventional ballet of drilling, milling, and turning. With specialized fixtures and tools, they become maestros of the extraordinary. Imagine a delicate inscription etched onto the surface of a commemorative plaque, the letters as crisp and precise as if carved by a master calligrapher. Or picture the surface of a mold hardened by a high-frequency spark, its resilience a testament to the machine’s hidden power. These are just glimpses into the vast potential of CNC machining beyond the ordinary.

Hardscaping with diamond-tipped tools shapes intricate curves onto metal surfaces, transforming them into miniature sculptures. Grinding heads, spinning at dizzying speeds, polish and refine, leaving behind surfaces as smooth as a mirror. And for those seeking a touch of the ethereal, laser engraving paints delicate patterns onto metal with the subtlety of a brushstroke. With every specialized process, CNC machining centers

6. The Final Curtain Call: A Future Sculpted in Precision

In conclusion, CNC machining centers are not mere machines; they are transformative forces in the world of manufacturing. Their versatility and precision allow them to tackle a vast array of workpieces, from the mundane to the breathtakingly complex. As technology continues to evolve, so too will their capabilities, pushing the boundaries of what’s possible and shaping a future where precision reigns supreme.

However, it’s crucial to remember that these maestros of metal require careful handling. Their substantial price tag demands proper maintenance and skilled operators to truly unlock their potential. But when these elements come together, CNC machining centers become more than just tools; they become partners in innovation, shaping the world around us with every meticulous cut and polished curve.
