What are Key Innovations in Bolt Manufacturing?

Bolts, crucial in almost all mechanical and structural systems, are evolving due to the demands of industry for higher performance, efficiency, precision, and sustainability. Modern industry requirements for bolts are being addressed through innovations in bolt manufacturing which are driven by new advancements in manufacturing technologies, materials, and digitalization.

Why Bolt Manufacturing is Important

The quality and accuracy that bolts directly impact the durability, safety, and performance of the equipment and structures they join. A well-constructed bolt will conform to specific standards of durability as well as corrosion resistance and perform well in harsh conditions. Furthermore efficient manufacturing processes reduce costs for production while also ensuring reliability and reducing the chance of failure. A high-quality bolt manufacturing process is essential in ensuring the safety and integrity of infrastructure and systems that are critical to the operation.

Traditional Bolt Manufacturing Processes

This graph illustrates the main techniques, advantages and drawbacks of the traditional manufacturing techniques for bolts that have been extensively employed in various industries.

Manufacturing Process	Description	Key Features	Limitations

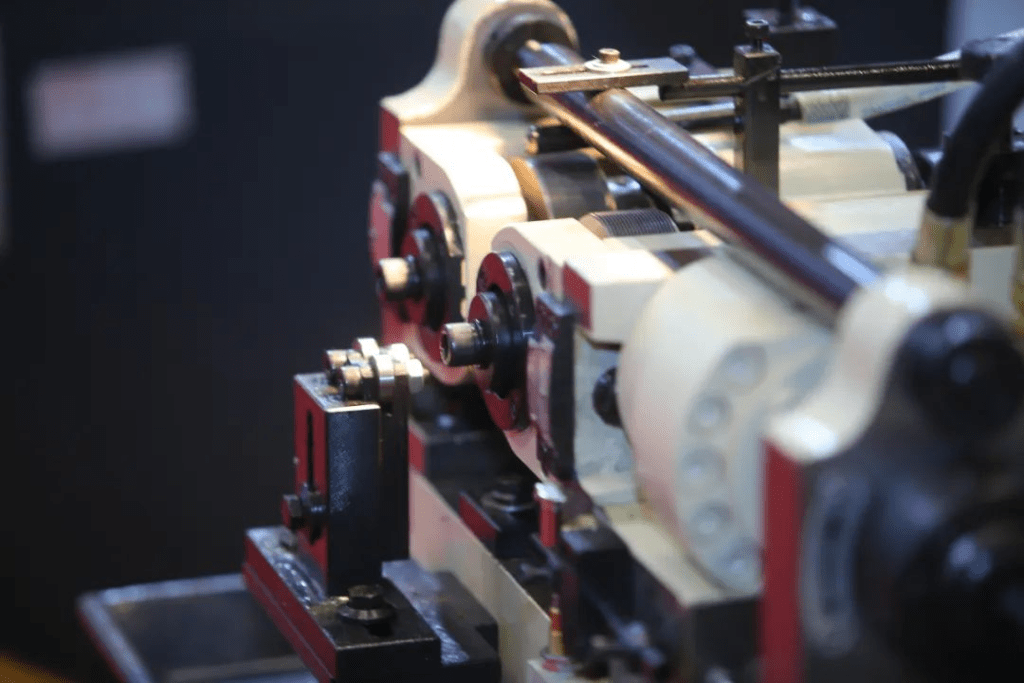

Cold Heading	The process by which wire is fed into a machine, and is then shaped into a bolt without heating.	Cost-effective and quick High-volume production – Precise dimensional control	– Restricted to shapes with simpler forms It can cause internal stress
Hot Forging	Metal is heated up to a high temperature prior to shaping it using a die.	– Improved flow of materials Better strength properties	– Energy-intensive It is limited to certain metals – Complex geometries challenging
Machining	Utilizing cutting tools to form bolts out of solid metal blanks.	High precision – Suitable for elaborate designs	– Production rate is slow High Material Waste – Expensive
Thread Rolling	Making threads roll on the surface of bolts with cylindrical dies.	Produces solid, uniform threads High precision	Threaded designs are limited to threaded designs This is not a suitable option to bolts that are not threaded.
Casting	Molten metal is put into a mold to create the shape of a bolt.	– It is suitable for geometries with complex shapes. Economic for production on a large scale.	lower mechanical strength – Limited surface finish quality
Heat Treatment	It is then heated then it is cooled (quenched) to increase the toughness or ductility.	– Improves mechanical properties – Designed to fit specific needs	– Requires precise control – Energy-intensive
Plating and Coating	The thin coating of a different substance (e.g. zinc, zinc nickel,) is sprayed on the surface of the bolt.	– Resistance to corrosion – Aesthetic finish	The coatings could be worn off in time – Environmental impacts of some coatings

The Latest Advancements in Bolt Manufacturing

1. Advanced Materials for Enhanced Performance

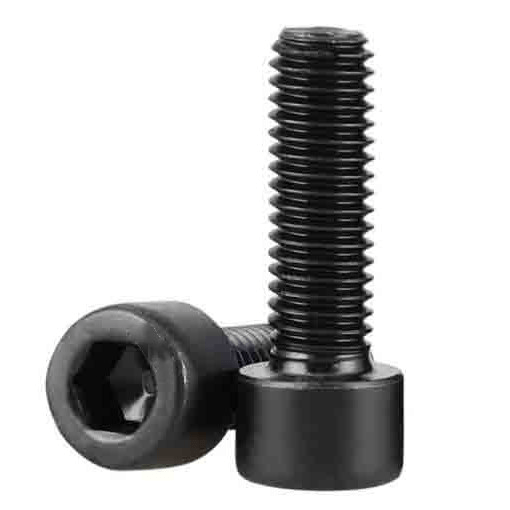

In recent times, the materials used to manufacture bolts have changed to accommodate increasingly demanding uses. Traditional carbon steel bolts and stainless steel bolts are supplemented by high-performance alloys as well as composite materials that offer improved resistance to wear, corrosion and extreme temperatures.

Here is a chart summarizing key advanced materials in bolt manufacturing , their properties benefits and common applications.

Material	Key Properties	Performance Benefits	Common Applications
Alloy Steel (e.g., 4140, 4340)	High tensile force, good ductility, and heat-treatable	Excellent endurance and resistance to impact	Automotive, heavy equipment, high-load machinery

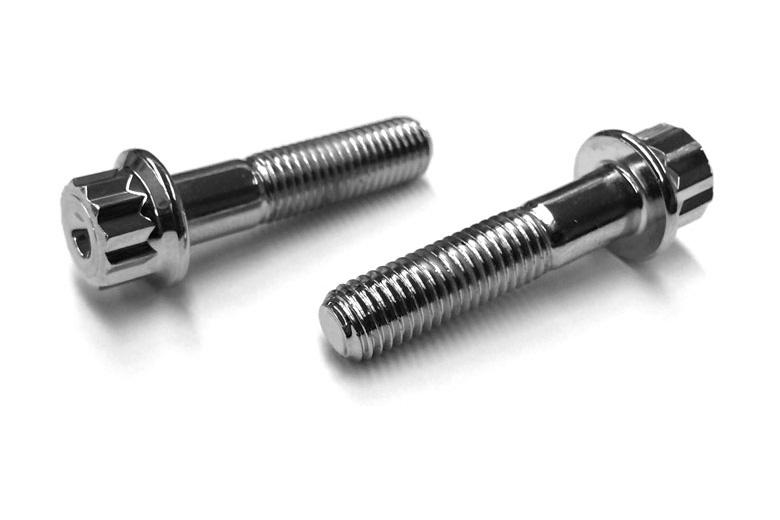

Stainless Steel (e.g., 304, 316, 17-4 PH)	Durable, corrosion resistant, non-magnetic (in certain grades) and heat-treatable	Long service life even in harsh environments	Chemical processing, marine food industry

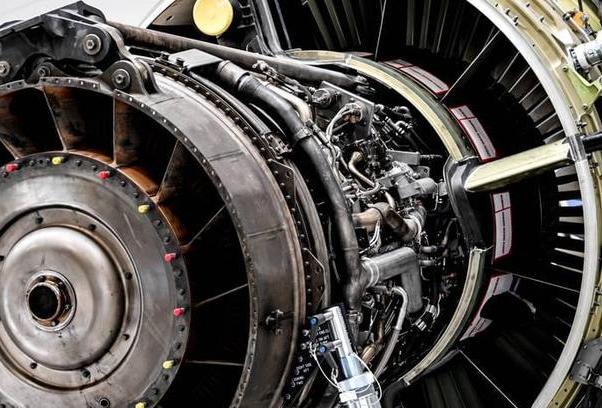

Titanium Alloys (e.g., Ti-6Al-4V)	High strength-to-weight ratio, resistance to corrosion resistant to fatigue	Perfect for corrosion-prone, weight-sensitive environments. Ideal for heavy-sensitive, corrosion-prone	Aerospace, motorsport, high-performance automotive
Inconel (Nickel-Chromium Alloys)	Outstanding resistance to heat, oxidation and corrosion resistance	Maintains its integrity even under extreme temperatures and pressure	Nuclear power, gas turbines and aerospace
Beryllium Copper	Conductivity to heat and electricity non-sparking and anti-corrosion	Moderate fatigue resistance, with outstanding electrical properties	Electronics, aerospace, hazardous environments
Maraging Steel	Extremely strong, great durability, and age-hardenable	Excellent resistance to fatigue and fracture for precise applications	Airspace and military and specialized tooling
Hastelloy (Nickel-Molybdenum Alloys)	Astonishing chemical resistance, especially to acids and oxidizers that are strong	Strengthens in tough chemical environments	Chemical reactors Marine structures

2. Additive Manufacturing and 3D Printing

A major and revolutionary developments in the manufacturing of bolts is the application technology known as additive manufacturing (3D printing). This technology allows for more design flexibility, speedier prototyping and manufacturing processes.

Complex Geometries: 3D printing is a method the design of bolts with intricate designs or internal features that are impossible or difficult to achieve using traditional machining techniques. For instance, bolts with hollow shafts or features are now designed to decrease weight or increase strength in certain areas.
Rapid Prototyping: Additive manufacturing can speed up the prototyping process, which allows companies to test bolt designs in a short time. This is especially beneficial in areas like automotive and aerospace that require testing, iteration and refinement. is essential to ensure that the product meets high-performance standards.
Customization: By using the use of 3D printers, bolts are customized to specific needs which allows for custom solutions that guarantee the perfect fitting. This creates opportunities to create highly specialized bolts that are suited to niche markets or for unique industrial applications.

3. Automation and Robotics in Bolt Production

The application of robotics and automation in bolt manufacturing has enhanced productivity and quality. Sorting, assembly, and inspection are done by automated systems with little human intervention, overall improvement in accuracy, and improved efficiency.

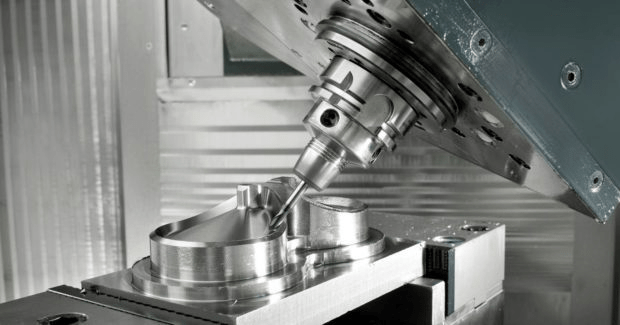

CNC Machining and Precision Forging: CNC machining process and precision forging have transformed the production of bolts. The technology enables accurate and uniform cutting and shaping of bolts, with quality control and accurate tolerances.
Robotic Inspection and Quality Control: To ensure that the product is of the highest quality robotic systems are utilized to inspect bolts throughout as well after the production. They can perform non-destructive tests, determine the bolt’s dimensions and also identify imperfections on the surface with high accuracy. This improves the reliability of products particularly in critical situations in which failing isn’t an possibility.
Scalability of Mass Production: The automation has enabled it to be much easier to increase production without compromising quality. Since the demand for high-performance bolts grows across different industries, producers can manufacture large quantities of bolts with little human intervention, which is reducing costs and speeding up the speed of turnaround.

4. Sustainability and Eco-Friendly Manufacturing

As companies grow more environmentally aware, there is an emphasis on sustainable ways of manufacturing bolts. From recycling materials to saving energy, manufacturers are trying to play their green parts.

Recycled Materials: Utilization of recycled aluminum and steel to manufacture bolts is gaining popularity among the manufacturers. Metal recycling consumes less energy compared to the production of raw materials, so the carbon footprint during the production of bolts is minimized.
Eco-friendly Coatings: In addition to recycling material, bolt manufacturers are also looking into green coatings and finishes. Conventional coatings and finishes can be dangerous since they could use pollutants, but new technology is leaning towards greener, non-toxic, water-based and eco-friendly galvanizing alternatives.
Energy–efficient Production Techniques: The energy consumption on bolt manufacturing is minimized from the use of new innovative techniques and modern production methods. Automated production lines as well as advanced machines reduce the use of energy and some companies are using renewable energy sources like wind and solar power to further decrease their environmental footprint.

5. Smart Bolts and IoT Integration

The idea of “smart” bolts means that bolts equipped with sensors and communication capabilities, which is growing in popularity. They’re integrated with IoT (Internet of Things) systems to give live data about their performance.

Structural Health Monitoring: Smart bolts that are equipped with strain gauges and temperature sensors can track strain, stress and temperatures in real-time. They provide vital data to stop catastrophic failures in high risk applications such as bridges heavy machinery, aerospace, and so on in which knowing the state of the fastening system is essential.
Predictive Maintenance: By using smart bolts in conjunction with IoT platforms, manufacturers are able to monitor the state of the bolts and determine when they should replace or tightened. This technology can be used to support the use of predictive maintenance techniques, reducing time to repair and extending the life of equipment and infrastructure.
Remote Monitoring: Smart bolts are able to be monitored remotely which allows personnel from maintenance and engineering teams to evaluate the health on critical components without needing physically inspect every bolt. This helps reduce maintenance costs and improves safety by allowing earlier detection of issues before they turn into major issues.

6. Advanced Coatings and Surface Treatments

New coatings, surface treatment and other innovations are used on bolts to increase their resistance to corrosion, wear and environmental influences. These coatings extend the life and efficiency of bolts even in difficult conditions.

Here is a chart outlines various bolt coating types , their properties as well as their benefits:

Coating/Surface Treatment	Key Properties	Advantages
Zinc Plating (Electro-galvanizing)	Cost-effective, corrosion resistance silver-colored appearance	It protects against rust even in moderate environments
Hot-Dip Galvanizing	Thin zinc layer, with sacrificial protection matte gray-colored finish	Long-term resistance to corrosion, particularly outdoors in environments
Phosphate Coating (Zinc/ Manganese)	Creates a porous foundation for paints and oils, slight resistance to corrosion	Reduces friction, assists in breaking-in and wear resistance
Dacromet(r) / Geomet(r) Coating	Water-based zinc-aluminum flake coating	Superior corrosion resistance, no hydrogen embrittlement

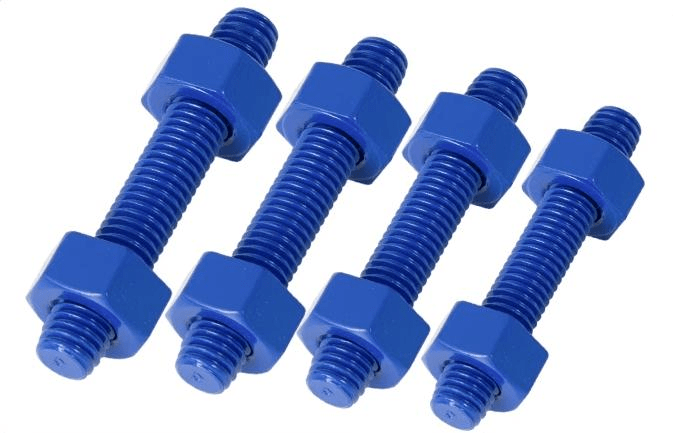

PTFE (Teflon) Coating	Low friction chemical resistance Non-stick	Great for reducing the variability of torque-tension
Black Oxide	The appearance of a black-colored finish	Enhances lubricity, reduces galling
Cadmium Plating	Excellent resistance to corrosion, lubricity and Lubricity	Can withstand salty environments, but environmental restrictions
Anodizing (for aluminum bolts)	Electrochemical passivation, color coding	Improves the hardness of the surface and increases the resistance to corrosion
PVD Coating (e.g., TiN, CrN)	Ultra-thin, hard-cement-like finish	Improves fatigue, wear, and resistance to oxidation

7. Faster and More Efficient Production Cycles

With additive manufacturing, automation manufacturing, and robotics technology, bolt manufacturers can now significantly reduce production time. Operations that took weeks or days to complete are now completed in hours or minutes. This improved efficiency gives manufacturers an opportunity to react faster to market demand, making them competitive in markets where speed-to-market is an essential consideration.

Summary

The latest innovations in bolt manufacturing provide better performance, efficiency and long-term sustainability. In addition to advanced components, automated 3D printing, automation, and advanced technologies, these advancements transform the process of making bolts and used in various industries.
