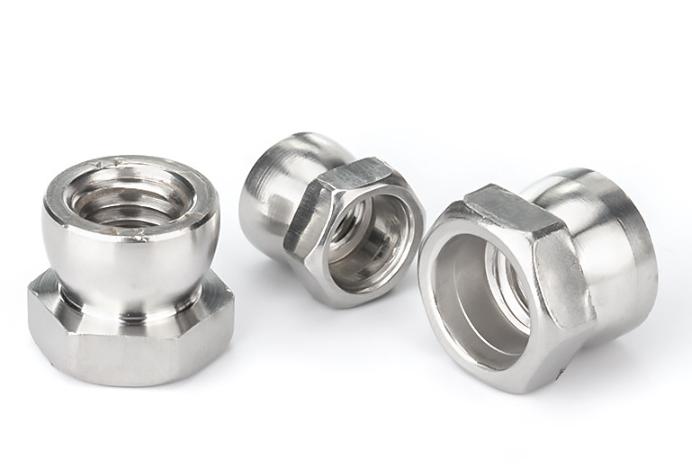

Breakaway Shear Security Nuts
Specification of Breakaway Shear Security Nuts
| Specification | Hexagonal Opposite Side | Hexagonal Thickness | Round Cap Diameter | Total Thickness | Pitch |
| M6 | 9.7 | 3.5-3.7 | 9.4-9.7 | 9.8-10 | 1 |
| M8 | 12.8 | 4.3-4.5 | 12.4-12.6 | 11.8-12 | 1.25 |
| M10 | 16.7 | 5.7-6.0 | 15.9-16.1 | 14.8-15 | 1.5 |
| M12 | 18.7 | 6.2-6.6 | 18.4-18.6 | 16-16.1 | 1.75 |
Application of Breakaway Shear Security Nuts
Breakaway Shear Security Nuts are suitable for applications where removal of a fixture is not intended and where prevention of tampering is essential. They are typically used in public areas (schools, hospitals, etc) and within the fencing industry, e.g. for security perimeter fencing, and the automotive industry. Can be used anywhere where a permanent fixing is needed.
Advantage of Breakaway Shear Security Nuts
1, One of the best 1-way security solutions available
2, Breakaway hex nut and cone-shaped permanent nut
3, Suitable for high torque applications
4, Vibration resistant
5, Tightened using a standard spanner or socket
