Compression Springs: Factors Affecting Performance and Durability

Compression springs are essential components in various mechanical systems, providing the necessary force to absorb energy, maintain tension, and support loads. Their ability to withstand pressure without deforming or failing is crucial for ensuring the reliability and safety of these systems. This article delves into the world of compression springs, exploring the factors that influence their performance and durability.

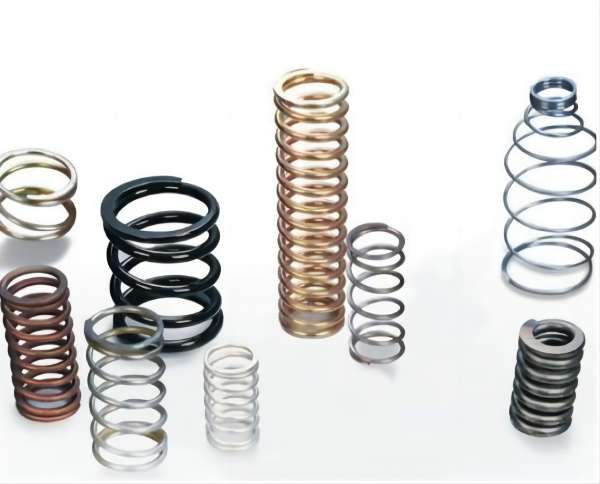

different types of compression springs

Factors Influencing the Maximum Load Capacity of Compression Springs

The maximum load a compression spring can withstand is determined by a combination of factors. These factors include:

  • Material: The material properties of the spring wire significantly impact its load capacity. High-strength steel alloys are typically used for springs designed to handle substantial loads.
  • Wire Diameter: Springs with a thicker wire diameter can naturally withstand higher loads compared to those with a thinner wire diameter. This is because a thicker wire has a larger cross-sectional area, allowing it to distribute the applied force more effectively.
  • Number of Coils: The number of coils in a spring also influences its load capacity. A spring with more coils will generally have a higher load capacity than a spring with fewer coils, all other factors being equal. This is because the additional coils distribute the load over a greater length.
  • Spring Dimensions: The overall dimensions of the spring, including its free length and compressed length, also play a role. A spring with a larger overall size can typically accommodate higher loads.
  • Working Environment: The environmental conditions in which the spring operates can affect its load capacity. Factors such as temperature, humidity, and exposure to corrosive elements can influence the material properties and overall performance of the spring.

The Role of Spring Constant in Maximum Load Capacity

The spring constant, denoted by the symbol “k”, is a crucial parameter that characterizes the stiffness of a compression spring. It represents the force required to compress the spring by a unit distance. Springs with a higher spring constant are stiffer and require a greater force to compress them to the same degree compared to springs with a lower spring constant.

According to Hooke’s Law, the force (F) exerted by a compression spring is directly proportional to both the spring constant (k) and the amount of compression (x). This relationship can be expressed by the formula:

F = k * x

Therefore, springs with a higher spring constant will require a larger force (F) to reach their maximum compression point, where they risk permanent deformation or failure. In simpler terms, springs with a higher spring constant can withstand a greater load before reaching their breaking point.

When selecting a compression spring for a specific application, engineers consider the required load capacity and choose a spring with a spring constant that ensures it will not be compressed beyond its safe limits during operation.

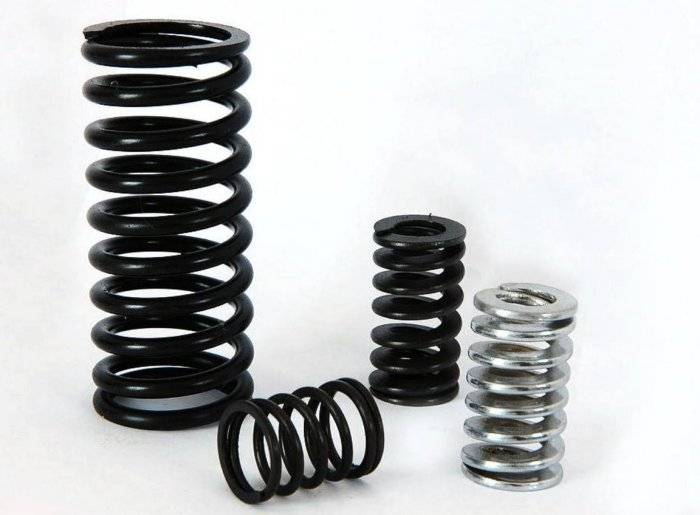

compression springs

The Importance of Safety Factor in Compression Spring Design

The safety factor is a critical concept in compression spring design. It is a ratio between the maximum force the spring can theoretically withstand and the actual force it will experience under normal operating conditions. A higher safety factor indicates a greater margin of safety, ensuring the spring does not fail even if it encounters unexpected loads.

The selection of an appropriate safety factor depends on several factors, including:

  • Working Environment: Springs operating in harsh environments with shock loads or vibrations may require a higher safety factor to account for these unpredictable stresses.
  • Load Type: Statically loaded springs (constant load) can typically have a lower safety factor compared to dynamically loaded springs (fluctuating load) that experience stress variations.
  • Material Properties: The fatigue characteristics of the spring material influence the safety factor selection. Materials with lower fatigue resistance may necessitate a higher safety factor to ensure long-term durability.
  • Desired Service Life: Springs designed for a shorter lifespan may have a lower safety factor compared to those intended for extended use.

Current recommendations suggest a minimum safety factor of 2.5 for compression springs to achieve a service life of 1 million cycles. In some cases, springs operating in corrosive environments, high temperatures, or under shock loads may require a significantly higher safety factor. The specific safety factor is determined based on the application and the fatigue data of the chosen spring material.

What Types of Compression Springs are the Most Durable?

When seeking the most durable compression springs, several factors come into play:

  • Material: Oil-quenched and tempered alloy spring steel wires, such as 60Si2Mn and 55CrSi, are popular choices due to their excellent fatigue resistance which allows them to withstand repeated loading and unloading cycles without succumbing to fatigue failure. Additionally, titanium alloy springs are gaining traction in applications demanding exceptional durability due to their high strength-to-weight ratio, excellent corrosion resistance, and outstanding fatigue performance.
  • Design and Manufacturing: Optimizing the spring design plays a crucial role in enhancing durability. This includes carefully selecting key parameters such as wire diameter, number of coils, and spring shape. Utilizing high-strength materials, maintaining tight manufacturing tolerances, and employing advanced manufacturing techniques further contribute to a more durable spring. For instance, high-life compression springs often undergo rigorous design calculations to determine critical parameters. They are manufactured using high-quality, wear-resistant materials and undergo compression testing to validate their expected lifespan.
  • Application Requirements: The specific application dictates the most suitable spring type. While oil-quenched and tempered alloy spring steel offers a compelling balance of properties for many applications, titanium may be preferred for situations demanding a lightweight solution with exceptional corrosion resistance, such as in aerospace or medical devices.

Why Choose Oil-Quenched and Tempered Alloy Wire for Making Compression Springs?

Oil-quenched and tempered alloy spring steel wires offer a multitude of advantages over traditional spring steel wires, making them a popular choice for demanding applications:

  • High Strength and High Elasticity: The oil-quenching and tempering process significantly enhances the strength and elasticity of the spring wire. This allows the spring to withstand significant loads while maintaining good recovery characteristics.
  • Fatigue Resistance: Compared to plain carbon steel wires, oil-quenched and tempered spring steel exhibits superior resistance to fatigue. This translates to a longer lifespan under repeated loading and unloading cycles, making them ideal for applications involving dynamic loads.
  • Corrosion Resistance: Oil-quenched and tempered spring steel wires often demonstrate improved corrosion resistance compared to plain carbon steel. This characteristic is particularly beneficial in environments with moisture or exposure to corrosive elements.
  • Adjustability: By carefully controlling the oil-quenching and tempering temperatures and durations, manufacturers can tailor the spring steel’s hardness, toughness, and elasticity to meet specific application requirements.
  • Machinability: Oil-quenched and tempered spring steel wires generally possess good machinability, allowing them to be formed, bent, stretched, or cold-forged into various shapes and sizes for diverse spring configurations.
  • Reduced Post-Processing: Unlike some other spring materials, oil-quenched and tempered spring steel wires can be used directly after the heat treatment process, eliminating the need for additional processing steps, which can streamline production and reduce costs.
  • Improved Fatigue Life: Compared to traditional cold-drawn spring steel wires, oil-quenched and tempered varieties offer a significant improvement in fatigue life, sometimes exceeding traditional options by a factor of ten or more.
  • Enhanced Uniformity of Mechanical Properties: The oil-quenching and tempering process contributes to a more uniform distribution of mechanical properties throughout the spring wire. This reduces the risk of surface decarburization, leading to a more consistent and predictable performance across the entire spring.

These advantages make oil-quenched and tempered alloy spring steel wires a highly competitive choice for various applications, including automotive suspension systems, high-pressure valves, and precision machinery components.

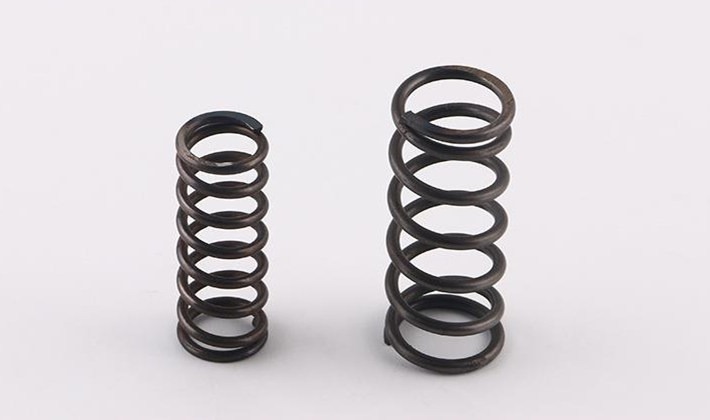

compression springs

Measures to Enhance Durability in Compression Springs

Designing and manufacturing compression springs with exceptional durability requires specific measures:

  • Deformation Heat Treatment: Utilizing high-temperature, medium-temperature, or low-temperature deformation heat treatment processes can significantly improve the strength and toughness of the spring material, leading to a longer lifespan.
  • Isothermal Quenching: For springs with small diameters or those made from materials with good hardenability, isothermal quenching offers a method to minimize internal stress variations. This translates to improved strength and toughness for the spring.
  • Low-Temperature Carbonitriding: Combining tempering with a low-temperature carbonitriding (soft nitriding) process can significantly enhance the fatigue life and corrosion resistance of the spring.
  • Spring Relaxation Treatment: By pre-loading and heating the spring at a temperature exceeding its operating temperature, spring relaxation treatment helps minimize permanent deformation caused by stress relaxation. This contributes to improved spring accuracy and stability throughout its service life.
  • Shot Peening: This process involves bombarding the spring surface with small metal balls, which improves surface quality, increases surface strength, and induces a compressive stress state on the surface. These factors contribute to enhanced fatigue strength and a longer lifespan for the spring.
  • Material Selection: Selecting the most appropriate spring material based on the application environment is paramount for durability. High-quality spring steel grades or other alloy materials often provide superior performance compared to standard options.
  • Design Optimization: Optimizing the spring’s geometry during the design phase, including factors such as wire diameter, number of coils, and overall shape, can significantly improve its load-carrying capacity and fatigue life.

By implementing these measures, manufacturers can create high-life compression springs capable of withstanding demanding operating conditions and delivering reliable performance over extended service periods.

Conclusion

Understanding the factors that influence the pressure capacity of compression springs is essential for designing reliable and durable springs. By considering material properties, geometric dimensions, the elastic coefficient, and the working environment, engineers can ensure the springs meet the application requirements and operate safely within their pressure capacity. Advanced manufacturing techniques, such as heat treatment and surface treatment, further enhance the performance and durability of compression springs. By carefully selecting materials, optimizing design parameters, and incorporating safety factors, engineers can create high-quality compression springs that provide reliable performance and longevity in various mechanical systems.
