Cost-effective Stamping Die Design for Low-volume Production
Stamping dies are crucial for metal forming, which are used for cutting, bending and shaping sheet metal into desired custom stamping parts. Although high-volume production typically requires complex multi-stage dies, low-volume production requires to balance cost, lead time, and efficiency. Stamping die design for low-volume production requires optimizing simplicity, flexibility and cost-effectiveness while maintaining part quality.
Table of Contents
Challenges in Stamping Die Design for Low-volume Production
| Challenge | Description | Potential Impact |
| Balancing Cost and Quality | The limited production capacity means it is difficult to afford the cost of expensive premium, high-quality tooling materials. | More expensive per component when over-engineered. Less durability in the event of not properly engineered. |
| Shorter Tool Life Requirements | Wear and tear on the tool must be acceptable for the size of the run, but not too much to save money. | Wear and tear can lead to inaccurate dimensions or unplanned downtime. |
| Limited Tolerance Control | Budgetary constraints can limit precision machining of all of the features. | Quality inconsistent and possible assembly problems. |
| Flexibility for Design Changes | Low-volume projects typically involve the development of parts designs. | The frequency of modifications can add to the lead time and cost of rework. |
| Reduced Investment in Automation | Complex automation might not be economically viable for smaller runs. | More manual processes, increasing dependence on labor. |
| Material Selection Trade-offs | Softer materials for dies are more affordable but they wear out faster, particularly for hard stock. | Costs for maintenance or replacement are higher during the mid-term. |
| Lead Time Pressures | Customers typically anticipate faster delivery when they purchase small runs. | There is a limited amount of time available for thorough testing of dies and optimizing. |
| Limited Spare Parts Stock | In the event that you have spare punches or inserts, it might not be financially efficient. | A longer downtime when replacement parts are required. |

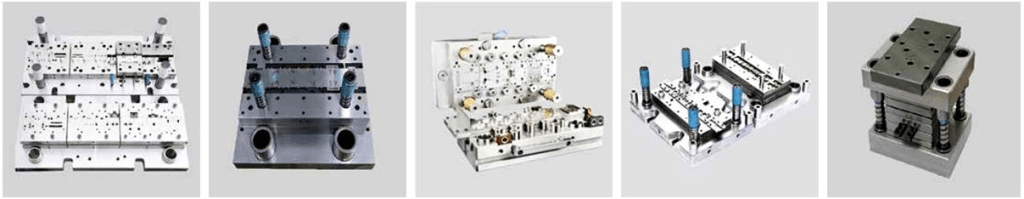

Choosing the Right Stamping Die Type for Low-volume Production
| Die Type | Description | Advantages | Limitations | Best-suited Situations |

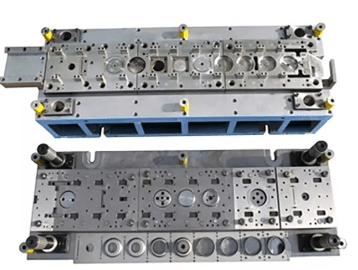

| Single-Station Die | Performs one action (e.g. or making a blank, piercing or creating) per stroke of the press | Lowest cost, simple design, quick to build | Production rates are slower, requiring more production setups | Simple shapes for parts, extremely short runs |
| Compound Die | Does two or more tasks (e.g. punching, or blanking) in a single motion | Better efficiency than single-station Maintains good accuracy | More complicated and expensive than a single-station | Medium-complexity components that require an exact alignment |

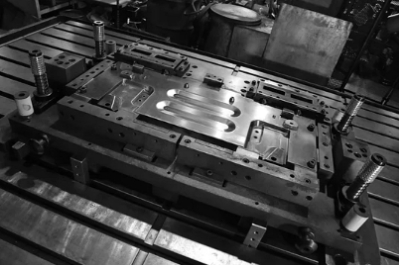

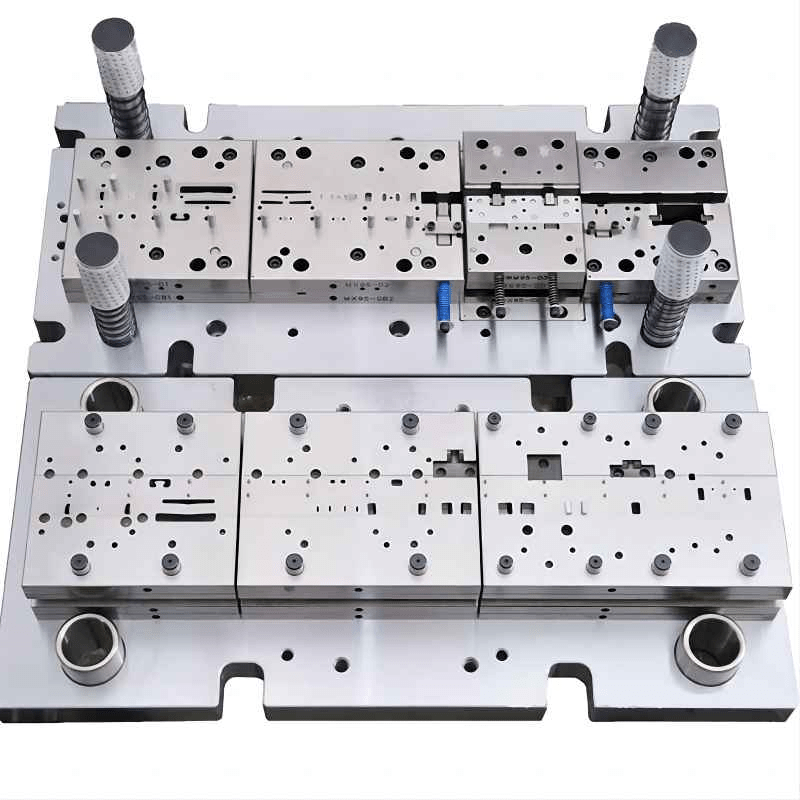

| Progressive Die | Different stations carry out different tasks when the strip is moving through | High efficiency, consistent quality | More expensive to build, less cost-effective for short runs | If the complexity of the component and run lengths justify efficiency gains, |
| Soft Tooling Die | Made of aluminum, mild steel, or other non-hardened material | Extremely fast and cost-effective manufacturing, with easy modification | Limited durability, shorter tool life | Prototyping and pre-production samples |
| Modular Die | Utilizes interchangeable inserts and sections for various parts | Flexible, high-quality, and reusable for a variety of projects | The design was initially priced slightly higher | Projects that are evolving in design or multiple parts |
| Prototype Die | Simple, typically made of temporary materials or with parts of features | It is extremely fast to make Tests form and fit | Not appropriate for production in full | Verification of design prior to final tooling |
Key Stamping Die Design Strategies for Low-volume Production
1. Prioritizing Flexible Tooling Concepts
In low-volume production environments, stamping die design evolves rapidly, particularly during prototyping or customized manufacturing. This makes flexibility an essential component of design. Modular tooling systems, in which inserts and punch sets that can be interchanged can be replaced without re-designing the entire die, enable makers to allow for modifications to parts without causing any disruption. Flexible features, like stops or guide blocks allow that the die can create different versions of a piece which extends its utility beyond one project.
2. Selecting Materials That Match Production Needs
Although high-volume production typically justifies investing in tool steels that are hardened Low-volume productions benefit from cost-effective options for materials. The main idea is to select materials that have enough wear resistance to production without increasing costs unnecessary.
This chart provides the material that is used in stamping dies for production with low volumes.
| Material | Characteristics | Advantages | Limitations | Applications |
| Mild Steel | Soft, easy to machine | Very low cost, fast fabrication | Wears out quickly on hard materials. It has a short time to wear. | Simple dies that can be used for very short runs, or soft materials |
| Pre-Hardened Tool Steel (e.g., P20) | Moderate hardness, good machinability | Wear resistance is balanced and costs are also accounted for. | Not suitable for abrasive operations. | Medium-length runs, forming dies |

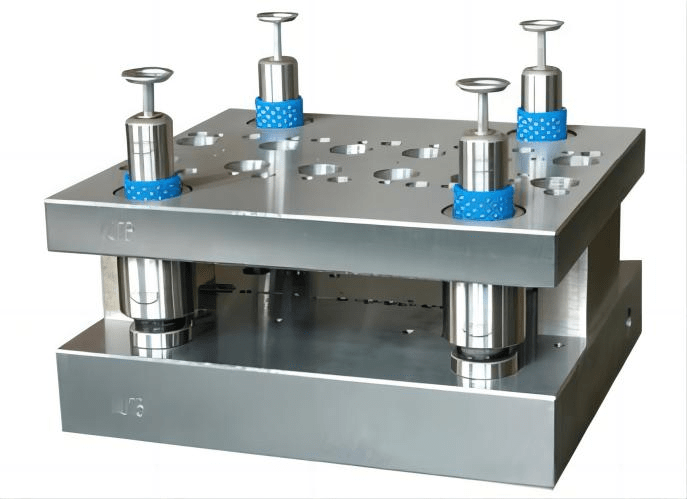

| Aluminum Alloys | Lightweight, corrosion-resistant | Easy to modify, quick machining | Wear resistance is limited, not suitable recommended for high-force applications. | Prototype dies, soft material stamping |
| Hardened Tool Steel (e.g., D2, SKD11) | High-quality toughness and wear resistance | A long tool’s life span, ideal for Abrasive materials | More expensive, more lead time | Precision parts that have more precise tolerances |
| Polyurethane | Flexible, non-marking surface | Absorbs shock, prevents scratching | Limitation in durability, not suitable intended for cutting edges | Forming pads, stripper plates |
| Composite Materials | Engineered fiber reinforced resins | Lightweight, non-marking, corrosion-resistant | Metals have lower strength than steels. | Specialized bending and forming procedures |

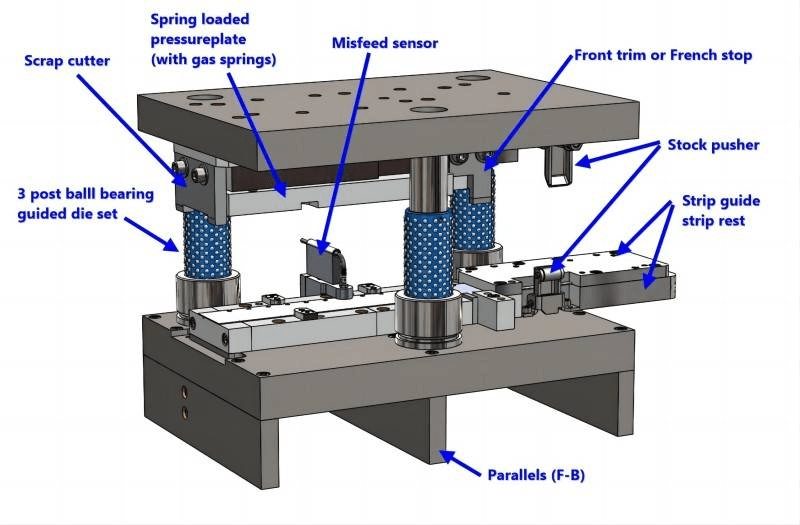

3. Simplifying Die Construction for Speed and Affordability
Production that is low-volume usually has shorter lead times, so that die design and construction should ensure that the process is as effective as it can be. Die structures that are simplified, such as flat plates, standard punches, and readily accessible components can significantly reduce construction time. By removing complex mechanisms, such as scrap removal cams or automated scrap in the event of a need can further cut costs and assembly work. In many instances, components of the initial die can be cut with a laser or waterjet prior to final machining, which allows to speed up turnaround time and ensuring precision.
4. Managing Tolerances using a Targeted Approach
Precision is essential in small production runs, however the cost of maintaining very exact tolerances for all features is often prohibitive. One option is to focus on key dimensions that directly impact the assembly process and its function while also allowing slightly more tolerances for areas that are not critical to. This specificity ensures the highest quality of service while ensuring that tooling and inspection costs in check. When forming the need to compensate for springback of material is crucial, since there are less opportunities for adjustments iteratively once production has begun.
5. Supporting Rapid Iteration and Testing
The capability to rapidly design, test and modify is one of the benefits of manufacturing in low-volume. Designers can include features that make it easy to alter, like removable inserts, or forming surfaces that can be adjusted. In certain instances, 3D-printed parts or soft tooling may be used in the beginning stages to test the form and fit prior to committing to complete metal construction. This method reduces the risk of rework and speeds up development times.
6. Balancing Durability and Cost for Optimal Performance
The end result is that stamping machines for low-volune production must be able to strike a balance between longevity and cost-effectiveness. The overbuilding of the die with components and features that are designed to last for millions of cycles depletes resources, whereas underbuilding could cause problems with quality and premature wear. Understanding the actual production requirements–including material type, number of parts, and changeover frequency–allows designers to optimize tooling lifespan without overspending.
Advantages of Optimized Stamping Die Design in Low-volume Production
- Reduced Tooling Costs
A properly designed stamping die makes sure that only the essential features, materials and parts are used and avoids over-engineering which could increase costs. By making sure that the material of the die is matched to choice and the complexity of construction to the run’s actual size, companies can reduce the initial investment and still achieve the necessary performance to meet the overall project’s requirements.
- Faster Lead Times
The streamlining of design processes that include standard components, modular sections and simpler construction methods allow dies to be made quicker. This is crucial in production with low volumes, where quick response to the needs of customers and market trends can be what the difference between winning and losing an initiative.
- Greater Design Flexibility
Optimized dies are able to accommodate design changes with minimum effort. The ability to adjust stops, interchangeable inserts and modular sections of the die permit quick adaption to new specifications for parts. This flexibility is particularly useful in industries where designs change rapidly during the process of development or customizing.
- Improved Part Quality with Targeted Precision
By focusing on precision where it most crucial, on critical dimensions and functional characteristics, optimized stamping dies can create reliable, high-quality components without the need for machining complexity. This specific approach guarantees high-quality and reliable functionality while keeping the cost of production to a reasonable level.
- Extended Die Usability Across Projects
A well-thought out die design is able to be reused or repurposed to create new projects, particularly when modular components are integrated into. The possibility of reuse reduces the cost of future tooling and increases the ROI, even for small production runs.

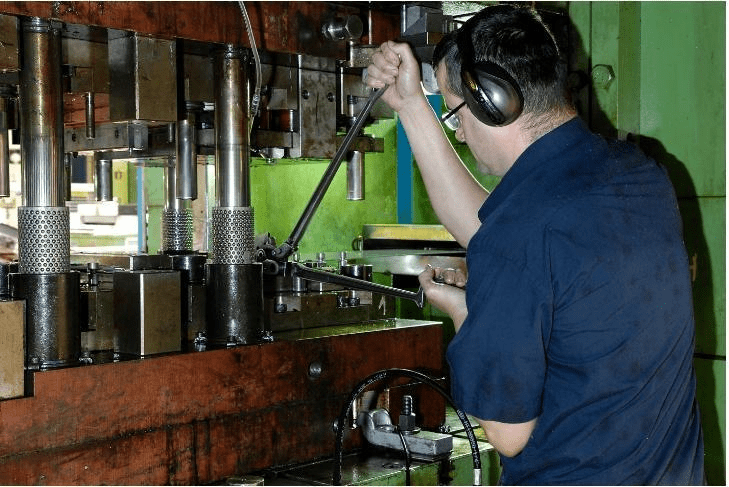

- Lower Maintenance and Downtime
When components for dies are designed to allow for quick replacement and accessibility maintenance becomes much easier and takes less time. This minimizes interruptions to production and ensures that output stays constant, even in manufacturing facilities with small batches in which every minute lost can impact the timeframe for delivery.
Summary
Stamping die design for low-volume production is an specialized technique that blends creativity, practicality and expertise. By focusing on cost-effective materials, simplified die structures, modularity, and quick adaptability, manufacturers can deliver high-quality parts without the overhead of traditional high-volume tooling. This approach not only aids in the development of prototypes and niche markets but also speeds up innovation by reducing the time and expense of bringing new stamped products to market.
