Differences in Usage Between Hex Head Bolts and Stud Bolts

Bolts are a fundamental component in various engineering and construction applications. Among the myriad types of bolts available, hex head bolts and stud bolts stand out as two of the most commonly used fasteners. Each type has unique characteristics that make it suitable for specific applications. Understanding the differences between hex head bolts and stud bolts is crucial for selecting the right fastener for a given project, ensuring structural integrity, and optimizing performance.

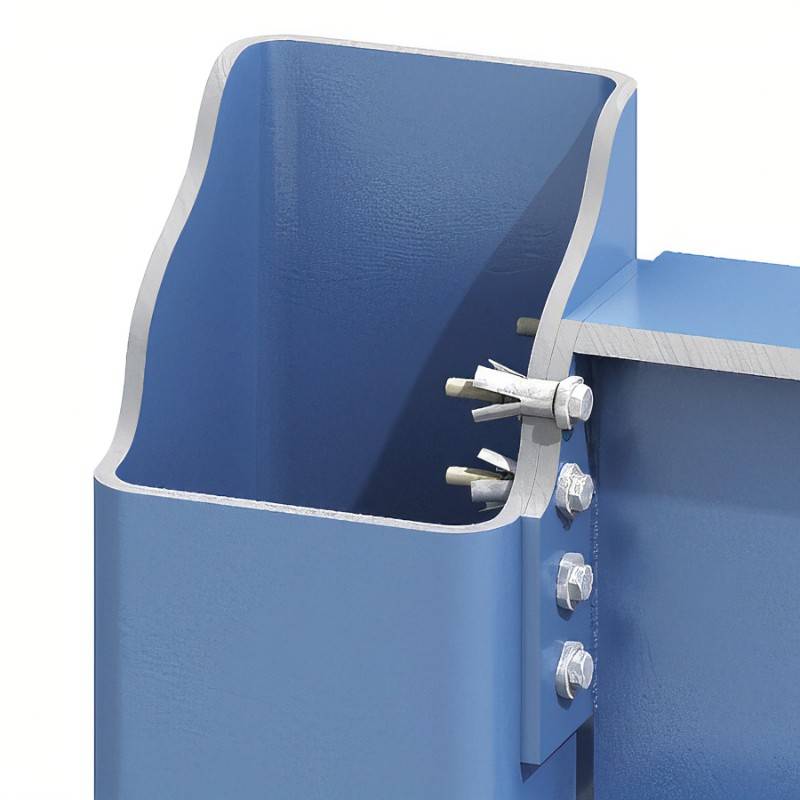

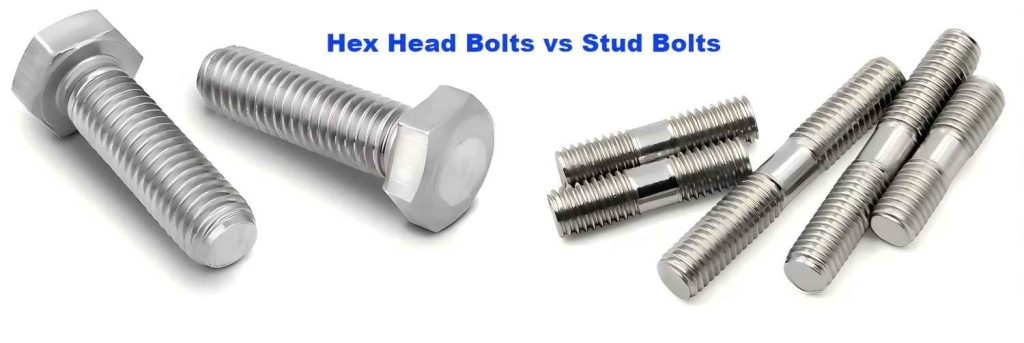

Structural and Application Differences of Hex Head Bolts and Stud Bolts

Feature	Hex Head Bolts	Stud Bolts

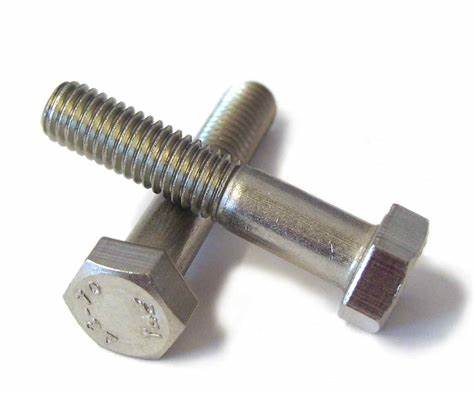

Description	A hex head bolt is characterized by a cylindrical body with external threads on one end and a hexagonal head on the other. The hexagonal head facilitates installation and removal using wrenches or sockets. Hex head bolts are widely employed due to their versatility and ease of use.	Unlike hex head bolts, stud bolts are threaded rods without a head. Instead, they possess threads at both ends. Stud bolts are typically installed by threading one end into a tapped hole, while the other end is secured with a nut. This design offers unique advantages in certain applications.
Design and Structure	Cylindrical shaft with external threads and a hexagonal head.	Dual-threaded ends without a head.
Torque Application	Hexagonal shape provides multiple points of contact for tools, enabling efficient torque application.	Dual-threaded design provides uniform load distribution, reducing stress concentration.
Ease of Installation	Easily installed and removed using a wrench or socket.	Lack of head allows use in applications where head protrusion is problematic.
Typical Usage Scenarios	Used in moderate operational conditions, such as in the petrochemical industry for utility pipelines carrying cooling water and air. Also used in structural engineering and mechanical equipment.	Suitable for heavy load conditions and high-strength connections, such as bridge construction, machinery, building structures, and large equipment installations.
Pressure Ratings	Suitable for applications with nominal pressure ratings of up to PN16.	Suitable for applications with nominal pressure ratings of up to PN40.

Factors to Consider When Choosing Between Hex Head Bolts and Stud Bolts

Selecting the appropriate bolt type involves considering several factors, including load-bearing capacity, work environment, and connection complexity.

1. Load-Bearing Capacity

Hex head bolts are suitable for moderate loads and less complex connections. Their design allows for efficient torque application and good shear resistance, making them ideal for applications with moderate operational conditions. However, stud bolts are the better choice for heavy load conditions and high-strength connections. The dual-threaded design of stud bolts provides superior load distribution and reduces stress concentration, enhancing their load-bearing capacity.

2. Work Environment

The work environment plays a significant role in determining the appropriate bolt type. Hex head bolts are suitable for environments with less stress and less frequent disassembly. Their ease of installation and removal makes them ideal for applications where quick fastening is required. On the other hand, stud bolts are preferred for high-stress environments and applications that require frequent disassembly. Their robust design and high-strength capabilities make them suitable for demanding conditions.

3. Connection Complexity

Connection complexity is another crucial factor in bolt selection. Hex head bolts are suitable for simpler connections where easy access is available. Their hexagonal head allows for quick and secure fastening, making them ideal for straightforward applications. However, for more complex connections requiring higher stability and strength, stud bolts are the preferred choice. Their dual-threaded design provides enhanced stability and load distribution, making them suitable for demanding applications.

Strength Differences Between Hex Head Bolts and Stud Bolts

Feature	Hex Head Bolts	Stud Bolts
Design	Hexagonal head for efficient torque application, but head-shank junction can be a stress concentration point.	Dual-threaded design with no head, providing even load distribution and eliminating stress concentration points.
Strength Characteristics	Good shear resistance due to head design, but susceptible to failure under high loads or vibration due to stress concentration.	Superior strength and durability due to even load distribution and absence of head-shank junction.
Manufacturing Process	Cold heading or cutting can alter material microstructure, potentially affecting strength.	Simplified process ensures consistent material properties and enhances strength and reliability.
Overall Strength	Moderate to high strength, depending on material and manufacturing process.	High strength and durability due to design and manufacturing advantages.

Limitations of Hex Head Bolts for Heavy Load Applications

While hex head bolts are versatile and widely used, they have certain limitations when it comes to heavy load applications. Understanding these limitations is essential for selecting the appropriate fastener for demanding conditions.

Stress Concentration: Hex head bolts can experience stress concentration at the head-shank junction, which can lead to early failure under high loads or dynamic conditions. This stress concentration is particularly problematic in applications subject to heavy loads, impacts, or vibrations.
Fixed Head Size: The fixed head size of hex head bolts limits their ability to handle high torque and heavy loads. In applications requiring higher torque, hex head bolts may not provide the necessary fastening strength, making them less suitable for extreme load conditions.
Geometric Design Limitations: The geometric design of hex head bolts, while effective for many applications, is less suitable for axial or radial heavy loads and long threaded connections. Their head design can limit their use in confined spaces or applications where a more uniform load distribution is required.
Material and Heat Treatment Limitations: Although hex head bolts can be made from high-strength materials and undergo heat treatment processes to enhance their properties, these improvements may still fall short in extremely demanding conditions. The head design and manufacturing process can introduce inconsistencies that affect performance under heavy loads.

Situations Where Stud Bolts Outperform Hex Head Bolts

Stud bolts offer significant advantages over hex head bolts in specific scenarios, particularly in applications requiring high strength, stability, and frequent maintenance.

Frequent Disassembly: In applications where frequent disassembly is required, such as in large equipment installations, stud bolts provide a practical solution. Their dual-threaded design allows for easy removal and replacement without damaging the components, reducing maintenance costs and downtime.
Thick and Heavy Connections: For thick and heavy connections, stud bolts offer better support and stability. Their design ensures even load distribution and reduces the risk of bending or fatigue, making them ideal for use in thick components and large structural elements.
Inaccessible Areas: In applications where access is limited, stud bolts provide a more flexible and effective fastening solution. Their ability to be installed from one side and secured with nuts on the other makes them suitable for use in confined spaces and complex structures.
Structural Stability: Stud bolts enhance structural stability due to their design, which provides even load distribution and reduces stress concentration. This makes them suitable for high-stress applications in machining, automotive, and construction industries, where stability is critical.

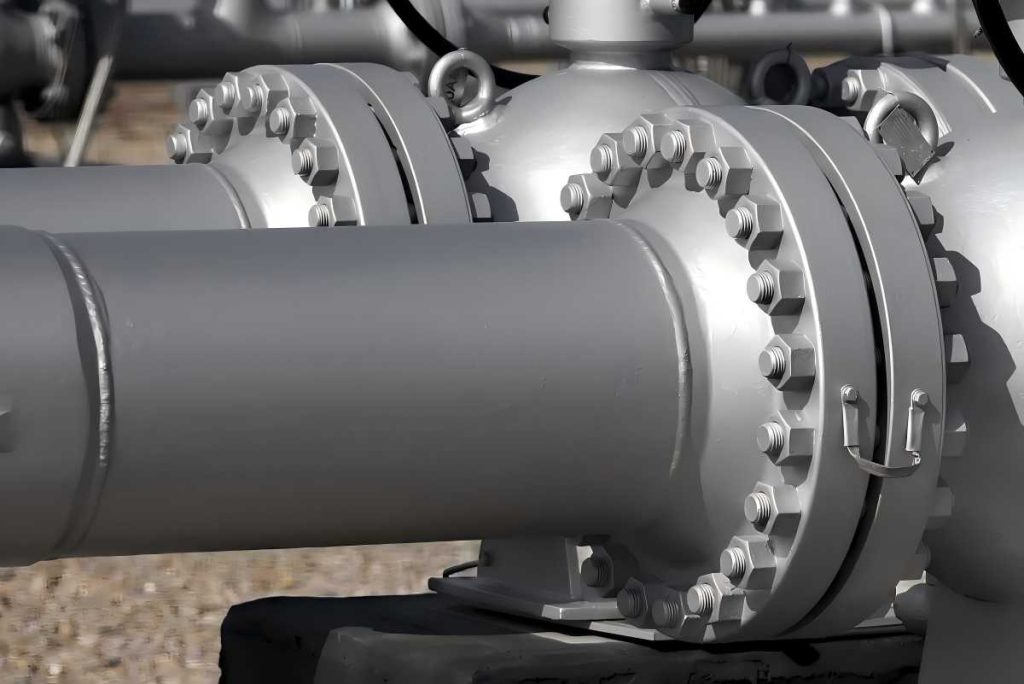

High Load Capacity: The high load capacity of stud bolts makes them ideal for applications requiring robust and reliable connections. Their ability to withstand heavy loads and resist failure ensures secure and durable fastening in demanding conditions, such as bridge construction and pressure vessels.
Adaptability to Harsh Environments: Stud bolts can be made from various materials, including carbon steel, stainless steel, and alloy steel, to suit different environmental conditions. This adaptability makes them suitable for use in harsh environments, where they must resist corrosion, extreme temperatures, and chemical exposure.

In conclusion, choosing between hex head bolts and stud bolts depends on specific application requirements. Hex head bolts offer versatility and ease of installation, making them ideal for moderate load conditions and less complex connections. However, their susceptibility to stress concentration limits their use in heavy-duty applications. Conversely, stud bolts provide superior strength, uniform load distribution, and durability, making them suitable for high-load, high-pressure, and high-stress environments. Understanding these differences ensures the selection of the appropriate fastener, optimizing structural integrity, performance, and cost-effectiveness in various industrial and construction applications.
