Hexagonal Weld Nuts

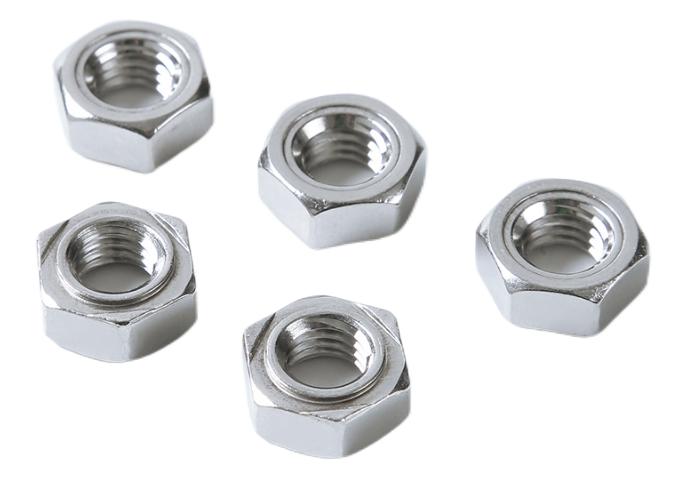

Hexagonal Weld Nuts Manufacturer

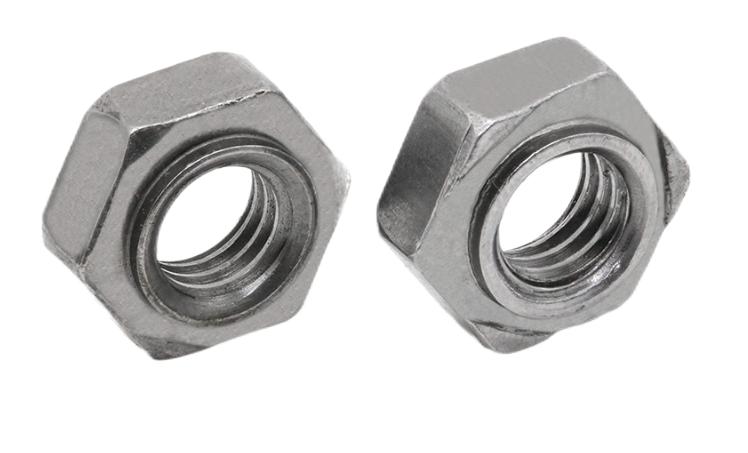

Hexagonal Weld Nuts
Hexagonal Weld Nuts supplier
Hexagonal Weld Nut Factory

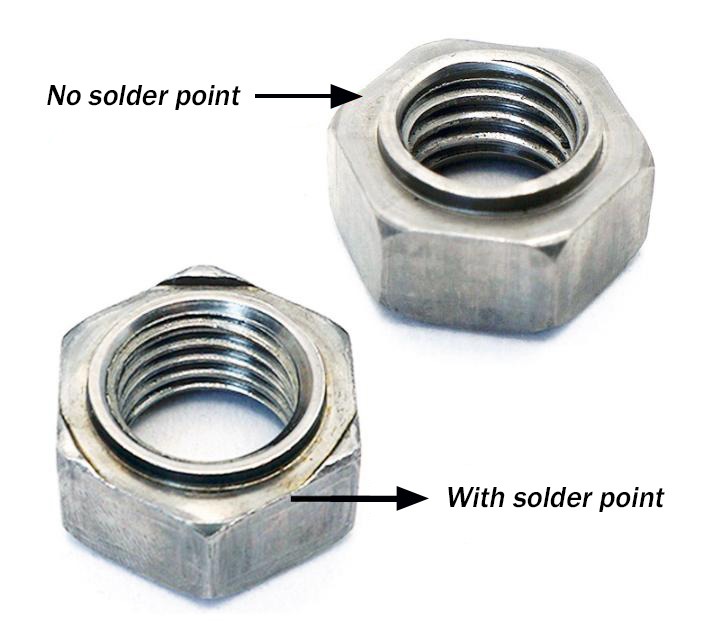

Hexagonal Weld Nut Manufacturer
  • Hexagonal Weld Nuts Manufacturer
  • Hexagonal Weld Nuts
  • Hexagonal Weld Nuts supplier
  • Hexagonal Weld Nut Factory
  • Hexagonal Weld Nut Manufacturer
    • Standard: DIN929, GB13681
    • Material: Carbon steel, Stainless steel
    • Finishing: Natural, black oxide

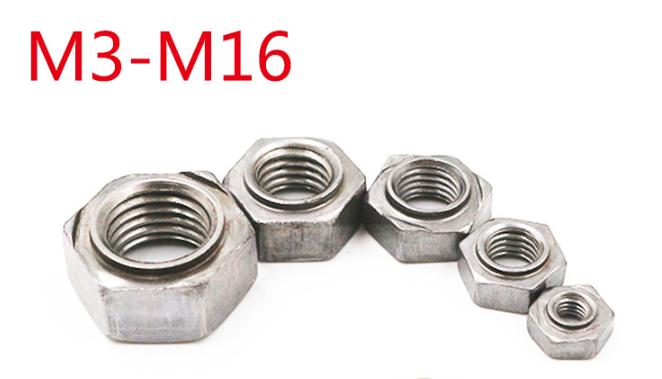

    • Size: M3~M16
    • Grade: 4, 8, 10

    Are You an OEM Manufacturer?

    Yes

    Specification of Hexagonal Weld Nuts

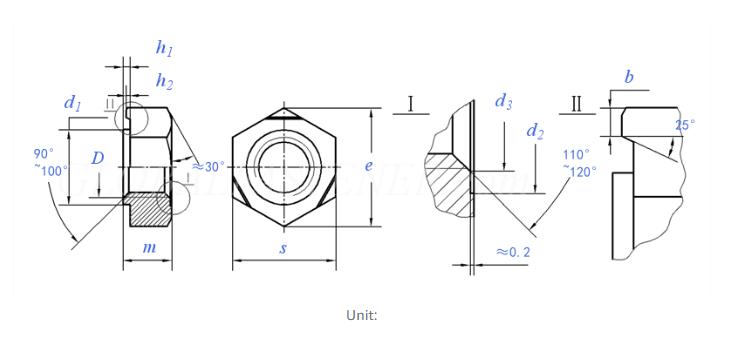

    Specifications of Hexagonal Weld Nuts

    DIN929 Standard

      Thread Size
         D     		M3 M4 M5 M6 M8 M10    7/16
    UNF-2B ①     		7/16
    UNF-2B①     		M12 (M14) M16
    P Pitch Coarse thread 0.5 0.7 0.8 1 1.25 1.5 / / 1.75 2 2
    Fine thread 1 / / / / 1 1.25 / / 1.25 1.5 1.5
    Fine thread 2 / 1 / / / 1 20* 20* 1.5 / /
    b Nominal Size 0.80 0.80 0.80 0.90 1.00 1.25 1.25 1.25 1.25 1.50 1.50
    max 1.00 1.00 1.00 1.12 1.25 1.55 1.55 1.55 1.55 1.90 1.90
    min 0.60 0.60 0.60 0.68 0.75 0.95 0.95 0.95 0.95 1.10 1.10
    d1 Nominal Size (d11) 4.50 6.00 7.00 8.00 10.50 12.50 12.50 13.50 14.80 16.80 18.80
    max 4.47 5.97 6.96 7.96 10.45 12.45 12.45 13.45 14.75 16.75 18.735
    min 4.395 5.895 6.87 7.87 10.34 12.34 12.34 13.34 14.64 16.64 18.605
     d2 min=nominal size (H13) 4.50 6.00 7.00 8.00 10.50 12.50 13.50 13.50 14.80 16.80 18.80
    max 4.68 6.18 7.22 8.22 10.77 12.77 13.77 13.77 15.07 17.07 19.13
    d3 max 3.15 4.2 5.25 6.3 8.4 10.5 11.7 11.7 12.6 14.7 16.8
    e min 8.15 9.83 10.95 12.02 15.38 18.74 18.74 20.91 20.91 24.27 26.51
     h1 max 0.55 0.65 0.7 0.75 0.9 1.15 1.15 1.4 1.4 1.8 1.8
    min 0.45 0.55 0.6 0.6 0.75 0.95 0.95 1.2 1.2 1.6 1.6
     h2 max 0.25 0.35 0.4 0.4 0.5 0.65 0.65 0.8 0.8 1 1
    min 0.15 0.25 0.3 0.3 0.35 0.5 0.45 0.6 0.6 0.8 0.8
    m max=nominal size (h14) 3 3.5 4 5 6.5 8 10 10 10 11 13
    min 2.75 3.2 3.7 4.7 6.14 7.64 9.64 9.64 9.64 10.57 12.57
    s max=nominal size (h13) 7.5 9 10 11 14 17 17 19 19 22 24
    min 7.28 8.78 9.78 10.73 13.73 16.73 16.73 18.67 18.67 21.67 23.67
    per 1000 units≈kg 0.78 1.13 1.73 2.5 5.27 9.58 12 14 13.7 21.3 28.5
    Ensure the load(N) Coarse thread 3800 6800 11000 15500 28300 44800 / / 65300 89700 123000
    Fine thread 1 / / / / 30200 47800 / / 72100 97500 132000
    Fine thread 2 / 1 / / / 50200 53600 53600 68200 / /

    GB13681 Standard

    Thread Size
         D     		 M4  M5  M6 M8 M10 M12 (M14) M16
    P Pitch Coarse thread 0.7  0.8 1 1.25 1.5 1.75 2 2
    Fine thread / / / 1 1 1.5 1.5 1.5
    Fine thread / / / / (1.25) (1.25) / /
    da max 4.6 5.75 6.75 8.75 10.8 13 15.1 17.3
    min 4 5 6 8 10 12 14 16
    dw min 7.88 8.88 9.63 12.63 15.63 17.37 19.57 21.57
    e min 9.83 10.95 12.02 15.38 18.74 20.91 24.27 26.51
    d1 max 5.97 6.96 7.96 10.45 12.45 14.75 16.75 18.735
    min 5.885 6.87 7.87 10.34 12.34 14.64 16.64 18.605
    d3 max 6.18 7.22 8.22 10.77 12.77 15.07 17.07 19.13
    min 6 7 8 10.5 12.5 14.8 16.8 18.8
    h1 max 0.65 0.7 0.75 0.9 1.15 1.4 1.8 1.8
    min 0.55 0.6 0.6 0.75 0.95 1.2 1.6 1.6
    h2 max 0.35 0.4 0.4 0.5 0.65 0.8 1 1
    min 0.25 0.3 0.3 0.35 0.5 0.6 0.8 0.8
    b max 1 1 1.12 1.25 1.55 1.55 1.9 1.9
    min 0.6 0.6 0.68 0.75 0.95 0.95 1.1 1.1
    m max 3.5 4 5 6.5 8 10 11 13
    min 3.2 3.7 4.7 6.14 7.64 9.64 10.3 12.3
    s max 9 10 11 14 17 19 22 24
    min 8.78 9.78 10.73 13.73 16.73 18.67 21.67 23.67
      Ensure the load(N) 6800 11000 15500 28300 44800 65300 89700 123000
    per 1000 units≈kg 1.09 1.48 2.18 4.55 8.13 11.79 16.35 22.24

    Advantages of Hexagonal Weld Nuts

    1. No burrs on the surface
    2. Smooth chamfer
    3. Thread can pass go and no-go gauges.
    4. Complete specifications, stable quality

    Applications of Hexagonal Weld Nuts

    Electronic hardware, medical equipment, instrumentation, automobile, aviation and navigation, and military manufacturing.

    Materials we can use on Hexagonal Weld Nuts
