How to Do Well in Quality Inspection of CNC Machining Parts?

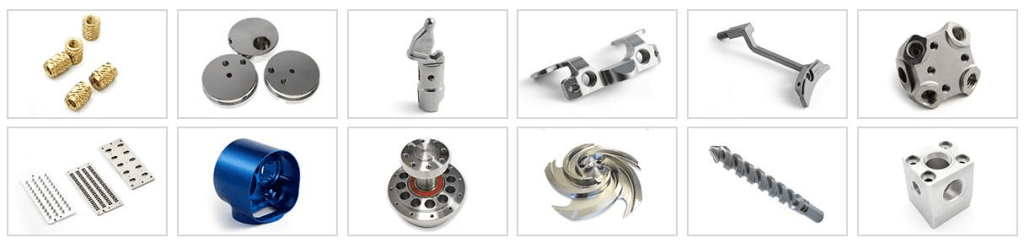

The careful cut of complicated pieces in modern manufacturing rests on a cornerstone of technology referred to as CNC machining due to its unmatched accuracy. In the aerospace, automotive, and medical sectors, meeting industry standards as well as regulations indicates the emphasis on quality inspection of CNC machining parts. It also focuses on acceptance standards for quality. In addition, it in addition takes into consideration the accuracy of the dimensions, the surface quality, and the specification put forth by the customer with respect to value performance and reliability of the CNC machined components.
Table of Contents
Why Quality Inspection of CNC Machining Parts is Important
The majority of CNC components receive tight tolerances, oftentimes to the degree of a few microns. If there is a defect or failure in the working of the machinery, the risk of serious consequences is a lot higher. The machine may not function completely, which poses a safety hazard in critical applications, and also the overall product may end up with a reduced lifespan.
Ensuring Precision and Accuracy
The CNC machines work wonders by superfast, accurate, and intricate functioning. The workflow of a technology is however not without any issues. There may be a few tool wear, calibration, inconsistencies, irregularities, or setup errors. Quality inspection patrols design and tolerances, controls multi-layered and intricate industry components, and adds the required value to the features of industry components. If the components in question deal with aerospace, automotive, and medical devices, the lack of inspection, no matter how minor, would lead to severe consequences in the critical reliability and functionality of the components.
Preventing Functional Failures and Safety Risks
The repercussions of CNC components with defects can be very serious. Components that do not conform to the set claims can lead to poor interlocking construction, poor performance, or even life-threatening scenarios. Quality control checks have the ability to stop defects from proceeding down the line where they could result in malfunctions that might, in turn, lead to expensive downtime and repairs. Excessive repairs, especially in life-threatening applications, could also be avoided. By matching the requirements and responsibilities of each component, manufacturers also enhance their safety guarantees.
Enhancing Process Efficiency and Cost Savings
Monitoring and Assessing also is not only the correcting of the problematic aspects, and saving the process of refining the machine. By utilizing machine operational performance records, companies can more easily and definitively find the reasons behind the failure and take appropriate measures to fix the shortcoming. This streamlined mechanism of corrective actions in turn optimizes machine performance and cuts down on excess raw materials and repairs needed, all the while the volume of quality produced is sustained, meaning the expenses incurred in the process of production also drop.
Supporting Compliance and Accountability
CNC parts are used in different industries that require adherence to strict international standards such as ISO 9001, AS9100, or ISO/TS 16949. Quality inspection provides trackable evidence that any of these standards can be complied with. Record keeping is absolutely essential to inspection, as the entire analysis should not only stop at receiving a compliant product, but receiving a compliant product should also lead to the confidence to regulators and clients, as it serves to reinforce the trust associated.

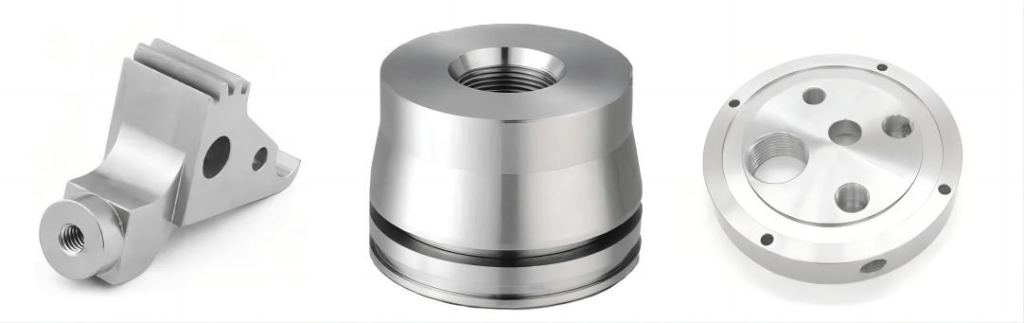

Key Characteristics of CNC Machining Parts are Inspected
| Key Characteristic | Description | Inspection Focus |
| Dimensional Accuracy | Ensures that the part’s dimensions match the design specifications | Length, width, height, diameters, angles, tolerances |

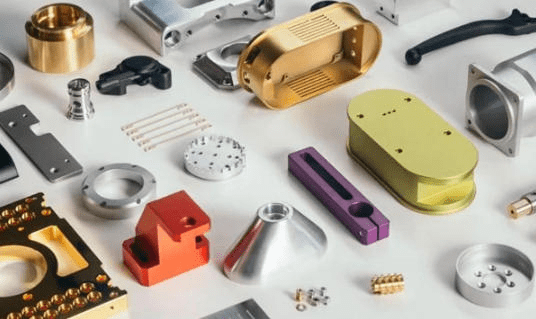

| Surface Finish | Quality and texture of CNC surface finishing | Smoothness, roughness (Ra), appearance, absence of scratches or burrs |
| Geometric Features | Shape and alignment of specific features | Flatness, roundness, cylindricity, parallelism, concentricity |
| Structural Integrity | Ensures the part can withstand operational stresses | Cracks, voids, deformations, material consistency |
| Thread and Hole Accuracy | Precision of threaded holes, bores, and drilled features | Thread pitch, hole diameter, depth, perpendicularity |
| Material Properties | Confirms that the correct material is used and meets required specifications | Hardness, tensile strength, chemical composition |
| Tolerance Compliance | Checks that all critical dimensions are within allowable deviations | Fit, clearance, and interlocking parts |
| Assembly Compatibility | Ensures the part integrates properly with other components | Alignment, mating surfaces, mounting points |
| Functional Features | Confirms that critical functional aspects perform as intended | Moving parts, slots, grooves, channels, and mechanical operation |
| Surface Treatment/Coating | Validates additional finishing processes applied to the part | Plating, anodizing, painting, heat treatment, corrosion resistance |
Common Methods of Quality Inspection in CNC Machining Parts
Multiple inspection methods are implemented in a CNC part based on the part’s intricacy, the optimum level of accuracy, and the surroundings of production.

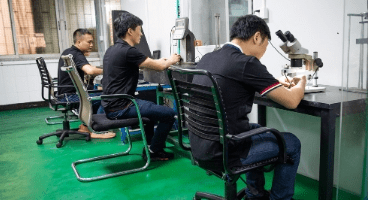

1. Visual and Surface Inspection
The examination of parts visually is done in the most simplistic and traditional method. Inspectors look for physical defects on the surface like scratches, burrs, cracks or any and all blemishes that may interrupt the functioning or desirability of a product. For the purpose of measuring the surface texture and finish of a CNC component, and the overall standards it is necessary that the component be appreciated for performance and appearance, several Roughness testers are also used. This type of approach is very beneficial in the identification of any significant imperfections in a component and is usually the first approach taken to ensure quality at the required standards.

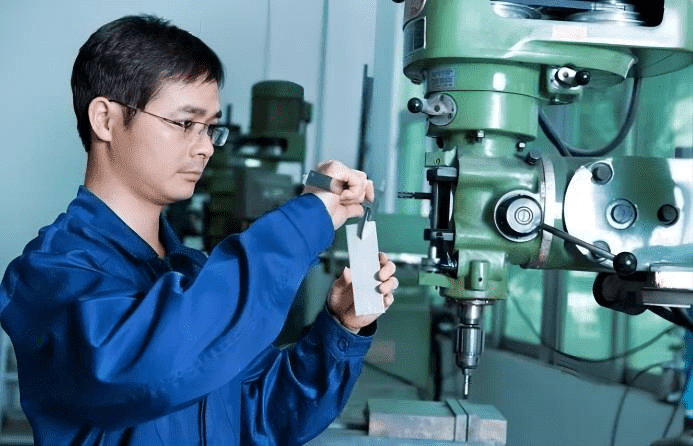

2. Dimensional Inspection Using Hand Tools
For parts with straightforward geometries, traditional hand tools are used to verify dimensional accuracy.
Here’s a chart summarizing hand tools for dimensional inspection of CNC machining parts
| Hand Tool | Purpose | Accuracy Range | Advantages | Limitations |
| Vernier Caliper | Measures external, internal dimensions and depths | ±0.02 mm (0.001 in) | Easy to use, versatile, portable | Limited for very tight tolerances or complex geometries |
| Micrometer | Measures external or internal diameters precisely | ±0.01 mm (0.0005 in) | High accuracy, reliable for small dimensions | Slower than calipers, not suitable for irregular shapes |
| Dial Indicator | Measures flatness, alignment, and runout | ±0.01 mm | Useful for surface variation and alignment checks | Requires stable setup, limited for large parts |
| Height Gauge | Measures vertical dimensions and marks reference points | ±0.02 mm | Ideal for bench setup, accurate vertical measurements | Less portable, requires flat surface |
| Depth Gauge | Measures hole depths, slots, and recesses | ±0.02 mm | Simple and effective for depth measurements | Limited use for complex geometries |
| Plug and Ring Gauges | Checks hole and shaft diameters for tolerance conformity | Go/No-Go standard | Fast verification for series parts | Only verifies specific sizes, not continuous measurements |
| Angle Gauge / Protractor | Measures angles and chamfers | ±0.5°–1° | Quick check for angular features | Not precise for very fine angles |
3. Coordinate Measuring Machines (CMM)

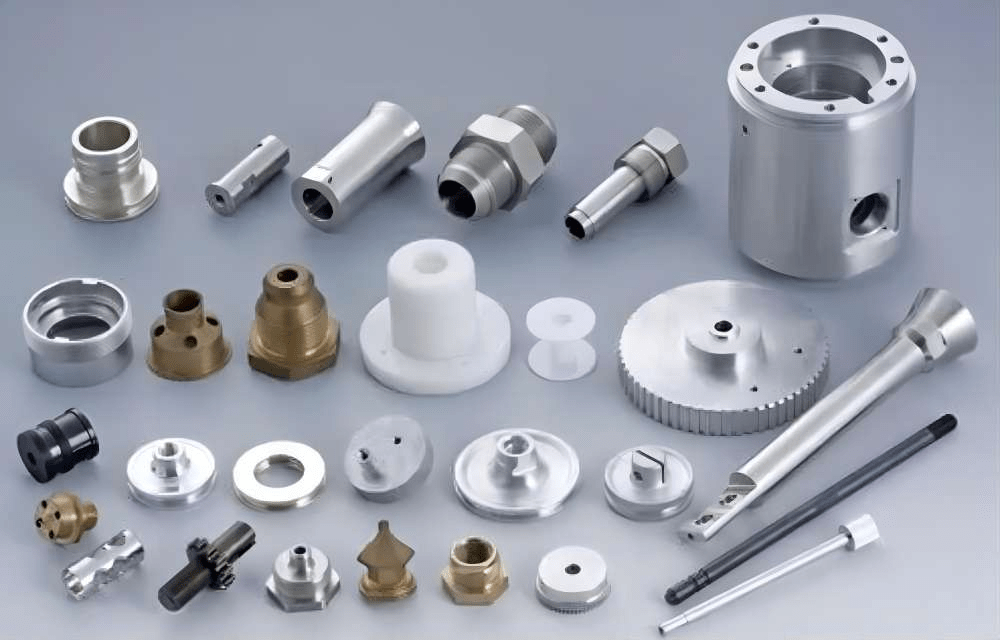

Complex customized CNC parts having delicate shapes and structures can be measured accurately in three dimensional Shape and Structure using a CNC Coordinate Measuring Machine, referred to as the CMM. The CMM maps the surface of the part by using probing or laser scanning techniques for all boundaries to ensure that all the dimensions are within the set limits of tolerance. This type of machine is used in very critical and precise areas of the industry like aviation and medicine where a small change can have a very big effect.
4. Optical and Vision Systems

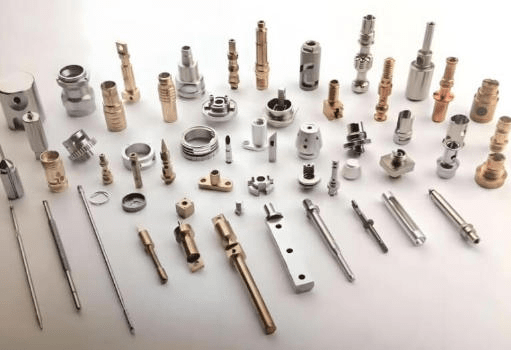

Non-contact optical and vision-based inspection systems are increasingly used in CNC machining parts, particularly for delicate or small components.
Here’s a chart providing optical and vision Systems for quality inspection in CNC parts
| System Type | Purpose | Key Features | Advantages | Limitations |
| 2D Vision Systems | Capture flat images for defect detection and measurement | High-resolution cameras, image processing software | Fast inspection, non-contact, suitable for surface defects | Limited to 2D measurements, cannot capture depth |
| 3D Optical Scanners | Measure complex geometries in three dimensions | Laser triangulation, structured light, or photogrammetry | Accurate 3D mapping, non-contact, works on delicate parts | Higher cost, slower than 2D systems |
| Laser Scanning Systems | Scan surfaces and profiles for dimensional verification | High-speed laser sensors, point cloud data | High precision, captures fine surface details | Sensitive to reflective surfaces, setup required |
| Structured Light Systems | Create 3D models by projecting patterns onto surfaces | Projected light patterns and cameras | Rapid, accurate, effective for complex shapes | Requires stable lighting and surface conditions |
| Machine Vision with AI | Automated defect detection and classification | AI algorithms, cameras, real-time processing | Detects subtle flaws, improves efficiency | Requires large datasets for training, high initial setup cost |
| Optical Comparators | Project magnified silhouette for dimensional comparison | Lens system, backlighting, overlay software | Easy to interpret, non-contact, visual verification | Limited to profile/outline comparisons only |
5. In-Process Inspection
Thanks to CNC technology, in-process inspection makes it possible to take measurements while machining the part. Integrated probing systems to detect, in real time, deviations from the target geometry which can be corrected on the fly. This completely eliminates the need to stop the CNC machine for adjustment. This minimizes the number of defective parts produced, lowers waste, and improves resource productivity.
The Quality Inspection Workflow of CNC Machining Parts
| Workflow Stage | Purpose/Description |
| 1. Planning and Preparation | Review part drawings, CAD models, tolerances, and inspection criteria. |
| 2. Initial Visual Inspection | Detect obvious surface defects such as scratches, burrs, or cracks. |
| 3. Dimensional Measurement | Measure key dimensions using calipers, micrometers, and height gauges. |
| 4. Geometric and Feature Checks | Verify features like holes, threads, slots, angles, and alignments. |
| 5. Surface Finish Assessment | Evaluate surface roughness and texture using profilometers or other testers. |
| 6. Advanced Inspection Techniques | Employ CMMs, optical scanners, or laser-based systems for complex geometries. |
| 7. Functional Testing | Check moving parts, assembly fit, and operational performance where applicable. |
| 8. In-Process Monitoring | Use CNC-integrated probes or sensors to measure critical dimensions during machining. |
| 9. Material and Treatment Verification | Confirm hardness, material composition, and coatings/plating. |
| 10. Documentation & Reporting | Record inspection data, deviations, and results for traceability and quality control. |
| 11. Feedback and Process Adjustment | Provide insights for process improvement and corrective actions to prevent future defects. |
Emerging Trends in Quality Inspection for CNC Machining Parts
Advanced technologies are changing how manufacturers abide by the accuracy, efficiency, and reliability of the inspection process for CNC machining parts.
- Automation and Robotic Inspection
The use of robotic inspection arms to automate inspection and measuring is becoming very popular. This is due to the speed and accuracy they bring to the inspection of multiple parts. The arms are trained to use measurement systems while their machining capabilities are handled by the CNC machines. This completes the inspection cycle very fast. The systems are becoming more sophisticated in measuring surface and dimensional accuracy, thereby becoming more precise.
- In-Process and Real-Time Monitoring
CNC machining is becoming increasingly popular which enables manufacturers the luxury of attending to problems as they arise. Unlike, post CNC machining inspections which wait until a part is done before looking at it, in-process inspections employs the use of sensors, probes and inbuilt systems to “mic check” the mechanical components of moving parts as they are worked on. This approach greatly enhances the need to “rework,” eliminates the unnecessary use of materials, and ensures that problems are avoided during a post-process inspection.
- Advanced Metrology and Non-Contact Systems
3D imagers, optical systems, and laser scanners are non-contact systems that are becoming widely used for complex parts. Non-contact systems have the ability to gather highly precise data without touching the parts, which is ideal for intricate geometries and small scale components. The combination of fast scanners and detailed data increases efficiency and accuracy of the quality inspection process.
- Artificial Intelligence and Machine Learning
Artificial Intelligence and Machine Learning are rapidly changing the way quality inspections are done. By studying the inspection data, AI programs are capable of recognizing patterns and defects that a human inspector might overlook. AI is even capable of developing predictive analyses to signal possible future defects taking historical data into account. This helps manufacturers optimize machining standards for improved quality to implement preventive actions.
- Digital Twin Technology
Moving on to the CNC quality inspection space, digital twin technology is beginning to emerge. As digital twins create virtual replicas of a part, manufacturers can create a virtual model of the part and superimpose the results of the design and real-world measurements. This allows manufacturers to ascertain any discrepancies before the item is physically produced. This methodology streamlines the design and verification processes, as it helps avoid discrepancies, reduces the reliance on tangible prototypes, and improves troubleshooting processes.
- Integration with Industry 4.0 and Smart Manufacturing
The quality of the inspection is progressively more integrated within the scope of Industry 4.0. Data captured during the inspection can be associated with the Manufacturing Execution System (MES) and Enterprise Resource Planning (ERP) systems to provide a more holistic view of the production quality. With the use of smart sensors, IoT devices, and cloud thus, real-time tracking, trend analysis, and automated reporting are made possible, which changes inspection from independent to a sophisticated intelligent process.
Summary
Quality inspection in CNC machining parts is not a final stage of the process. It has always been and continues to be a part of the manufacturing process. The integration of conventional inspection and CMMs, systems for vision and real-time video monitoring, and other devices improves precision, decreases defects, and increases the level of compliance with international standards. With the widening demand of industries for more and more efficient production systems and machinery, innovations in inspection will remain vital to the confidence and effectiveness of CNC components.
