How to Enhance Bolt Fatigue Resistance?

Bolts are an essential element in a vast array of structural and mechanical applications, offering safe and secure connections under various conditions of loading. Bolts are most likely to fail due to fatigue during the dynamic or cyclic loading phase. Such failure compromises the integrity of the entire system. Understanding and improving bolt fatigue resistance is vital for ensuring the durability and reliability for bolts in the most critical situations.

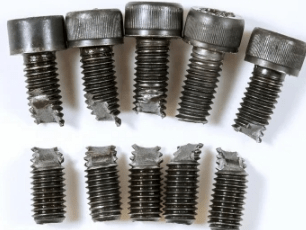

What is Bolt Fatigue

Bolt fatigue is the breaking of a bolt because of fluctuations or cyclic stresses. The stresses tend to be less than the strength of the material but they build up over time, creating cracks that spread until the bolt finally breaks. In contrast to static loads the failure of bolts is unpredictable and can occur abruptly which is why it is crucial to be addressed both the design and operational stages.

Key Stages

Crack Initiation: The most common cause of fatigue is at places with high stress concentration for example, thread root, sharp edges or imperfections on the surface. Factors such as surface roughness, corrosion and defects in the material can cause cracks to develop and causing the bolt to fatigue.
Crack Propagation: After the initial cracks are created, they grow gradually as each load cycle passes. The rate of propagation is dependent on the force of the load as well as frequency and the environmental conditions.

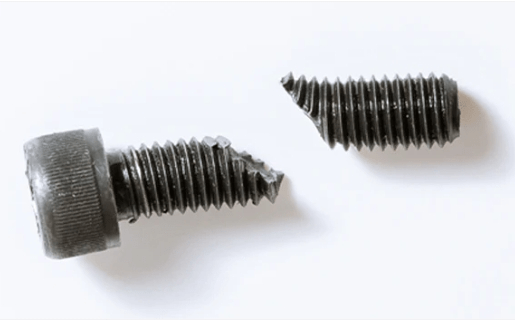

Final Fracture: When the material that remains can be unable to support the load, catastrophic failure can occur. The crack usually displays a distinct pattern. There are smooth zones indicating the growth of cracks and rough zones that indicate the end of the fracture.

Factors Influencing Bolt Fatigue

Factor	Description
Material Properties	Material’s strength to resist fatigue and toughness. It also has ductility, ductility and resistance to corrosion.
Stress Range	The difference between minimum and maximum stress during the load cycle.
Load Frequency	The number in loading and unloading cycles during the time.
Environmental Conditions	Exposed to moisture, chemicals and extreme temperature.
Bolt Design Features	Thread profile and areas of transition.
Preload and Installation	The tension that is applied to the bolt during installation.
Surface Condition	The roughness of the surface, any imperfections and treatment.
Load Type and Direction	Sort (axial or shear) and the direction of the applied forces.
Maintenance and Inspection	The frequency and the thoroughness of monitoring for corrosion, wear, or cracks.

Strategies to Enhance Bolt Fatigue Resistance

1. Material Selection

The selection of the correct bolt material is crucial to ensure fatigue resistance.

Here’s a clear chart detailing Common Bolt Materials for Enhancing Bolt Fatigue Resistance

Material	Key Properties	Fatigue Resistance Benefits	Typical Applications
Alloy Steel (e.g., 4140, 4340)	Tensile strength high, excellent toughness, and heat-treatable	Superior fatigue strength due to its strength and toughness.	Automotive, heavy machinery, structural bolts
Stainless Steel (e.g., 304, 316, 17-4 PH)	Corrosion resistance moderate to high strength and heat treatable (in certain grades)	Resists fatigue, particularly in corrosive environments.	Chemical plants, marine and food processing
Carbon Steel (Grade 5, Grade 8)	High-strength to moderate strength It is widely available	Good resistance to fatigue if properly treated and coated with heat	General engineering, construction
Titanium Alloys (e.g., Ti-6Al-4V)	Excellent strength-to-weight ratio, outstanding resistance to corrosion	Superior resistance to fatigue, particularly for weight-critical use	Aerospace, high-performance automotive
Nickel-Chromium Alloys (e.g., Inconel)	Excellent high-temperature resistance and corrosion resistance	Amazing resistance to fatigue in extreme conditions	Aerospace and power generation and chemical processing
Copper Alloys (e.g., Beryllium Copper)	Good conductivity moderate strength	Moderate fatigue resistance, with excellent corrosion resistance	Connectors for electrical power and precision instruments

2. Optimized Bolt Design

Bolt geometry directly affects the distribution of stress during the cyclic load. Design changes such as the use of threads that are rolled instead of cut threads can increase the surface compressive stresses and decrease the amount of stress which makes the cracks more unlikely to begin. Incorporating features such as fillets in the underhead and seamless transitions between threaded and shank sections helps reduce stress risers. Reduced sharp corners and avoiding sudden changes in diameter are essential in enhancing the resistance to fatigue.

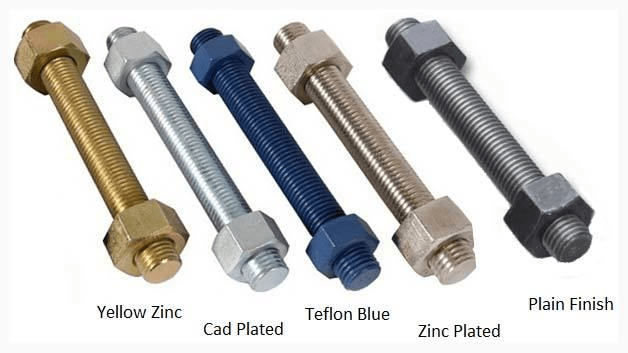

3. Surface Treatments

This chart summarizes the most important surface treatment that bolts undergo along with their effect on the strength of fatigue resistance of bolts.

Surface Treatment	Process Description	Effect on Fatigue Resistance
Shot Peening	Surfaces are bombarded by small hard particles at a high speed.	Induces the residual stress of compressive force, thereby delaying crack development and spread and increasing the resistance to fatigue.
Surface Hardening (Induction/Case Hardening)	Surface hardening via induction heating or carburizing to harden outer layer.	Enhances the surface’s hardness, while preserving an extremely tough core. It also improves the resistance to wear and fatigue strength.
Plasma Nitriding	The exposure to nitrogen-rich atmospheres at high temperatures results in the formation of an extremely hard nitrided layer.	Enhances the hardness of the surface and resistance to wear, reducing hydrogen embrittlement, thereby extending the life of fatigue.
Electroplating (Zinc/Nickel Plating)	Electroplating an element of metal (e.g. zinc, zinc or nickel) onto the bolt’s surface.	Offers resistance to corrosion, ensuring the strength of your fatigue by preventing environmental degradation.
Chromium Plating	The process involves electroplating a chromium layer onto the bolt’s surface.	Improves the surface’s hardness as well as wear resistance in addition to corrosion prevention, enhancing performance in fatigue.
MoS2 Coating (Solid Lubricants)	Application of Molybdenum Disulfide or any other solid fluids for lubrication.	Reduces friction and wear in the load cycle, thus reducing stress and fatigue.
Surface Grinding/Polishing	Polishing or fine grinding to smooth the surface.	Reducing surface roughness as well as imperfections Eliminates possible points of initiation for fatigue cracks.
CVD/PVD Coating	Thin, hard coatings (e.g., titanium nitride, diamond-like carbon) deposited via vapor deposition.	Increases wear resistance and hardness which results in higher resistance to fatigue, especially in high stress.
Black Oxide Coating	Chemical reaction results in an oxide black coating that is applied to the surfaces.	Offers some resistance to corrosion and reduces wear, which helps increase the longevity of fatigue.
Laser Shock Peening	The use of high-intensity lasers to produce Shock waves that are absorbed by the skin.	Produces compressive residual stress which significantly improve resistance to fatigue, especially in stressful environments.

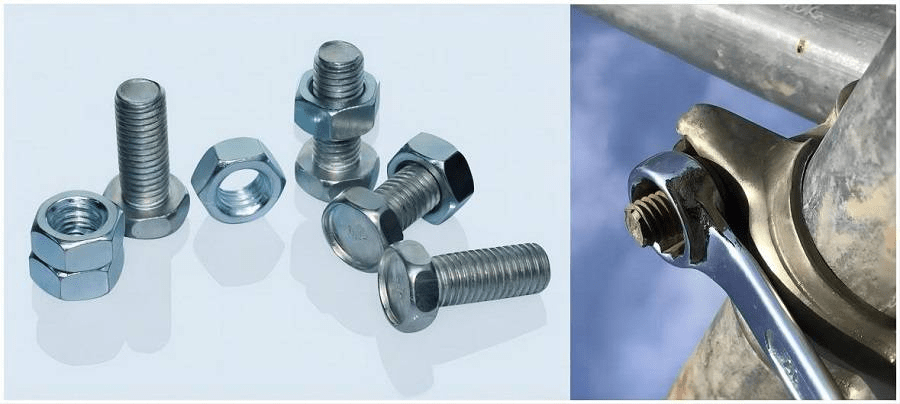

4. Proper Preloading and Installation

A properly installed bolt will ensure that the bolt’s connection is secure with varying loads.

Bolt Torque Control: Use tools that are calibrated, like torque wrenches or hydraulic tensioners to ensure that you have a precise preload.
Optimal Preload: Apply preload within the bolt’s elastic range to minimize the stress range during operation.
Avoid Over-tightening: Over-torquing can lead to deformation of the plastic, which can reduce the resistance to fatigue.

5. Environmental Considerations

The effects of corrosion accelerate the process of fatigue by encouraging cracking by causing pits of corrosion. Apart from the use of materials like stainless steel that are inherently more corrosion-resistant, risk reduction can also be achieved through the application of strong anti-corrosion coatings. The regular inspection and maintenance of systems operating in hostile environments can identify early indications of fatigue damage well before a catastrophic failure can occur.

6. Use of Fatigue-Resistant Fasteners

For the most demanding applications bolts that are specifically designed to resist fatigue are readily available. These fasteners typically incorporate better material quality and controlled manufacturing processes and superior finish on the surface. Selecting these bolts for specialization can greatly increase the durability of high-stress assembly.

7. Inspection and Maintenance

Regular inspections and maintenance can help to identify fatigue-related issues earlier.

Non-destructive testing (NDT): Techniques such as ultrasonic, magnetic particle or dye penetrant testing detect microcracks prior to their propagation.
Routine Replacing:Replace bolts based on the load history for your operation and the environmental exposure.

8. Advanced Technologies

Modern techniques improve bolt fatigue through simulation and ingenuity.

The Finite Element Analysis (FEA): Simulates the distribution of stress for optimizing bolt layout to reduce resistance to fatigue.
Smart Bolts: Embedded sensors track stress, load, as well as conditions of fatigue in real-time.
Additive Manufacturing: Customizes bolt geometry to decrease stress levels and improve performance.

Applications Requiring High Bolt Fatigue Resistance

Application	Description	Reason for High Fatigue Resistance
Aerospace Engineering	Aircraft aircraft structures, engines as well as landing gear.	Affected by extreme vibrations and loads in flight, takeoff and landing.
Automotive Industry	The engine’s elements, suspension systems and connections to the chassis.	Dynamic loads constantly generated by the road, acceleration and stopping.
Wind Turbines	Bolts on tower sections, blade connections, and nacelles.	Constant cyclic stresses resulting caused by rotational and wind forces for long operating lifetimes.
Bridges and Infrastructure	Bolted joints on steel towers, bridges and massive structures.	Repetition of load by wind, traffic and other environmental influences.
Industrial Machinery	Components of conveyors, rotating equipment and compressors.	Forces cyclic and vibrations when operating at high speeds.
Railway Engineering	Bolts in rail tracks sleepers, and other rolling stock parts.	Cyclic loads resulting from tracks vibrations and train movements.
Oil and Gas Industry	Bolts used in drilling rigs offshore platforms, pipelines and bolts.	Stresses that are repeated from the dynamic operation or pressure fluctuations. severe environmental conditions.
Marine Applications	Bolts in ship engines hulls, as well as offshore equipment.	Constant exposure to the cyclic loads from vibrations and waves with the corrosive environment.
Energy Plants	Bolts used in reactors, turbines and other generators of power.	Frequently occurring cyclic stress due to thermal expansion, changes in pressure, or mechanical deformation.
Construction Equipment	Bolts on excavators, cranes, and other heavily used construction to industrial-grade equipment.	Impacts and loads repeated during the operational cycle.
Sports and Racing	Bolts for bikes, performance vehicles and sporting equipment.	Intense cyclic forces resulting from high speeds and repeatedly stressed conditions.

Final Words

Enhancing bolt fatigue resistance is vital to keeping the security and durability of bolted connections for demanding applications. With the help of optimal materials, innovative design treatment, precision installation, and routine maintenance, industries can minimize the dangers of bolt fatigue failure.
