How to Produce CNC Machining Parts with Complex Geometries?
There has been an increased interest in developing high-precision, elaborate components in fields such as aerospace, automotive, medical devices, and electronics. The production of CNC machining parts with complex geometries not only requires advanced CNC machines, but also sophisticated designing, skilled machining, and properly developed and optimized machining strategies; all of which are essential and useful in advanced CNC machining. The integration of technology, materials, and engineering all in the correct proportions is what makes the achievement of the most complex designs possible.
Table of Contents

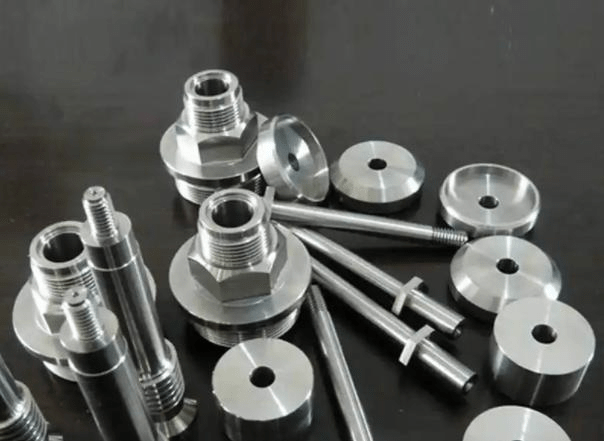

Defining Complex Geometries in CNC Machining

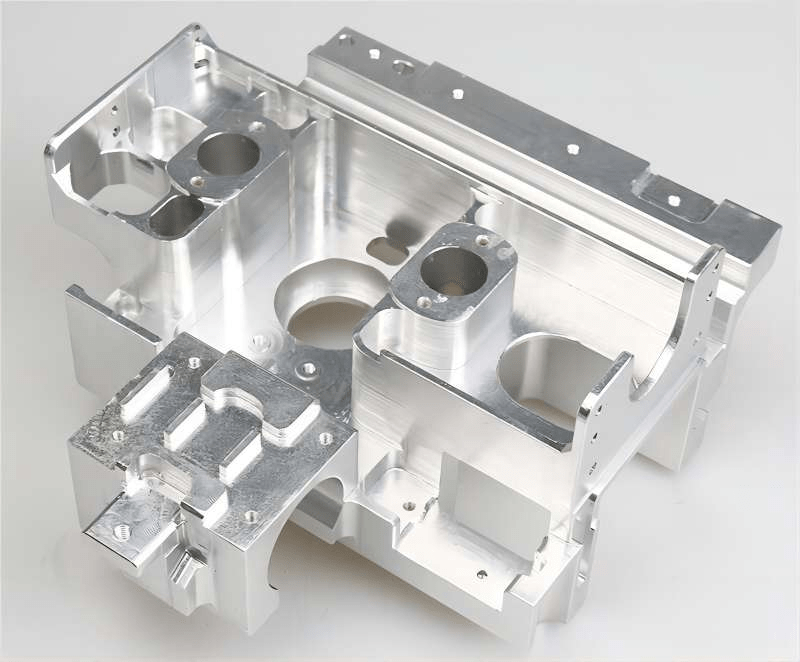

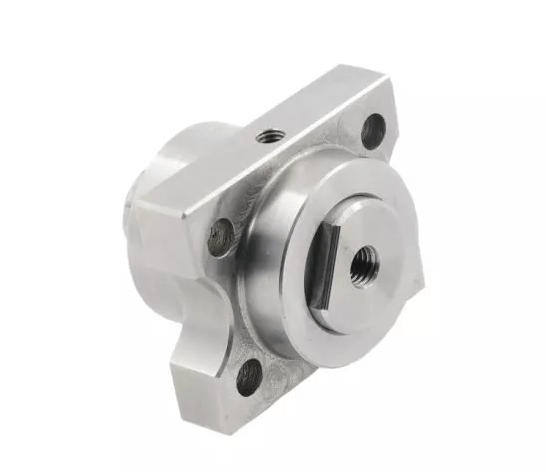

CNC machining Parts with complex geometries implicate the use of multi-axis shapes, undercuts, organic curves, and internal channels as well as the use and the need for simultaneous movement across several axes. More advanced 4-axis and 5-axis CNC machines are necessary for sophisticated designs as the machines need to position the workpiece and tool in different angles for complex machining.
These are also the machines that eliminate the need for repositioning. Turbine blades, impellers, complex orthopedic implants, and sophisticated electronic housings are designed and developed with such machines.

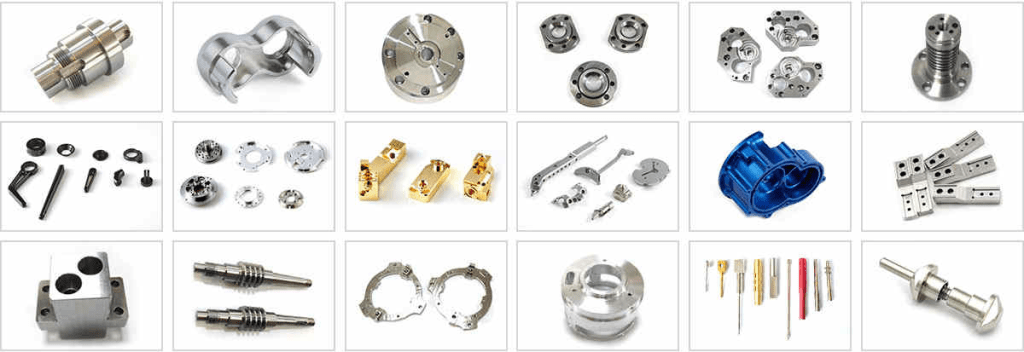

Advanced Technologies Enabling Complex Geometry Designs in CNC Machining Parts
Complex geometry design has moved beyond traditional machining and relies on the integration of advanced technologies that improve design flexibility, precision, and the efficiency of the production process. Technologies such as multi-axis CNC machining, digital simulation, and artificial intelligence are changing the landscape of what modern manufacturing can achieve.

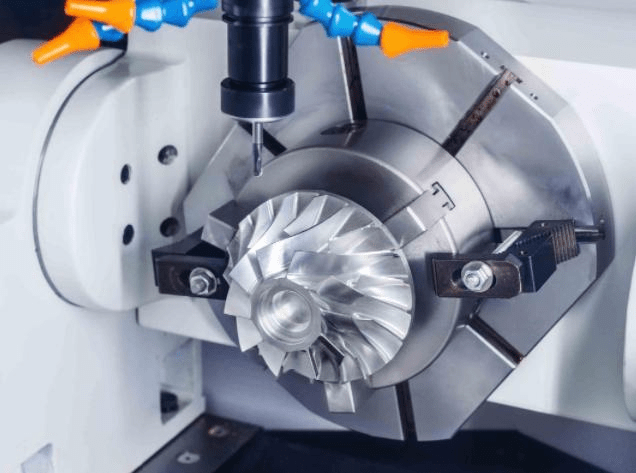

1. Multi-Axis CNC Machining Technology
The ability to produce complex geometries originated with the creation of multi-axis CNC machines. Unlike traditional 3-axis CNC machines, which are limited to linear tool movement, 4-axis and 5-axis systems permit simultaneous movement along several planes. This approach eliminates the need for multiple setups and streamlines the formation of contoured surfaces, deep cavities, and complex undercuts.
Because multi-axis machining allows the tool to approach the workpiece from multiple perspectives, it considerably improves the design a engineer can conceive and, more importantly, it’s the only machining process that maintains close tolerances for the design to work as intended. This technique is essential in the production of complex and precision aerospace turbine blades, medical implants, and automotive engine components.
2. High-Speed Machining (HSM)
With increased spindle speeds and altered feed rates to be ideal to high-speed machining, this HSM technology minimizes the cutting forces and the the heat formation while accomplishing an ideal surface finish. This technology proves to be an ideal tool while working on thin-walled and delicate structures, for HSM machining thin-walled and delicate structures manages to offer an HSM.
The technological advances in the balance of cutting tooling and the rigidity of machine design, HSM offers an ideal solution for the production of sophisticated geometries in a highly accurate and meticulous manner which exceptional machining and capture quality.
3. CAD/CAM Integration and Digital Modeling
The modern CNC machining embodies the truly adopted level of CAD and CAM integration. The modern integrated systems allow engineers to draw detailed CAD models and automatically transform to CAD CAM CNC instructions, which minimizes time wasting to draw a complex work outline.
The system is also able to outline complex geometries, 3D shapes, and internal passages. The development and integration of design systems offer swift geometric alterations in the development while CAD systems capture altered geometries in CNC machined designs. The transition of a designed complex geometry is dominant and seamlessly observed while human effort is commonly reduced in the process.
4. Simulation and Virtual Machining Technologies
Engineers can use digital simulations and virtual machining technologies to fine-tune processes well before any physical machining takes place. These systems can identify and suggest solutions to possible complications, including tool collisions, excessive material removal, and deformation from thermal expansion.
Virtual machining guarantees that all toolpaths are optimized to mitigate waste. This is crucial to reduce setup times. This is especially the case with expensive materials, including titanium and nickel alloys, where unnecessary waste can decrease profits substantially.
5. Advanced Toolpath Strategies and Adaptive Machining
High-level toolpath management is necessary to create advanced geometries. Specifically designed algorithms for advanced CNC toolpath strategies, which include adaptive clearing, constant step-over milling, and rest machining, have been developed to achieve balance cutting conditions for diverse geometries.
Toolpaths are programmed to respond and smoothly adjust to changes in the geometry to decrease tool wear. The dynamic cutting parameters controlled by real-time feedback systems in adaptive machining predict and respond to tool engagement and geometry, providing uniformed advanced machining conditions throughout the run.
6. Precision Tooling and Material-Specific Cutting Solutions
With the advent of sophisticated tooling technology, the design of complex geometries has become a lot more accessible. Modern CNC precision contouring and fine detailing are accomplished through the use of specialized cutting tools like ball-nose end mills, tapered cutters, and micro-tools.
Tool materials have advanced—carbide, ceramic, and polycrystalline diamond (PCD)—which has had a positive effect on tool life and effectiveness on a variety of materials ranging from soft aluminum to hardened steel, titanium, and more. Furthermore, new tool coatings that mitigate friction, control heat, and improve wear resistance have enhanced the reliability of tools over long machining periods.
7. Hybrid Manufacturing Integration
For additive and subtractive manufacturing processes (3D printing and CNC machining, respectively) to operate within a single workflow, hybrid manufacturing is necessary. Engineers can additively manufacture near-net-shape components to which CNC machining can be applied for high-precision finishing.
Hybrid manufacturing decreases material waste and provides more design versatility. Hybrid systems are especially useful for machining components that contain internal features or lattice structures. The combination of additive and subtractive processes broadens the potential for the design of complex geometries.
8. Real-Time Process Monitoring and Automation
Recent innovations in sensor systems and real-time monitoring technologies have been paramount in improving the control of complex operations in machining. Integrated sensors capture and relay data on cutting force, temperature, machine vibration, and tool wear, allowing feedback to the machine controller for clinical automated control.
Such sensor systems inform adjustments to machine cutting parameters including feed rate, spindle speeds, and coolant flow regulation to sustain predetermined optimal machine cutting conditions. In conjunction with real-time automation of robotic handling systems, monitored automation of machining operations fosters even unattended production with constant quality and diminished human error contribution.
9. Artificial Intelligence and Machine Learning Applications
The integration of Artificial Intelligence (AI) and Machine Learning (ML) technologies into CNC machining significantly streamlines operations by incorporating self-optimizing and predictive features. AI technologies synthesize data from previous operations of a machining process, recognize tool wear patterns, predict tool wear, and self-optimize cutting parameters for streamlined automated adjustments for subsequent machining operations.
ML technologies enhance decision-making and reduce the need for manual machining process programming by simulating cutting conditions. Such technologies improve the adaptivity and efficiency of machining process to complex geometries, and accelerate the transition from design to production.

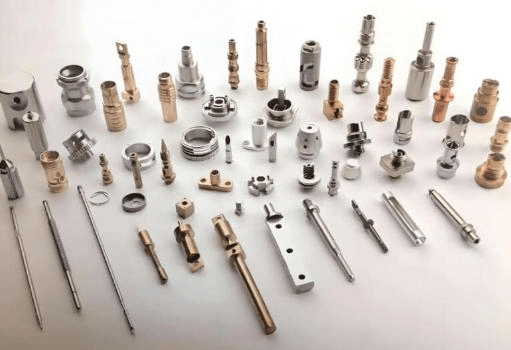

Key Considerations in Producing CNC Machining Parts with Complex Geometries
To manufacture parts from CNC machining with complex geometries successfully, one needs to equip themselves with comprehensive documentation, superior technological systems, and a profound mastery of the material, machining process, and technological systems for machining operations.

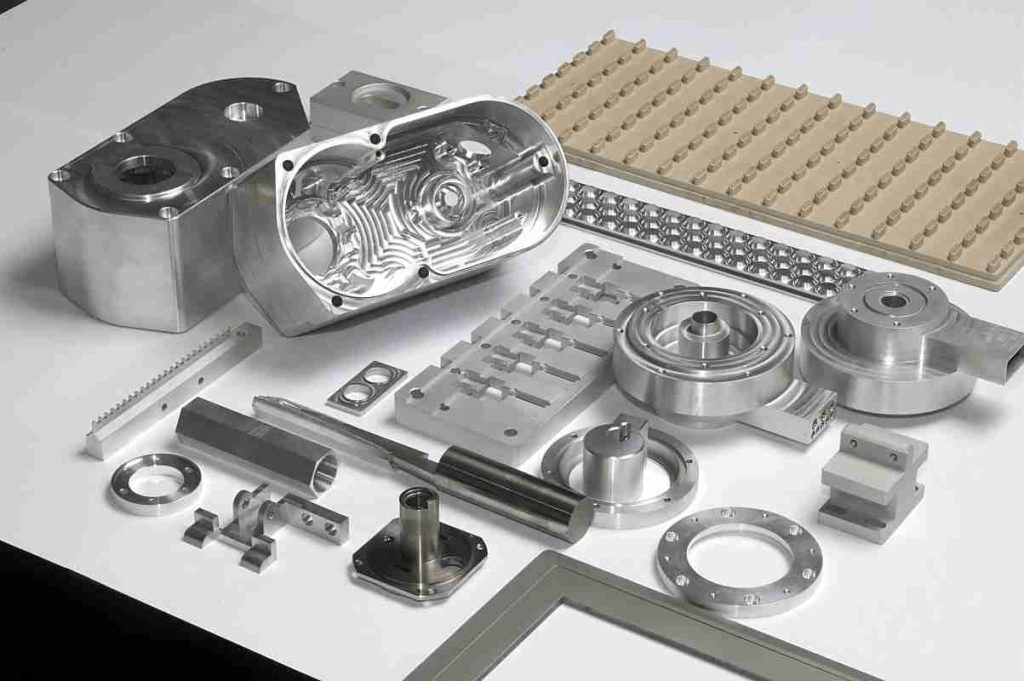

1. Material Selection
Material choice is one of the most critical considerations when producing complex geometries.
Here’s a comprehensive chart providing materials commonly used for producing CNC machining parts with complex geometries.
| Material | Specific Materials | Key Properties | Advantages for Complex Geometries | Applications |
| Aluminum Alloys | 6061, 7075, 2024 | Lightweight, high strength-to-weight ratio, corrosion-resistant | Easy to machine, excellent surface finish, supports tight tolerances | Aerospace components, automotive parts, electronic housings |
| Stainless Steel | 304, 316, 17-4PH | High tensile strength, corrosion and heat resistance | Retains precision during complex milling, durable under stress | Medical instruments, marine components, structural fittings |
| Titanium Alloys | Grade 2, Grade 5 (Ti-6Al-4V) | High strength, lightweight, biocompatible | Handles intricate features under high loads, maintains dimensional stability | Aerospace, medical implants, high-performance automotive parts |
| Copper Alloys | Brass, Bronze, Pure Copper | Excellent electrical and thermal conductivity | Ideal for detailed conductive components, smooth machining performance | Electrical connectors, heat exchangers, decorative components |
| Tool Steel | D2, A2, O1 | High hardness, wear resistance, dimensional stability | Suitable for intricate molds and dies, maintains edge precision | Cutting tools, molds, dies, precision jigs |

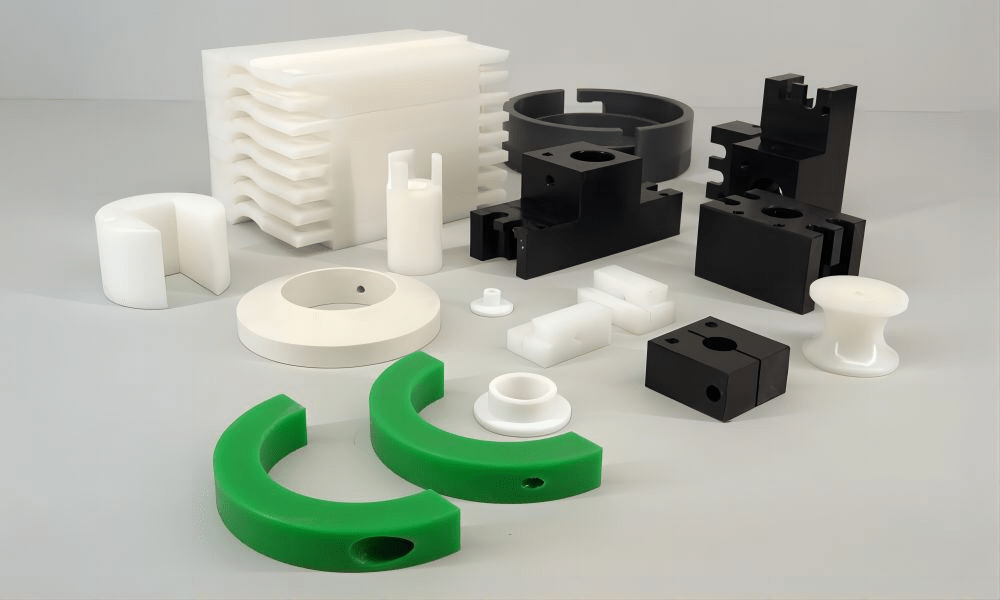

| Plastics | PEEK, Delrin (POM), Nylon, ABS | Lightweight, corrosion-resistant, easy to shape | Enables complex internal channels, reduces machining vibration | Prototyping, medical devices, consumer product housings |
| Composites | Carbon Fiber Reinforced Polymer (CFRP), Glass Fiber Composites | High stiffness, low weight, chemical resistance | Allows complex contouring and lightweight structures | Aerospace panels, sports equipment, structural reinforcements |

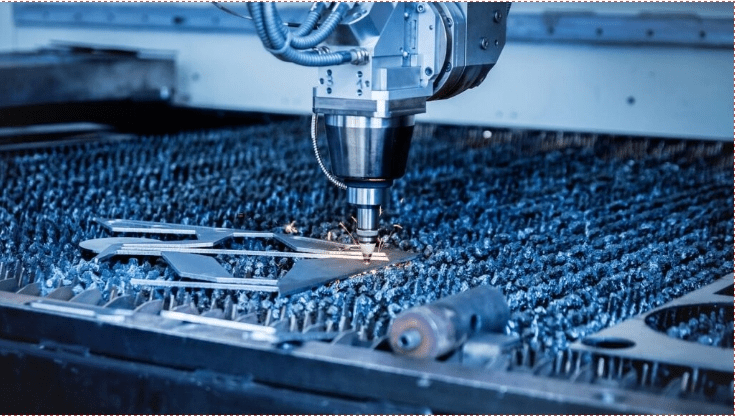

2. Machining Strategy and Toolpath Planning
The design and implementation of advanced toolpath strategies are necessary for effective and precise machining of complex geometries. Multi-axis CNC machining, especially at the 5-axis level, permits the simultaneous machining of different surfaces. This capability eliminates the need for separate repositioning of a part and simplifies the machining of complex geometries.
CNC toolpath planning considers the cutting direction, stepover, and cut depth. This combination is necessary to mitigate tool deflection and control consistent material removal. Surface adaptive toolpaths that alter the cutting path relative to the part geometry in real-time are effective in stabilizing cutting forces and enhancing surface finish.
3. Tooling Considerations
Attaining complex geometries of the highest quality requires the conscious selection of cutting tools. The machining of intricate, curved, and deep geometrics features requires specialized tools, including the ball-nose end mills, tapered cutters, and micro-tools.
The cutting tools’ material and coating, including carbide, ceramic, polycrystalline diamond (PCD), and TiAlN or diamond-like carbon (DLC), are critical to heat resistance, wear, and cutting precision. Dimensional accuracy and tool life are critical in complex operations and are a function of proper tool selection.
4. Workholding and Fixturing
Securing complex components during machining operations is yet another critical consideration. Complex geometry components and thin walled components may require custom fixtures, vacuum-based workholding, and modular clamping approaches that are specifically designed to avoid workpiece deformity and encourage workpiece immobilization.
Well-designed fixtures that offer full and unimpeded access to the workpiece while appropriately aligned in the fixturing system serve to minimize vibration and deflection during machining, and, in the case of very thin structural components, avoid the damaging of fragile components.
5. Heat Management and Cutting Parameters
Heat in excessive amounts will lead to material deformity, tool wear, and dimensional inconsistency. This is particularly true for materials such as titanium and stainless steel that are considered difficult and heat sensitive. This is why the control of the spindle speed, feed rate, and depth of cut are critical in machining operations.
The use of coolant systems, whether high-pressure systems, flood cooling, or other methods, will dissipate heat, assist in chip removal, and help to sustain the material at a uniform temperature. The appropriate cutting parameters and unmanaged heat serve as the primary determinants to achieving the appropriate surface finish and high levels of dimensional accuracy.
6. Process Optimization and Automation
Automation with the aid of servomechanisms for operations such as loading/unloading, tool changing, and in-line inspections enhances the rate of production while minimizing manual input and sustaining the quality of the complex geometry.
The use of CAM software, machine simulation, and adaptive control strategies are termed process optimization and offer the added benefit of material reduction during machining. The unison of process automation and advanced control strategies empowers the automation of complex machining work while retaining the necessary precision.
Challenges and Solutions in Producing Complex CNC Machining Parts
| Challenge | Description | Solution |
| Tool Accessibility | Difficulty reaching deep cavities, undercuts, or intricate features | Use multi-axis CNC machines (5-axis or more) and specialized long-reach tools |
| Dimensional Accuracy | Maintaining tight tolerances in intricate designs is difficult due to tool deflection or vibration | Adaptive machining, real-time error compensation, and rigid fixturing |
| Complex Toolpath Programming | Multi-axis and intricate features require advanced programming | Advanced CAM software with simulation and automatic toolpath optimization |
| Material Deformation | Thin walls or delicate structures deform under cutting forces | Optimized clamping, low-force machining strategies, and controlled cutting parameters |
| Heat Generation and Tool Wear | Prolonged cutting in confined areas produces heat and wears tools | High-performance coated tools, coolant systems, and optimized feeds/speeds |
| Chip Evacuation | Chips accumulate in deep or narrow areas, affecting machining | High-pressure coolant, chip breakers, and specialized tool geometries |
| Surface Finish Quality | Maintaining smooth surfaces on curves and contours is challenging | High-speed finishing passes, fine stepover strategies, and adaptive toolpaths |
| Fixture and Workholding Complexity | Irregular part shapes are hard to secure without distortion | Custom fixtures, vacuum or modular workholding solutions |
| High Production Costs | Advanced tooling, multi-axis setups, and longer machining times increase costs | Automation (robotic loading/unloading), process optimization, and hybrid manufacturing |
Quality Assurance and Inspection Techniques for Complex CNC Machining Parts
The introduction of CNC machining has revolutionized complex part manufacturing, particularly within the aerospace, automotive, medical instruments, and electronics industries. Parts within these industries contain complex geometries consisting of intricate curves, deep holes, undercuts, and tight tolerances.
For this reason, the need to look at the complexity of high-precision CNC parts cannot be overemphasized. The need to maintain performance, contain the cost of the parts, and uphold safety standards calls for the use of effective Quality Assurance (QA) and advanced level inspection methods for CNC parts to minimize the risk at the designed tolerances.
- Dimensional Inspection Techniques
Accurate measurement of complex geometries requires advanced inspection methods.
This chart offers dimensional inspection techniques for CNC machining parts with complex geometries
| Inspection Technique | Description | Advantages | Applications |
| Coordinate Measuring Machine (CMM) | Uses a probing system to capture precise coordinates of part features | High accuracy, capable of measuring intricate surfaces and deep cavities | Aerospace components, precision medical devices, automotive parts |
| Laser Scanning / 3D Optical Metrology | Non-contact scanning captures millions of surface points for 3D modeling | Fast, non-contact, captures complex curves and internal geometries | Complex housings, turbine blades, electronics enclosures |
| Profilometers (Contact and Non-Contact) | Measures surface profiles and roughness along a line or area | Quantitative surface finish assessment, detects micro-defects | Curved or contoured surfaces, molds, and dies |
| Structured Light Scanning | Projects patterned light onto the part to capture 3D surface geometry | Rapid acquisition, precise surface mapping, suitable for small and large parts | Prototyping, reverse engineering, quality control of contoured parts |
| Photogrammetry | Uses multiple images to reconstruct 3D geometry | Portable, scalable, effective for large or awkward parts | Aerospace assemblies, automotive body panels |
| In-Process CNC Probing | Probes part during machining to check dimensions in real time | Detects deviations early, reduces scrap, allows adaptive machining | Multi-axis machining of complex cavities, aerospace and medical parts |
- In-Process Monitoring and Feedback Control
Quality assurance and inspection interwoven within the machining processes increases the level of precision while improving the overall workflow within the system. Real-time feedback during machining is possible due to the ability of the system to monitor and control spindle load, vibration, cutting, and thermal as well as other expected safety parameters.
The system recognizes worn-out tools or misalignments and makes corrective actions to violations or deflections before defects form. In-process monitoring contributes positively to the organization by improving the bottom line and aiding the organization in achieving its targets and retaining top standards through the designed complex geometries.

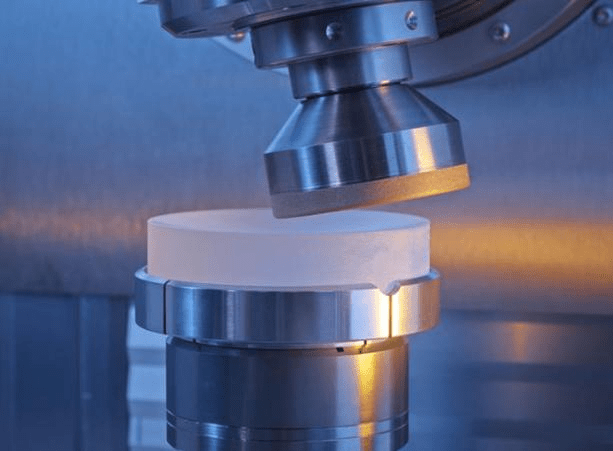

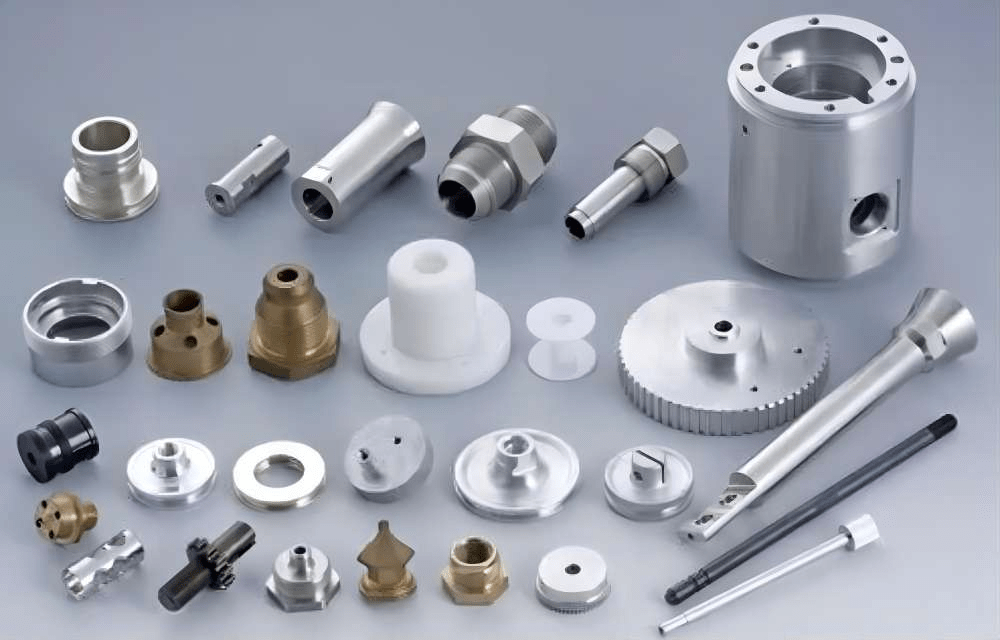

- Surface Finish and Visual Inspection
The surface quality of CNC parts is often as critical as their dimensional accuracy, particularly for components that interact with fluids or require tight mechanical fits.
This chart provides common methods used for surface finish and visual inspection of CNC parts with complex geometries
| Inspection Method | Description | Advantages | Applications |
| Optical Microscopy | Magnified visual examination of surface features to detect scratches, burrs, or imperfections | High detail resolution, detects micro-defects not visible to the naked eye | Precision medical devices, micro-components, aerospace parts |
| Non-Contact Surface Profilometry | Uses laser, white-light, or confocal systems to measure surface roughness and contours | Accurate, repeatable, suitable for delicate or complex surfaces | Curved surfaces, turbine blades, intricate housings |
| 3D Optical Surface Mapping | Creates detailed 3D maps of surfaces for analyzing texture, waviness, and contour fidelity | Comprehensive surface assessment, captures complex geometries quickly | Automotive components, aerospace panels, molds and dies |
| Visual Inspection by Trained Operators | Manual assessment against reference standards under proper lighting | Quick, adaptable to unusual shapes, identifies obvious defects | General quality control, aesthetic features, functional surfaces |
| High-Magnification Digital Imaging | Digital cameras capture and analyze high-resolution images of the surface | Enables documentation, comparison, and remote evaluation | Electronics housings, precision machined parts, decorative finishes |
- Material Integrity Assessment
Each individual part made on a CNC machine undergoes an evaluation of the materials used based on the physical and environmental stresses endured. Quality assurance for materials used in CNC machines needs to account for abrasion, high temperatures, and aggressive chemical exposure. Non-destructive evaluation techniques such as ultrasonic and X-ray methods as well as CT scans help identify voids, cracks, and inclusions prior to machine part destruction.
Furthermore, the required mechanical properties can also be assessed through hardness testing and evaluation of microstructural constituents. This evaluation ascertains that the part will function without failures for the projected operational demand.
- Digital Analysis and Reverse Engineering
Now-a-days, the final steps of quality assurance employ advanced technologies to assess a machined CNC part against the original design to ensure the part meets the original design specification. Design files stored in a CAD system are used to scan and overlay machined components to visualize discrepancies and to assess tolerances.
This also aids in identification of the zones that need modification. Part geometries are also recreated through reverse engineering techniques. This validation of part reproduction drives down CNC machine design to a single optimized design. Complex, multi-surface components and CNC machines are the most benefited from the implementations of the described techniques in CNC machines. Digital analysis streamlines the design, and reverse engineering drives down to the single optimized design.
- Documentation and Traceability
For quality control and ensuring adherence to regulations, keeping thorough inspection records is vital. Such documentation will include measurement reports, analysis of deviations, records of calibrations, and inspection logs. This form of documentation aids in traceability and demonstrates to the manufacturers the compliance to industry standards, the history of the parts, and evidence for the audits. This type of documentation is critical for regulated industries, especially the aerospace and medical devices industries, where the risks of safety and reliability are high.
- Automation in Inspection
Automation is now vital to the modern quality assurance process. Robotic inspection systems integrated with CMMs or 3D scanners are able to repetitively take measurements with great precision and consistency thereby minimizing the probability of human error. Such automated inspections makes it possible to mass-produce complex components while maintaining uniform quality throughout various production runs. When combined with in-process monitoring, automation provides the opportunity to continuously improve and become operationally more efficient so that manufacturers are able to increase production while maintaining precision.
Summary
Producing CNC machining parts with complex geometries requires a combination of creativity, accuracy, and engineering know-how sophisticated processes. Using high-end multi-axis machines, smart software, and tailored machining techniques, production takes detailed digital blueprints and transforms them into exact and functional solid components. With continual improvements in technology, CNC machining will always be an important and dedicated technology in advanced manufacturing and allow all industries to incorporate new, intricate, and sophisticated designs.
