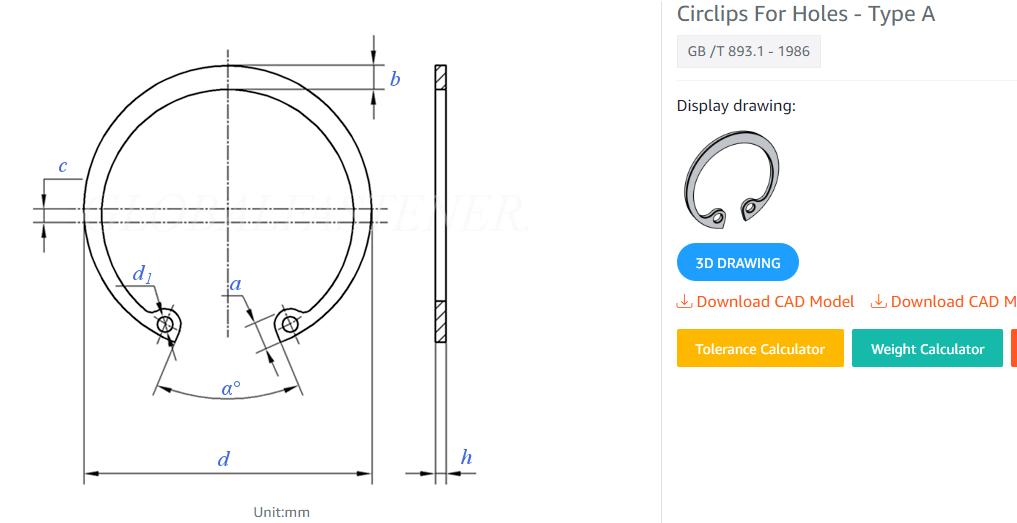

Specification of Internal Circlips
Size
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
24
d
Nominal Size
8.7
9.8
10.8
11.8
13
14.1
15.1
16.2
17.3
18.3
19.5
20.5
21.5
22.5
23.5
25.9
min
8.6
9.7
10.7
11.7
12.9
14
15
16.1
17.2
18.17
19.37
20.37
21.37
22.37
23.37
25.69
max
9.06
10.16
11.16
12.16
13.36
14.46
15.46
16.56
17.66
18.72
19.92
20.92
21.92
22.92
23.92
26.32
h
Nominal Size
0.6
0.6
0.8
0.8
0.8
0.8
1
1
1
1
1
1
1
1
1
1.2
min
0.53
0.53
0.7
0.7
0.7
0.7
0.87
0.87
0.87
0.87
0.87
0.87
0.87
0.87
0.87
1.07
max
0.64
0.64
0.84
0.84
0.84
0.84
1.05
1.05
1.05
1.05
1.05
1.05
1.05
1.05
1.05
1.25
d1
1
1
1.5
1.5
1.5
1.7
1.7
1.7
1.7
1.7
1.7
2
2
2
2
2
a
45°
45°
45°
45°
45°
45°
45°
45°
45°
45°
45°
45°
45°
45°
45°
45°
C
min=nominal size
0.3
0.3
0.4
0.4
0.4
0.4
0.5
0.5
0.5
0.5
0.5
0.6
0.6
0.6
0.6
0.6
max
0.335
0.335
0.44
0.44
0.44
0.44
0.54
0.54
0.54
0.54
0.54
0.64
0.64
0.64
0.64
0.64
a
max
2.33
2.48
2.98
2.98
3.08
3.43
3.43
3.48
3.53
3.56
3.76
4.26
4.26
4.26
4.26
4.36
b
≈
1
1.2
1.7
1.7
1.7
1.7
2.1
2.1
2.1
2.1
2.1
2.5
2.5
2.5
2.5
2.5
per 1000 units ≈kg
0.09
0.1
0.23
0.26
0.28
0.31
0.5
0.54
0.57
0.61
0.64
0.8
0.84
0.88
0.92
1.21
Size
25
26
28
30
31
32
34
35
36
37
38
40
42
45
47
48
d
Nominal Size
26.9
27.9
30.1
32.1
33.4
34.4
36.5
37.8
38.8
39.8
40.8
43.5
45.5
48.5
50.5
51.5
min
26.69
27.69
29.85
31.85
33.15
34.15
36.25
37.55
38.55
39.55
40.55
43.11
45.11
48.11
50.04
51.04
max
27.32
28.32
30.6
32.6
33.9
34.9
37
38.3
39.3
40.3
41.3
44.4
46.4
49.4
51.6
52.6
h
Nominal Size
1.2
1.2
1.2
1.2
1.2
1.2
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
min
1.07
1.07
1.07
1.07
1.07
1.07
1.35
1.35
1.35
1.35
1.35
1.35
1.35
1.35
1.35
1.35
max
1.25
1.25
1.25
1.25
1.25
1.25
1.56
1.56
1.56
1.56
1.56
1.56
1.56
1.56
1.56
1.56
d1
2
2
2
2
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
3
3
3
3
a
45°
45°
45°
45°
45°
45°
45°
45°
45°
45°
45°
45°
45°
45°
45°
45°
C
min=nominal size
0.7
0.7
0.8
0.8
0.8
0.8
0.9
0.9
0.9
0.9
0.9
1
1
1.2
1.2
1.2
max
0.745
0.745
0.845
0.845
0.845
0.845
0.945
0.945
0.945
0.945
0.045
1.06
1.06
1.26
1.26
1.26
a
max
4.36
4.36
4.5
4.6
5.45
5.45
5.5
5.5
5.65
5.65
5.65
6.1
6.9
6.9
7
7.1
b
≈
2.8
2.8
3.2
3.2
3.2
3.2
3.6
3.6
3.6
3.6
3.6
3.6
3
3
3
3
per 1000 units≈kg
1.39
1.45
1.63
1.9
1.97
2.02
3.04
3.13
3.22
3.31
3.39
4.13
4.33
5.24
5.47
5.56
Size
50
52
55
56
58
60
62
63
65
68
70
72
75
78
80
82
d
Nominal Size
54.2
56.2
59.2
60.2
62.2
64.2
66.2
67.2
69.2
72.5
74.5
76.5
79.5
82.5
85.5
87.5
min
53.74
55.74
58.74
59.74
61.74
63.74
65.74
66.74
68.74
72.04
74.04
76.04
79.04
81.96
84.96
86.96
max
55.3
57.3
60.3
61.3
63.3
65.3
67.3
68.3
70.3
73.6
75.6
77.6
80.6
83.8
86.8
88.8
h
Nominal Size
2
2
2
2
2
2
2
2
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
min
1.82
1.82
1.82
1.82
1.82
1.82
1.82
1.82
2.28
2.28
2.28
2.28
2.28
2.28
2.28
2.28
max
2.06
2.06
2.06
2.06
2.06
2.06
2.06
2.06
2.57
2.57
2.57
2.57
2.57
2.57
2.57
2.57
d1
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
α
45°
45°
45°
45°
36°
36°
36°
36°
36°
36°
36°
36°
36°
36°
36°
30°
c
min=nominal size
1.2
1.2
1.2
1.3
1.3
1.3
1.3
1.3
1.3
1.4
1.4
1.4
1.6
1.6
1.7
1.7
max
1.26
1.26
1.26
1.36
1.36
1.36
1.36
1.36
1.36
1.46
1.46
1.46
1.66
1.66
1.76
1.76
a
max
7.35
7.35
7.35
7.35
7.35
7.35
7.35
7.35
8.75
8.8
8.8
8.8
9
9.4
9.7
9.7
b
≈
3
3
3
3
3
5.2
5.2
5.2
5.2
5.7
5.7
5.7
6.3
6.3
6.8
6.8
per 1000 units ≈kg
7.4
7.68
8.49
9.67
10.28
10.62
10.97
11.48
14.63
16.89
17.37
17.84
20.2
20.84
23.34
24.32
Size
85
88
90
92
95
98
100
102
105
108
110
112
115
120
125
130
d
Nominal Size
90.5
93.5
95.5
97.5
100.5
103.5
105.5
108
112
115
117
119
122
127
132
137
min
89.96
92.96
94.96
96.96
99.96
102.96
104.96
107.46
111.46
114.46
116.46
118.46
121.37
126.37
131.37
136.37
max
91.8
94.8
96.8
98.8
101.8
104.8
106.8
109.3
113.3
116.3
118.3
120.3
123.5
128.5
133.5
138.5
h
Nominal Size
2.5
2.5
2.5
2.5
2.5
2.5
2.5
3
3
3
3
3
3
3
3
3
min
2.28
2.28
2.28
2.28
2.28
2.28
2.28
2.78
2.78
2.78
2.78
2.78
2.78
2.78
2.78
2.78
max
2.57
2.57
2.57
2.57
2.57
2.57
2.57
3.07
3.07
3.07
3.07
3.07
3.07
3.07
3.07
3.07
d1
3
3
3
3
3
3
3
4
4
4
4
4
4
4
4
4
α
30°
30°
30°
30°
30°
30°
30°
30°
30°
30°
30°
30°
30°
30°
30°
30°
C
min=nominal size
1.7
1.8
1.8
1.9
1.9
1.9
1.9
2
2
2.2
2.2
2.3
2.3
2.3
2.5
2.7
max
1.76
1.86
1.86
1.96
1.96
1.96
1.96
2.06
2.06
2.26
2.26
2.36
2.36
2.36
2.56
2.76
a
max
9.7
9.7
9.7
9.7
9.7
10.7
10.7
10.75
11.25
11.25
11.25
11.25
11.35
11.45
11.45
11.45
b
≈
6.8
7.3
7.3
7.7
7.7
7.7
7.7
8.1
8.1
8.8
8.8
9.3
9.3
9.3
10
10.7
per 1000 units≈kg
25.18
27.82
28.7
30.64
31.89
33.15
34.09
43.38
45.82
50.09
50.99
54.61
56.43
58.77
65.48
72.53
Size
135
140
145
150
155
160
165
170
175
180
185
190
195
200
d
Nominal Size
142
147
152
158
164
169
174.5
179.5
184.5
189.5
194.5
199.5
204.5
209.5
min
141.37
146.37
151.37
157.37
163.37
168.37
173.87
178.87
183.78
188.78
193.78
198.78
203.78
208.78
max
143.5
148.5
153.5
159.5
165.5
170.5
176
181
186.2
191.2
196.2
201.2
206.2
211.2
h
Nominal Size
3
3
3
3
3
3
3
3
3
3
3
3
3
3
min
2.78
2.78
2.78
2.78
2.78
2.78
2.78
2.78
2.78
2.78
2.78
2.78
2.78
2.78
max
3.07
3.07
3.07
3.07
3.07
3.07
3.07
3.07
3.07
3.07
3.07
3.07
3.07
3.07
d1
4
4
4
4
4
4
4
4
4
4
4
4
4
4
a
30°
30°
30°
30°
30°
30°
30°
30°
30°
30°
30°
30°
30°
30°
C
min=nominal size
2.7
2.7
2.75
2.8
2.9
2.9
2.95
3.1
3.2
3.2
3.3
3.3
3.3
3.3
max
2.76
2.76
2.81
2.86
2.96
2.96
3.01
3.16
3.26
3.26
3.36
3.36
3.36
3.36
a
max
11.45
11.45
12.45
12.95
13.45
13.45
13.5
13.5
13.6
14.1
14.1
14.1
14.1
14.1
b
≈
10.7
10.7
10.9
10.9
11.6
11.6
11.8
12.3
12.7
12.8
12.9
13.1
13.1
13.2
per 1000 units ≈kg
75.3
78.06
83.13
88.67
94.93
97.92
103.4
110.7
116.9
121.6
124.2
129.5
133.6
138.3
Applications of Internal Circlips The operation method of internal circlips is simple, the structure is simple and reliable, and the cost is low. It is widely used in aviation, shipbuilding, automobile manufacturing, electrical appliances, chemical machinery, railway, construction engineering, mechanical and electrical equipment installation, instruments and meters, mechanical equipment, medical treatment, chassis cabinet, furniture, electronics and other industries.

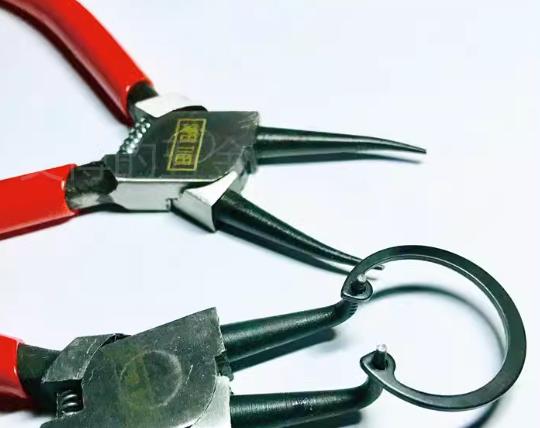

Installation Methods of Internal Circlips 1, The installation must use the circlip pliers, insert the pliers mouth into the clamp hole of the stop ring, and clamp the stop ring, in order to put it into the pre-processed circular hole groove;
2, Install the hole with the external circlips on the tooling, and then through a hole to reduce the stop ring to the size of the installation hole and push the steel wire stop ring into the installation hole.
Advantages of Internal Circlips High tensile, the hardness and elasticity of qualified; The surface is flat, with standard pliers holes ; No burrs in the corner. Materials we can use on Internal Circlips Related Products Related News
