Material-specific CNC Drilling for the Aerospace Industry

The aerospace industry demands exceptional precision, safety, and reliability in every manufactured component. From engine panels and fuselage components to landing gears and control surfaces, each drilled hole has to meet strict quality standards. Material-specific CNC drilling has proven an indispensable solution in meeting this challenge as manufacturers tailor CNC drilling techniques specifically for each aerospace material available to them.

The Role of CNC Drilling in Aerospace Manufacturing

CNC drilling employs sophisticated, automated equipment to make holes that are consistent in quality and exact tolerances. In aerospace, drilling is responsible for a large proportion of manufacturing jobs, which includes the assembly of fastener holes as well as cooling channels for turbine blades, as well as intricate designs for Avionics systems. Material-specific CNC drilling concentrates on the alignment of tool geometry as well as coats and cutting parameters and cooling techniques to the characteristics of the substrate to eliminate defects and reduce the amount of waste.

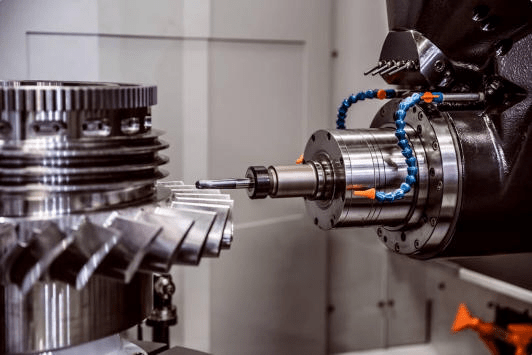

CNC Drilling for Aerospace Manufacturing

Common Aerospace Materials and Their Applications

Material	Description	Typical Aerospace Applications
Aluminum Alloys	Lightweight, corrosion-resistant, good machinability	Skins for fuselage and wing structures, as well as interior panels
Titanium Alloys	Excellent strength-to-weight ratio, outstanding heat resistance	Landing gear, engine components, fasteners
Carbon-Fiber-Reinforced Polymer (CFRP)	Light and durable composites, great resistance to fatigue	Tail sections, fuselage panels and wing spars
Glass-Fiber-Reinforced Polymer (GFRP)	Cost-effective composite with strong durability and resistance to corrosion	Fairings, roodomes, interior components
Superalloys (e.g., Inconel, Hastelloy)	Outstanding resistance to corrosion and heat remains strong even at extreme temperatures	Blades for turbines and exhaust systems and engine casings
Hybrid Stacks (CFRP/Titanium, CFRP/Aluminum)	Combinations of layers of materials for strength and weight reduction	Wing structures, fuselage assemblies, floor beams

Challenges and Solutions for Material-specific CNC Drilling in the Aerospace Industry

As aerospace materials vary significantly, one approach cannot always meet all applications. Recognizing and responding to each material’s individual challenges are integral in maintaining quality, efficiency and cost management.

Drilling Aluminum Alloys

Challenge: Aluminum alloys are extensively employed for fuselage skins, wingspans and interior structures due to their light weight and corrosion-resistant properties. When drilling, they can create an built-up edge (BUE) within the tools, causing a decrease in the quality of the hole and also the surface finish. Clogging of chips is a common problem that can cause wear on the tool and dimensional errors.
Solution: Using high-helix, sharp carbide CNC drills that have polished flutes reduces the formation of BUE. The high spindle speed, when combined with efficient flood cooling or mist lubrication guarantee an easy chip removal and clean holes.

Drilling Titanium Alloys

Challenge: Titanium alloys are critical for high-temperature, high-stress parts such as landing gears and engine components. Their thermal conductivity is low, which leads to a concentration of heat near edges of cutting, increasing tool wear and posing a greater risk of hardening the work.
Solution: Using coated carbide drills that have TiAlN as well as AlTiN coatings can help reduce wear and heat. Lower spindle speeds and greater feed rates, paired with a high-pressure through-spindle coolant reduce heat build-up and prolong the life of the tool while ensuring the precision of dimensional measurements.

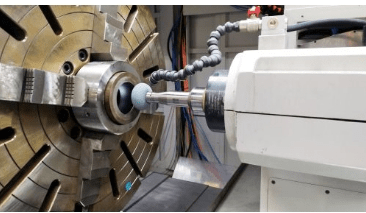

CNC Machining in Aerospace Manufacturing

Drilling Composite Materials

Challenge: Carbon-fiber-reinforced polymers (CFRP) and glass-fiber-reinforced polymers (GFRP) are valued for their high strength-to-weight ratios but pose drilling challenges. The abrasive fibers they produce can quickly wear down tools, and fiber pull-out or delamination could occur at the entrance and at the exit of the holes.
Solution: The diamond-coated and PCD (polycrystalline diamond) drills are wear-resistant with the optimized feed rates and specific point geometries reduce delamination during CNC drilling operations. A controlled rate of entry and exit help safeguard the fiber layers along with dust elimination systems ensure the safety of the operator and ensure cleanliness in the workspace.

Drilling Hybrid Stack Materials

Challenge: Hybrid stacks, like CFRP/Titanium, or CFRP/Aluminum combine materials that have contrasting characteristics in terms of hardness and thermal which makes drilling a bit more difficult. Different cutting behaviors could result in burrs, fiber damage, and a sloppy surface finish.
Solution: Double-margin drills, step drills and different feeding rates between layers can help keep holes in good shape. CNC drilling techniques using Peck improve chip removal and decrease the stress on the thermal system, ensuring accurate drilling of multiple materials without causing damage.

Drilling Superalloys

Challenge: Superalloys such as Inconel and Hastelloy are extremely tough and heat-resistant, employed in turbine blades as well as engine casings. Their inability to withstand cutting forces could cause excessive vibration, wear on the tool, and distortion of the dimensional dimension.
Solution: Fixed fixturing that is rigid and high-performance tools with sophisticated coatings are crucial. Coolant delivery at high pressure and flexible feed control help reduce wear and heat and monitoring systems help stop tool breaking and ensure an even quality hole.

Leveraging Automation and Monitoring

Modern CNC drilling benefits from adaptive control systems and real-time tool wear monitoring. These systems automatically adjust spindle and feed speeds in accordance with the conditions of cutting which prevents tool failure and guaranteeing constant results. Over time, the accumulated information allows for constant optimization of drilling techniques that are specific to the material.

Benefits of Material-specific CNC Drilling in the Aerospace Industry

Enhanced Hole Quality

Different materials in aerospace react differently to the drilling force, heat and vibration. Specific approaches to the material ensure that the correct spindle speed, feed rate, and tool geometries that result in more clean holes, precise diameters, and minimal imperfections like burrs, delamination and fiber pull-out.

Extended Tool Life

Making sure you use the right geometries and coatings for a particular material can greatly decrease the wear and tear. For instance, TiAlN coated carbide tools are superior when it comes to titanium-coated drilling whereas diamond-coated drills are superior in composites. This method is targeted to reduce the frequency of tool replacement and decreases the overall costs of tooling.

Improved Production Efficiency

Optimizing the CNC drilling strategy for each material can reduce cycle times without the quality. Drilling at high speed in aluminium or with adaptive the control of feed in superalloys permits faster production, while also supporting the strict schedules of aerospace production.

Reduced Scrap and Rework

Material-specific CNC drilling reduces the chance of errors which could make a piece inoperable. By preventing surface imperfections and dimensional variations, manufacturers decrease scrap rates and reduce work rework, which directly affects costs and time to delivery.

Compliance with Aerospace Standards

The aerospace industry has exact tolerances and quality requirements for each hole that is made. Material-specific drilling makes sure that each CNC machined component has high-precision hole, in compliance with these standards or more and ensuring airworthiness certification and regulatory conformity.

Adaptability to Complex Designs

Modern aircraft usually contain hybrid stacks and advanced composites. Material-specific drilling allows seamless adaption to these materials that are complex and ensures consistent results when drilling through layers that have different properties.

Future Outlook of Material-specific CNC Drilling for the Aerospace Industry

The future of CNC drilling in this industry will be shaped by innovations in automation, tool technology, and adaptive process control.

Integration of AI and Machine Learning

Machine learning and artificial intelligence are expected to play a crucial part in the particular material-specific CNC drilling. Through the analysis of historical drill data, AI algorithms can predict wear and tear on tools, as well as optimize the spindle speed and feed rates in real-time and avoid problems before they happen. This approach to predict downtime is less time-consuming and guarantees consistent quality of holes across a variety of aerospace materials.

Advanced Tooling Materials and Coatings

The advancement of stronger cutting tools and specialized coatings will continue to improve drilling efficiency. Diamond-coated, polycrystalline and heat-resistant coatings will enable manufacturers to effectively drill difficult materials such as titanium, superalloys and composite stacks, while also extending the tool’s lifespan and decreasing cost.

Hybrid Machining Techniques

Mixing conventional CNC drilling with cutting-edge techniques such as ultrasonic-assisted drills or laser-assisted machine will result in higher efficiency and precision. Hybrid methods are especially promising for hybrid stacks made of composites which can reduce burrs, delamination and fiber pull-outs while ensuring speedy cycles.

Combination of Laser Technology with CNC Drilling

Real-Time Monitoring and Adaptive Control

The future CNC drilling equipment will incorporate real-time monitoring and controlled by adaptive technology. Sensors that are embedded into the spindle of the machine and in the tooling can monitor forces, vibrations, and temperatures, and automatically adjust parameters to ensure optimal cutting conditions. This guarantees a superior quality hole and lowers the risk of tool failure, despite working with a variety of challenging materials.

Sustainability and Efficiency Considerations

The aerospace industry is increasingly focusing on sustainability, specific materials for CNC drilling will develop to lower energy consumption and reduce the use of coolants and reduce production waste. Effective drilling techniques, coupled with tools that last longer can contribute to greener manufacturing processes while not sacrificing the performance.

Preparing for New Advanced Aerospace Materials

The future of CNC machining will be shaped by innovations in automation, tool technology, and adaptive process control. Manufacturers that invest in adaptable CNC tools, cutting-edge technology as well as data-driven process optimization will be the best equipped to take on the challenges ahead and retain the competitive advantage.

Summary

Material-specific CNC drilling is crucial for achieving precision, efficiency, and reliability in aerospace manufacturing. By tailoring tools, parameters, and techniques to each material, manufacturers assure high-quality holes, longer tool life and reduced scrap. As aerospace materials continue to advance with ever more intricate designs requiring intricate precision parts to produce, drilling techniques that meet stringent industry standards may become unavoidable to stay competitive in manufacturing.
