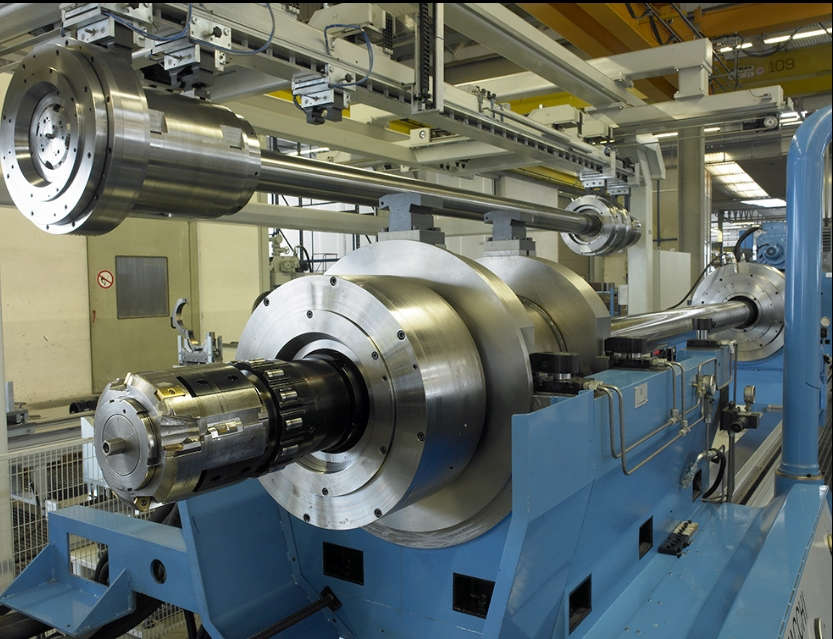

Cryogenic Cooling Techniques in CNC Drilling of Heat-Sensitive Materials

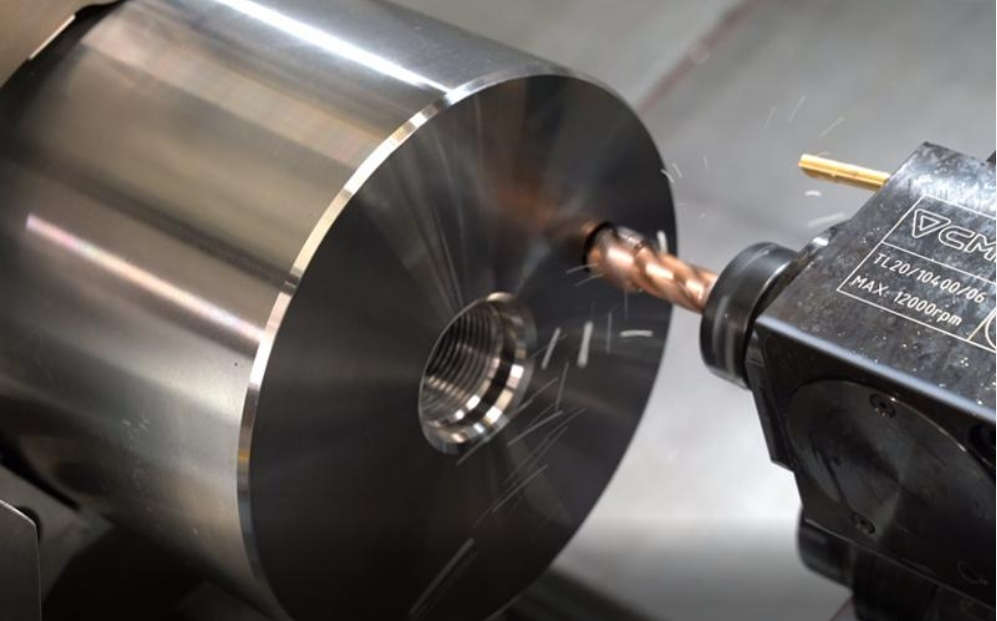

For precision manufacturing, CNC drilling is a vital process used across various industries. However, drilling heat-sensitive materials like certain polymers, composites, and advanced alloys presents significant challenges. Excessive heat generated during drilling can lead to material degradation, reduced tool life, and poor surface quality. Cryogenic cooling techniques have emerged as an effective solution to mitigate these issues, enhancing the performance and longevity of both the tools and materials, and offering significant benefits in the CNC drilling of heat-sensitive materials.
Why Choose Cryogenic Cooling Techniques in CNC Drilling of Heat-Sensitive Materials
The Challenges of Machining Heat-Sensitive Materials
Heat-sensitive materials, such as titanium alloys, carbon fiber composites, and specific polymers, can suffer from several issues when exposed to high temperatures during machining:
- Thermal Degradation: High temperatures can alter the chemical properties of materials, leading to reduced mechanical performance and structural integrity.
- Dimensional Inaccuracy: Heat can cause expansion and contraction, resulting in parts that do not meet precise tolerances.
- Tool Wear: Excessive heat accelerates tool wear, leading to increased costs and downtime for tool replacement.
- Surface Defects: Heat can cause burns, cracks, and other surface defects, compromising the quality of the finished product.
Cryogenic Cooling in CNC Drilling: A Solution
Cryogenic cooling in CNC drilling processes involves the use of cryogens, such as liquid nitrogen, to cool the drill and workpiece to extremely low temperatures during machining. This method improves tool life and cutting performance by reducing heat generation, minimizing thermal expansion, and enhancing lubrication. Cryogenic cooling also helps in maintaining the integrity of the workpiece material, reducing wear and tear on the drill, and allowing for more precise and efficient drilling. It is particularly beneficial when working with hard-to-machine materials like titanium alloys and composites.
Benefits of Cryogenic Cooling
Cryogenic cooling, which employs extremely low temperatures, offers a multitude of advantages across various industrial applications.
1. Enhanced Material Integrity
- Thermal Protection: By rapidly absorbing and dissipating heat, cryogenic cooling acts as a thermal shield, safeguarding materials from the detrimental effects of excessive heat. This is particularly crucial in processes involving high-temperature generation, such as machining and welding.
- Reduced Thermal Degradation: Maintaining a low temperature environment prevents material properties from deteriorating due to heat-induced changes. This ensures consistent performance and reliability of components, prolonging their lifespan and reducing the risk of failure.
2. Extended Tool Life
- Reduced Wear: Lower temperatures significantly decrease friction between cutting tools and the workpiece. This reduction in frictional forces translates to less wear and tear on the tools, extending their operational life and minimizing downtime for replacements.
- Minimized Thermal Shock: Cryogenic cooling effectively prevents the rapid temperature fluctuations that can cause thermal shock, a leading cause of tool failure. By maintaining a relatively constant tool temperature, the risk of cracking, chipping, or breakage is significantly reduced.
3. Improved Surface Quality and Dimensional Accuracy
- Smooth Surface Finish: The cooling effect of cryogenic fluids helps to dissipate heat generated during machining processes, leading to a reduction in thermal expansion and contraction. This results in a smoother surface finish with fewer defects, such as burrs and heat-affected zones.
- High Precision: Cryogenic cooling contributes to enhanced dimensional accuracy by maintaining material stability throughout the machining process. Reduced thermal expansion ensures that the workpiece retains its original dimensions, leading to improved tolerances and overall product quality.
By effectively managing thermal conditions, cryogenic cooling optimizes material properties, extends tool life, and delivers superior surface quality and dimensional accuracy, making it a valuable asset in various industries.
Key Cryogenic Cooling Techniques Used in CNC Drilling

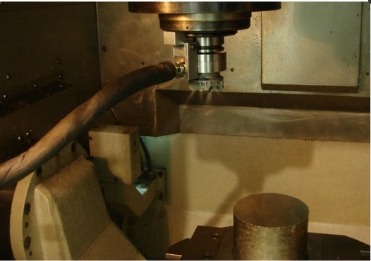

1. External Cryogenic Cooling
Description: External cryogenic cooling involves spraying cryogenic fluids, typically liquid nitrogen (LN2) or liquid carbon dioxide (LCO2), directly onto the cutting zone from an external nozzle.
Advantages
- Simple Implementation: Easier to set up compared to internal systems.
- Effective Surface Cooling: Quickly reduces the temperature at the cutting interface.
Challenges
- Uneven Cooling: May lead to inconsistent temperature distribution.
- Higher Fluid Consumption: Requires more cryogenic fluid for effective cooling.

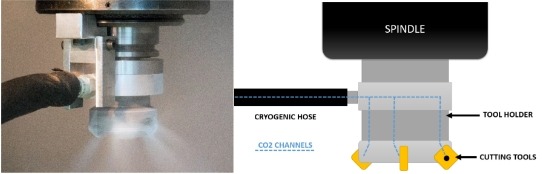

2. Internal Cryogenic Cooling
Description: Internal cryogenic cooling channels cryogenic fluids through the drill tool itself, ensuring direct and uniform cooling at the cutting edge.
Advantages
- Uniform Cooling: Provides consistent and thorough cooling directly at the cutting interface.
- Reduced Fluid Consumption: More efficient use of cryogenic fluids.
Challenges
- Specialized Equipment Required: Needs specially designed tools and cooling systems.
- Higher Initial Cost: More expensive to implement initially.
3. Cryogenic Minimum Quantity Lubrication (MQL)
Description: Cryogenic MQL combines the principles of cryogenic cooling with minimum quantity lubrication. Small amounts of lubricant are mixed with cryogenic fluids and applied to the cutting zone.
Advantages
- Enhanced Lubrication: Provides both cooling and lubrication, reducing friction.
- Improved Tool Life: The combined effect of cooling and lubrication extends tool lifespan.
Challenges
- Complex Setup: Requires precise control of lubricant and cryogenic fluid mixture.
- Maintenance: More intricate system needing regular maintenance.
4. Hybrid Cryogenic Cooling Systems
Description: Hybrid systems integrate cryogenic cooling with traditional coolant systems or MQL to enhance cooling efficiency and tool performance.
Advantages
- Comprehensive Cooling and Lubrication: Offers the benefits of both cryogenic and traditional cooling methods.
- Optimized Performance: Enhances overall drilling efficiency and quality.
Challenges
- Complex System: More sophisticated and requires careful integration of different cooling methods.
- Higher Cost and Maintenance: More expensive and requires detailed maintenance protocols.
Industrial Applications of Cryogenic Cooling Technique in CNC Drilling
Here’s a chart summarizing the industrial applications of cryogenic cooling techniques in CNC drilling.
| Industry | Materials | Applications | Benefits |
| Aerospace | ● Advanced composites ● Superalloys | Aircraft components Engine parts | ● Maintains material integrity ● Enhances tool life in CNC machining ● Improves precision and surface finish |
| Medical Devices | ● Titanium ● Specialized polymers | ImplantsSurgical tools | ● Prevents thermal degradation ● Ensures Biocompatibility ● Achieves high precision and smooth surfaces |
| Electronics | ● Heat-sensitive polymers ● Composite materials | Circuit boardsElectronic housings | ● Prevents thermal damage ● Improves dimensional accuracy ● Enhances component reliability |
| Automotive | ● High-strength alloy ● Engine materials | Engine componentsTransmission parts | ● Reduces thermal wear ● Extends tool life ● Maintains tight tolerances |
| Energy | ● Stainless steels ● Exotic alloys | Turbine blades Drilling equipment | ● Improves wear resistance ● Enhances material properties ● Ensures precision and reliability |
| Defense | ● Ballistic composites ● Advanced metals | Armor componentWeapon systems | ● Maintains structural integrity ● Enhances durability ● Ensures high precision machining |
| Marine | ● Corrosion-resistant alloys ● Composites | PropellersStructural components | ● Prevents thermal degradation ● Ensures corrosion resistance ● Achieves high precision and smooth finish |
Conclusion
Cryogenic cooling techniques offer a promising solution to the challenges associated with CNC drilling of heat-sensitive materials. By effectively managing the heat generated during drilling, these techniques enhance material integrity, improve tool life, and ensure superior surface finish and dimensional accuracy. As industries increasingly demand higher precision and quality, the adoption of cryogenic cooling in CNC machining is poised to grow, driving further innovations in manufacturing technology and material processing.
