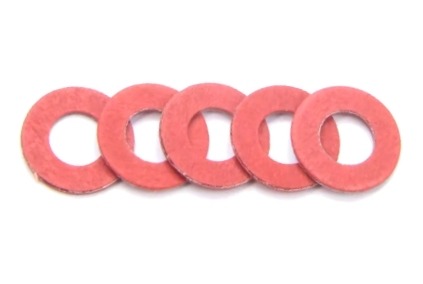

Red Fiber Insulating Washers (M3×10×0.8mm)
- Product Type: Red fiber insulating washer (steel core + insulating paper layer)
- Size: M3 (inner diameter) × 10mm (outer diameter) × 0.8mm (thickness)
- Core Structure: Steel core + red fiber/insulating paper composite
- Key Features: Mechanical stability, thermal insulation, compression flexibility
- Applications: Automotive engines, exhaust systems, heat exchanges, and electrical assemblies
Manufacturing Processes of Red Fiber Insulating Washers
Every washer is designed to be reliable and long-lasting:
- Material Sourcing: To ensure adherence to industry standards for mechanical and thermal performance, we choose heat-resistant red fiber paper for the insulating layer and high-tensile steel for the core.
- Lamination and Stamping: To ensure a flawless fit, the steel core is precisely stamped into M3×10×0.8mm dimensions with a tolerance of ±0.05mm after being sandwiched between layers of red fiber paper.
- Surface Treatment: The steel core preserves structural integrity under compression, while the fiber layer is treated to improve flexibility and heat resistance.
- Quality Inspection: Before being packaged, every washer is put through dimensions tests, compression testing, and thermal insulation validation to make sure it satisfies performance standards.
Material Advantages & Personalization of Red Fiber Insulating Washers
Advantages of Core Materials
- Steel Core: Offers strong structural integrity, ensuring long-term stability in high-vibration situations and prevents deformation under mechanical stress.
- Red Fiber Insulating Layer: Reduces heat transfer between mating components by providing efficient thermal insulation. Additionally, it provides exceptional compression flexibility, adjusting to surface flaws to produce a dependable, tight seal.
- Composite Structure: Produces a washer that performs very well in both mechanical and thermal applications by combining the strength of steel with the insulating and flexible qualities of fiber paper.
Personalization Choices
We provide adaptable modifications to fulfill the requirements of your project:
- Dimensions Variants: Custom thicknesses (0.5mm–1.5mm) and inner/outer diameters (e.g., M4, M5) for various assembly needs.
- Insulation Grade: Fiber paper alternatives with a higher temperature (up to 200°C) for applications involving intense heat.Color coding: Using different fiber colors (such black or white) to make complex constructions easier to identify.
- Bulk Packaging: OEM and assembly line-use custom packaging (such as bulk bags and strip packs).
Key Benefits of Red Fiber Insulating Washer
- Dual-Function Performance: This eliminates the need for separate parts by acting as an insulator (blocking heat transfer) and a mechanical washer (distributing load, avoiding loosening).
- Perfect Fit: For small electrical or automotive assemblies, precision-stamped M3×10×0.8mm dimensions guarantee smooth integration with M3 bolts/screws.
- Seal Adaptability: The flexible fiber layer creates a dependable seal that stops leaks and heat loss by conforming to uneven mating surfaces.
- Longevity: Over thousands of compression cycles, the fiber layer retains its insulating qualities while the steel core resists deformation
Reasons to Select KENENG as Your Supplier of Red Fiber Insulating Washers
When you work with KENENG, you receive a reliable solution supported by knowledge:
Decades of Experience in Precision Washer Production With a track record of success in the automotive, industrial, and electronics sectors, we specialize in custom fiber and composite washers. Our engineering staff is aware of the particular requirements for mechanical and thermal sealing.
Complete Quality Control, We verify each washer’s performance with cutting-edge testing tools like heat conductivity meters and compression testers. Only goods that satisfy our exacting standards for quality are dispatched. Stable Supply & Competitive Pricing, We are able to provide competitive pricing, fast quotes, and bulk availability for OEMs and contract manufacturers because to our effective manufacturing lines and long-term material connections.
Expert Engineering Assistance Our group offers comprehensive technical support:
- Custom design to meet specific performance or size constraints.
- Compliance records for regulatory approval (RoHS, REACH).
- Application guidelines for electronic, industrial, and automotive application cases.
Applications of Red Fiber Insulating Washers
- Automotive Industry: Used to attach fasteners and insulate heat in engine assemblies, exhaust systems, and heat exchanges.
- Electrical and Electronics: Protecting delicate parts from heat transmission in power supply and circuit boards.
- Industrial machinery: Insulating and sealing connections in heat exchange systems, pumps, and valves.
- Plumbing and HVAC: Preventing heat loss in duct and pipe connections.
