Shaft Retaining Rings (External Circlips)

Shaft retaining rings
Shaft retaining ring (External Circlips)
shaft retaining ring supplier
shaft retaining ring manufacturer
  • Shaft retaining rings

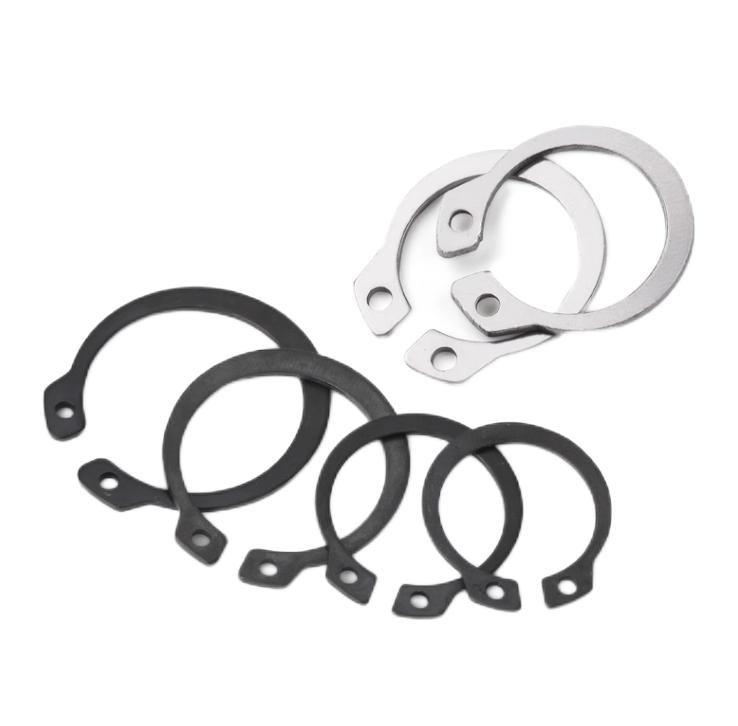

  • Shaft retaining ring (External Circlips)

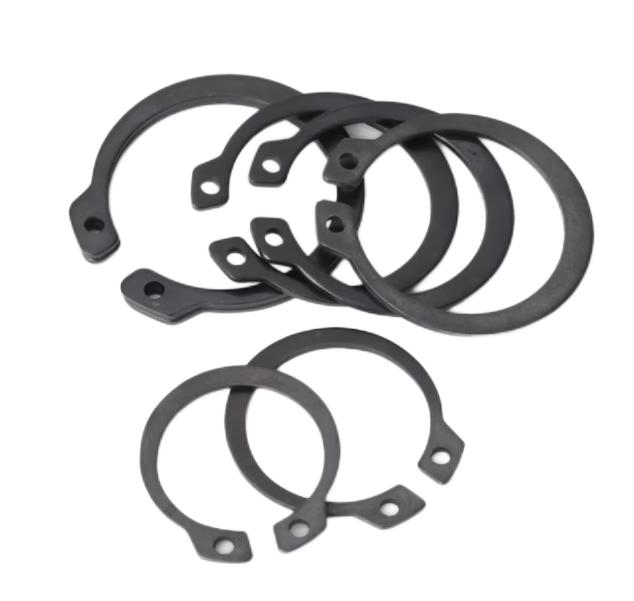

  • shaft retaining ring supplier

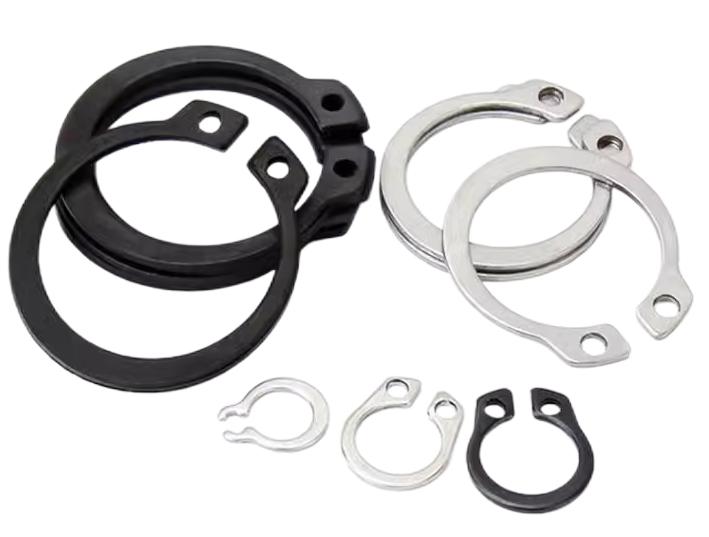

  • shaft retaining ring manufacturer
    • Size: φ3~φ170
    • Material: Stainless steel (304SS), 65Mn steel
    • Finishing: Plain, Black oxide
    • Standard: GB894

    Are You an OEM Manufacturer?

    Yes

    Specification of Shaft Retaining Rings

    Size 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17
    S max 0.4 0.4 0.6 0.7 0.8 0.8 1 1 1 1 1 1 1 1 1
    min 0.35 0.35 0.55 0.65 0.75 0.75 0.94 0.94 0.94 0.94 0.94 0.94 0.94 0.94 0.94
    d3 Nominal Size 2.7 3.7 4.7 5.6 6.5 7.4 8.4 9.3 10.2 11 11.9 12.9 13.8 14.7 15.7
    max 2.74 3.74 4.74 5.64 6.56 7.46 8.46 9.4 10.3 11.1 12 13 13.9 14.8 15.8
    min 2.55 3.55 4.55 5.45 6.32 7.22 8.22 8.94 9.84 10.64 11.54 12.54 13.44 14.34 15.34
    a max 1.9 2.2 2.5 2.7 3.1 3.2 3.3 3.3 3.3 3.3 3.4 3.5 3.6 3.7 3.8
    n ≈ 0.8 0.9 1.1 1.3 1.4 1.5 1.7 1.8 1.8 1.8 2 2.1 2.2 2.2 2.3
    d5 min 1 1 1 1.2 1.2 1.2 1.2 1.5 1.5 1.7 1.7 1.7 1.7 1.7 1.7
    Installation tool specification 1 1 1 1 1 1 1 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5
    per 1000 units ≈kg 0.017 0.022 0.066 0.084 0.121 0.158 0.3 0.34 0.41 0.5 0.53 0.64 0.67 0.7 0.82
    Size 18 19 20 21 22 24 25 26 28 29 30 32 34 35 36
    S max 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.5 1.5 1.5 1.5 1.5 1.5 1.75
    min 1.14 1.14 1.14 1.14 1.14 1.14 1.14 1.14 1.44 1.44 1.44 1.44 1.44 1.44 1.69
    d3 Nominal Size 16.5 17.5 18.5 19.5 20.5 22.2 23.2 24.2 25.9 26.9 27.9 29.6 31.5 32.2 33.2
    max 16.6 17.6 18.63 19.63 20.63 22.41 23.41 24.41 26.11 27.11 28.11 29.85 31.75 32.45 33.45
    min 16.14 17.14 18.08 19.08 20.08 21.78 22.78 23.78 25.48 26.48 27.48 29.1 31 31.7 32.7
    a max 3.9 3.9 4 4.1 4.2 4.4 4.4 4.5 4.7 4.8 5 5.2 5.4 5.6 5.6
    n ≈
    		 2.4 2.5 2.6 2.7 2.8 3 3 3.1 3.2 3.4 3.5 3.6 3.8 3.9 4
    ds min 2 2 2 2 2 2 2 2 2 2 2 2.5 2.5 2.5 2.5
    Installation tool specification 1.5 2 2 2 2 2 2 2 2 2 2 2.5 2.5 2.5 2.5
    per 1000 units ≈kg 1.11 1.22 1.3 1.42 1.5 1.77 1.9 1.96 2.92 3.2 3.31 3.54 3.8 4 5
    Size 38 40 42 45 48 50 52 55 56 58 60 62 63 65 68
    S max 1.75 1.75 1.75 1.75 1.75 2 2 2 2 2 2 2 2 2.5 2.5
    min 1.69 1.69 1.69 1.69 1.69 1.93 1.93 1.93 1.93 1.93 1.93 1.93 1.93 2.43 2.43
    d3 Nominal Size 35.2 36.5 38.5 41.5 44.5 45.8 47.8 50.8 51.8 53.8 55.8 57.8 58.8 60.8 63.5
    max 35.45 36.89 38.89 41.89 44.89 46.19 48.19 51.26 52.26 54.26 56.26 58.26 59.26 61.26 63.96
    min 34.7 35.6 37.6 40.6 43.6 44.9 46.9 49.7 50.7 52.7 54.7 56.7 57.7 59.7 62.4
    a max 5.8 6 6.5 6.7 6.9 6.9 7 7.2 7.3 7.3 7.4 7.5 7.6 7.8 8
    n ≈ 4.2 4.4 4.5 4.7 5 5.1 5.2 5.4 5.5 5.6 5.8 6 6.2 6.3 6.5
    ds min 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 3 3
    Installation tool specification 2.5 2.5 3 3 3 3 3 3 3 3 3 3 3 3 3
    per 1000 units=kg 5.62 6.03 6.5 7.5 7.9 10.2 11.1 11.4 11.8 12.6 12.9 14.3 15.9 18.2 21.8

    Size 70 72 75 78 80 82 85 88 90 95 100 105 110 115 120
    S max 2.5 2.5 2.5 2.5 2.5 2.5 3 3 3 3 3 4 4 4 4
    min 2.43 2.43 2.43 2.43 2.43 2.43 2.92 2.92 2.92 2.92 2.92 3.9 3.9 3.9 3.9
    d3 Nominal Size 65.5 67.5 70.5 73.5 74.5 76.5 79.5 82.5 84.5 89.5 94.5 98 103 108 113
    max 65.96 67.96 70.96 73.96 74.96 76.96 79.96 83.04 85.04 90.04 95.04 98.54 103.54 108.54 113.54
    min 64.4 66.4 69.4 72.4 73.4 75.4 78.4 81.2 83.2 88.2 93.2 96.7 101.7 106.7 111.7
    a max 8.1 8.2 8.4 8.6 8.6 8.7 8.7 8.8 8.8 9.4 9.6 9.9 10.1 10.6 11
    n ≈ 6.6 6.8 7 7.3 7.4 7.6 7.8 8 8.2 8.6 9 9.3 9.6 9.8 10.2
    ds min 3 3 3 3 3 3 3.5 3.5 3.5 3.5 3.5 3.5 3.5 3.5 3.5
    Installation tool specification 3 3 3 3 3 3 3 3 3 3 3 3 4 4 4
    per 1000 units ≈kg 22 22.5 24.6 26.2 27.3 31.2 36.4 41.2 44.5 49 53.7 80 82 84 86
    Size 125 130 135 140 145 150 155 160 165 170 175 180 185 190 195
    S max 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4
    min 3.9 3.9 3.9 3.9 3.9 3.9 3.9 3.9 3.9 3.9 3.9 3.9 3.9 3.9 3.9
    d3 Nominal Size 118 123 128 133 138 142 146 151 155.5 160.5 165.5 170.5 175.5 180.5 185.5
    max 118.54 123.63 128.63 133.63 138.63 142.63 146.63 151.63 156.13 161.13 166.13 171.13 176.13 181.22 186.22
    min 116.7 121.5 126.5 131.5 136.5 140.5 144.5 149.5 154 159 164 169 174 178.8 183.8
    a max 11.4 11.6 11.8 12 12.2 13 13 13.3 13.5 13.5 13.5 14.2 14.2 14.2 14.2
    n ≈ 10.4 10.7 11 11.2 11.5 11.8 12 12.2 12.5 12.9 13.5 13.5 14 14 14
    d5 min 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4
    Installation tool specification 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4
    per 1000 units ≈ kg 90 100 104 110 115 120 135 150 160 170 180 190 200 210 220

    Size 200 210 220 230 240 250 260 270 280 290 300
    S max 4 5 5 5 5 5 5 5 5 5 5
    min 3.9 4.88 4.88 4.88 4.88 4.88 4.88 4.88 4.88 4.88 4.88
    d3 Nominal Size 190.5 198 208 218 228 238 245 255 265 275 285
    max 191.22 198.72 208.72 218.72 228.72 238.72 245.72 255.81 265.81 275.81 285.81
    min 188.8 196.3 206.3 216.3 226.3 236.3 243.3 253 263 273 283
    a max 14.2 14.2 14.2 14.2 14.2 14.2 16.2 16.2 16.2 16.2 16.2
    n ≈ 14 14 14 14 14 14 16 16 16 16 16
    d5 min 4 4 4 4 4 4 5 5 5 5 5
    Installation tool specification 4 / / / / / / / / / /
    per 1000 units ≈kg 230 248 265 290 310 335 355 375 398 418 440

    Functions of Shaft Retaining Rings

    The shaft retaining rings are a kind of mounting on the groove shaft, used as a fixing part of the hole movement, the inner diameter of this kind of retaining ring is slightly smaller than the assembly shaft diameter.

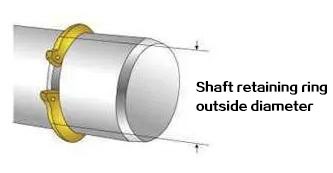

    shaft retaining ring outside diameter

    Installation Methods of Shaft Retaining Rings

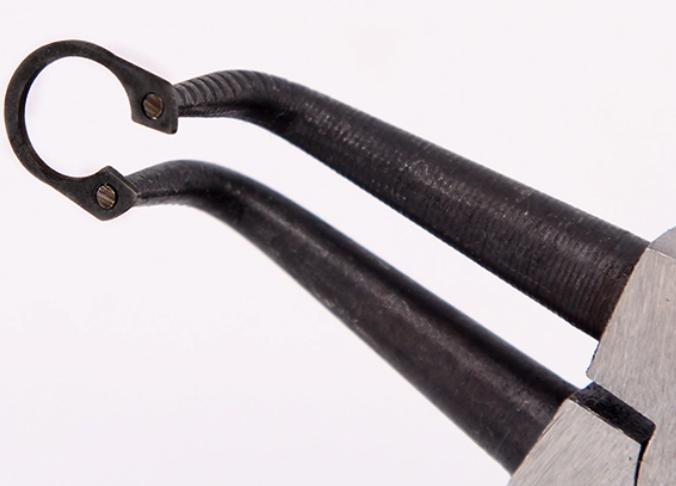

    With the circlip pliers, insert the plier’s nozzle into the plier’s hole of the stop ring, expand the stop ring, and put the stop ring into the pre-processed shaft groove.

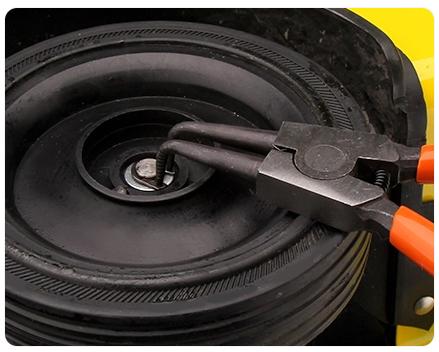

    • application of shaft retaining ring

    Advantages of KENENG Shaft Retaining Rings

    • High tensile, the hardness and elasticity of qualified.
    • The surface is flat, with standard pliers holes.
    • No burrs in the corner.

    Materials we can use on Shaft Retaining Rings
