Thermoforming vs Injection Molding: Which One is Right for You
In the world of plastic manufacturing, thermoforming vs injection molding are like a dynamic duo, each with its own strengths and personality. When you’re gearing up to create a brand-new plastic product, which one should you choose? Should it be thermoforming, known for its speed and flexibility, or injection molding, the master of precision and consistency?
Don’t worry, we’re here to break it all down for you. From cost and efficiency to accuracy and application scenarios, this comparison will help you make a smart and confident decision!
Table of Contents

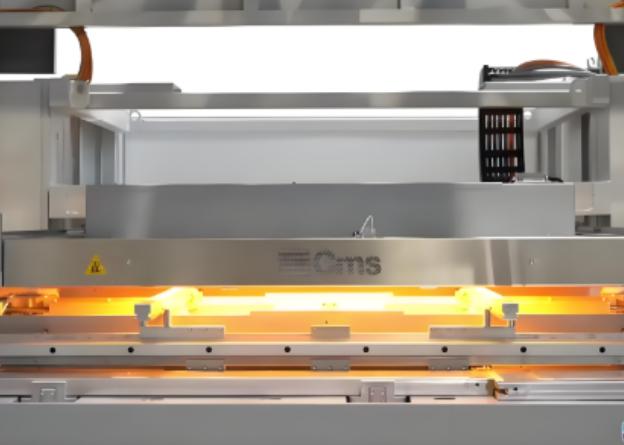

Part 1. What is Thermoforming?
Thermoforming is a plastic manufacturing process in which a plastic sheet is heated until it becomes pliable, then placed over a pre-made mold. With the help of vacuum suction or pressure, the heated plastic conforms tightly to the mold’s surface.
Once cooled, it retains the desired three-dimensional shape. This method is highly flexible and efficient, making it ideal for producing lightweight, thin-walled plastic items.
Common Applications of Thermoforming:
- Disposable packaging trays, cup lids, and food containers in the food industry
- Automotive interior components, such as door panels and dashboard covers
- Sterile trays and medical device packaging in the healthcare sector
- Plastic panels or covers for consumer electronics
Key Advantages of Thermoforming:
Lower Mold Costs
Compared to injection molding, which can require molds costing tens of thousands of dollars, thermoforming molds are much simpler and significantly cheaper to produce, making them ideal for startups or early-stage product development.
Simple Process & Short Development Cycle
Thermoforming involves a relatively straightforward process without complex machinery. As a result, the timeline from design to production is much shorter—often just a few days to a couple of weeks, allowing products to reach the market faster.
Ideal for Small to Medium Production Volumes
If you’re launching a new product and aren’t sure about the final market demand, thermoforming is a flexible option. It’s perfect for both low-volume runs (dozens of units) and medium-volume orders (thousands of units) without the high upfront costs of other methods.
Fast Prototyping & Easy Design Validation
Need to tweak the design? No problem. Thermoforming allows for quick, low-cost prototyping, making it ideal for iterative development and early market testing.
Part 2. What is Injection Molding?
Injection molding is a widely used plastic manufacturing process known for its high precision and efficiency. The process involves heating plastic pellets until they melt, then injecting the molten plastic into a metal mold under high pressure. Once the material cools and solidifies, the mold opens, and the finished part is ejected.
Thanks to its excellent repeatability and dimensional accuracy, injection molding is commonly used to produce electronic device housings, automotive parts, medical components, home appliances, and many other plastic products. It is the go-to method for large-scale, industrial-grade plastic manufacturing.
Common Applications of Injection Molding:
- Consumer electronics, such as phone cases, laptop shells, and remote controls
- Automotive components, like air vents, handles, and mounting brackets
- Medical devices, including syringe bodies and pill organizers
- Household goods, such as plastic chairs, water buckets, and washing machine panels
Key Advantages of Injection Molding:
Low Unit Cost – Ideal for Mass Production
Although the initial cost of mold development can be high, once it’s ready, the cost per unit drops significantly, making it extremely economical for large-scale production runs—from tens of thousands to millions of parts.
Dimensional Stability and High Repeatability
Thanks to precision tooling and automated systems, injection molding offers exceptional consistency across all units, with minimal variance. It’s particularly suitable for industries where strict tolerances and product uniformity are essential.
Supports Complex Structures and Multi-Material Molding
Injection molding can produce highly complex geometries and allows for techniques such as multi-shot molding, insert molding, and gas-assisted molding. These enable the creation of integrated parts with different materials, embedded components, or intricate internal features—all in a single process.
High Automation & Production Speed
Modern injection molding machines support fully automated, continuous production, with cycle times ranging from just a few seconds to under a minute. Combined with robotic systems, the injection molding process ensures high output with minimal manual labor.
Thermoforming vs Injection Molding: Key Differences
1. Mold Cost
Thermoforming:
The mold manufacturing cost for thermoforming is relatively low. Since thermoforming molds are usually made of simpler designs and cheaper materials (such as aluminum or composite materials), the initial investment is lower.
This makes thermoforming especially suitable for short-term projects, small-batch production, or situations where frequent design changes are required.
Injection Molding:
The cost of injection molds is relatively high. Injection molds are typically made from durable metals like steel, and the design requires high precision. The manufacturing process is complex and time-consuming.
Although the initial mold cost is high, once the mold is in production, the efficiency and quality stability are high, making it ideal for long-term, large-scale production.
2. Production Cycle
Thermoforming:
The production cycle for thermoforming is relatively short. The mold design and manufacturing process are simpler, so mold processing time is faster.
Additionally, the thermoforming process does not require complex debugging or multiple inspections, allowing for faster product launch. This makes it ideal for short-term needs and rapid prototyping.
Injection Molding:
The production cycle for injection molding is longer, especially when creating molds. The mold design requires high precision, and the mold opening cycle is longer, with debugging also being more complicated.
The mold needs precise tuning to ensure there are no defects during the injection molding process. However, once the mold is fine-tuned, production can be fast and stable.
3. Batch Production Flexibility
Thermoforming:
Thermoforming is ideal for small to medium-batch production. Due to the low mold cost and short production cycle, it is highly flexible for initial product production, especially for market validation and product iterations.
It is a cost-effective choice for products that do not have high production volume requirements, such as samples or products with low demand.
Injection Molding:
Injection molding is better suited for medium to large-scale production. Although the initial mold cost is high, the unit cost per product decreases as production quantity increases, making it more cost-efficient for mass production.
Injection molding is highly advantageous when large quantities and long-term production are required.
4. Molding Accuracy
Thermoforming:
The molding accuracy of thermoforming is relatively moderate. Although it can manufacture most simple or moderately complex plastic products, it is generally difficult to achieve precise details and tight tolerances due to the nature of the process.
Thermoforming is best for products with lower accuracy requirements and simpler shapes, such as packaging trays and automotive interior parts.
Injection Molding:
Injection molding offers high precision. Since the molds used in injection molding are highly detailed and the process can precisely control injection volume, pressure, and cooling, it guarantees consistency in product size, shape, and surface quality.
Injection molding is ideal for parts with very tight tolerances, such as electronics enclosures or medical device components.
5. Material Utilization
Thermoforming:
Thermoforming has relatively low material utilization. During the molding process, thermoforming typically uses large sheets of plastic, and excess material must be trimmed away, resulting in a significant amount of waste.
This can be a concern, especially for complex or custom-shaped products where a lot of scrap material is generated.
Injection Molding:
Injection molding has a higher material utilization. Since plastic pellets are precisely measured and injected into the mold, the process ensures that nearly all of the material is used to fill the mold cavity, minimizing waste.
The material utilization rate is higher in injection molding, which is particularly important in mass production.
6. Product Complexity
Thermoforming:
Thermoforming is suitable for moderately complex product structures. Because the molds are simpler in design, thermoforming is typically used for products with less complex shapes, such as flat or slightly curved parts.
While it can manufacture some moderately complex components, it is not as capable of achieving intricate details or internal structures.
Injection Molding:
Injection molding is ideal for highly complex products. The process allows for the production of intricate geometric shapes, detailed internal structures, and fine details. Injection molding can easily handle designs with multiple insertions, part combinations, or precise features.
This makes it suitable for products that require a high degree of complexity, such as mechanical parts, precision tools, and electronic enclosures.
7. Cost Control
Thermoforming:
Thermoforming has low minimum order quantities (MOQs) and low initial investment. Due to its lower mold cost and faster production cycle, thermoforming is particularly suitable for rapid iteration and small-batch production.
It is a cost-effective choice for early-stage product development, prototypes, or low-quantity runs.
Injection Molding:
Injection molding sees cost reductions as production volume increases. Although the initial investment in mold-making is high, the unit cost of production significantly decreases with larger volumes, making injection molding very cost-efficient for mass production. For long-term production plans and high-demand products, injection molding is the more economical choice.
Injection Molding vs Thermoforming: Which Molding Process is Right for You?
When choosing a plastic molding process, considering different application scenarios can help you make an informed decision. Here are several key factors to help you determine which process, thermoforming or injection molding, is better suited for your project:
1. Product Quantity
Thermoforming: Best for rapid prototyping and small batch production, with lower mold costs and faster development cycles. Ideal for a few hundred to a few thousand units.
Injection Molding: Best for large-scale production. Although initial costs are higher, per-product costs significantly decrease as volume increases.
2. Product Complexity
Thermoforming: Suitable for simple products like shells, trays, and containers. It’s cost-effective but limited in handling intricate details or complex shapes.
Injection Molding: Perfect for complex designs requiring high precision. It handles intricate geometries, fine details, and embedded components like electronic housings and automotive parts.
3. Budget and Time
Thermoforming: Cost-effective and faster for mold development, making it ideal for projects with tight budgets or quick turnaround times.
Injection Molding: Requires more time and higher initial investment, but is cost-effective for large-scale, long-term production once the molds are ready.
4. Appearance and Precision Requirements
Thermoforming: Products often have rough finishes and less precision. It’s suitable for products where appearance isn’t a critical factor.
Injection Molding: Offers smooth finishes and high precision, making it perfect for products with strict appearance and dimensional requirements.
Generally, thermoforming is ideal for quick prototypes, small batch production, and simpler products, while injection molding excels in large-scale production, complex designs, and products requiring high precision and superior surface finishes. Understanding these differences can help you select the best molding process for your specific project needs.
Final Words: Choose the Right Process Based on Your Project Needs
There is no single “best” molding method, only the one that fits your needs. For small batch development, rapid prototyping, and simple products, Thermoforming is the ideal choice. However, for high precision, large-scale production, and complex structures, Injection Molding is the best solution.
