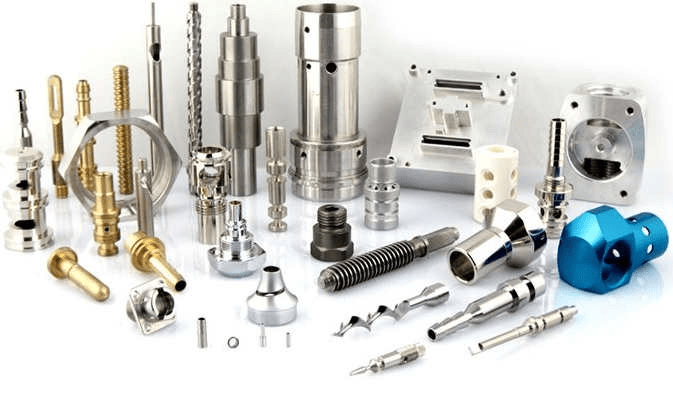

Tooling Developments in CNC Parts

The tooling systems in use are vital in determining CNC machining accuracy and productivity. With increasing automation within manufacturing, there is a need for advances in productivity and quality innovations. As a result, there has been a major shift in productivity. Tooling developments in CNC parts have evolved from basic cutting tools to highly engineered systems integrating advanced materials and new technologies including intelligent sensors and adaptive control systems.

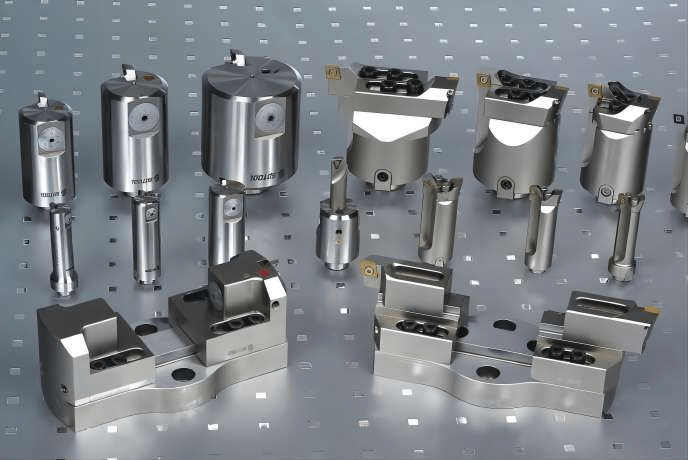

Evolution of CNC Tooling Technology

CNC tooling has undergone a remarkable transformation over the past decades. Traditional single-function tools have given way to multi-functional, high-performance tooling systems that can perform multiple operations with minimal tool changes.

Stage	Time Period	Key Characteristics	Impact on Manufacturing
1. Conventional Tooling	1950s–1970s	Manual or semi-automated tool setups; limited precision	Low productivity, high setup time, and inconsistent accuracy
2. Early CNC Tooling	1980s–1990s	Integration of computer control for tool paths	Improved repeatability and reduced operator dependency
3. Coated and Indexable Tools	1990s–2000s	Tool life extended through coatings; replaceable inserts	Higher cutting speeds, lower cost per part, reduced downtime
4. High-Performance Tooling	2000s–2010s	Focus on precision, speed, and versatility	Better surface finish, reduced vibration, and extended tool life
5. Smart and Modular Tooling	2010s–2020s	Digital integration and flexibility	Faster changeovers, higher productivity, and less setup time
6. Intelligent Tooling Systems	2020s–Present	Data-driven, sensor-equipped tools for adaptive machining	Real-time performance tracking, predictive maintenance, and autonomous adjustments

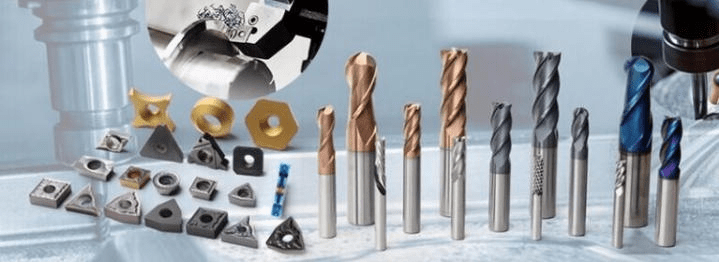

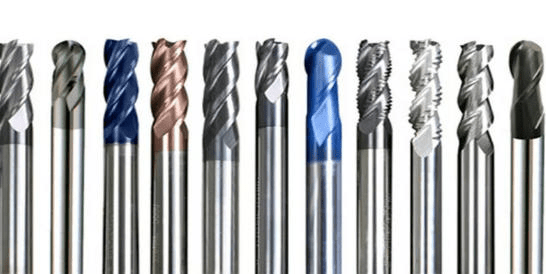

Advanced Materials and Coatings in Tooling Development of CNC Parts

Material science is critical in tooling development for CNC machining parts.

Material / Coating Type	Composition or Structure	Key Characteristics	Typical Applications	Advantages	Limitations
Carbide Tools	Tungsten carbide with cobalt binder	Extremely hard and wear-resistant; suitable for high-speed cutting	General metal cutting, automotive components, mold machining	High cutting speed, good edge retention, long tool life	Can be brittle under shock loads
Cermet Tools	Ceramic-metal composite (TiC, TiN with Ni/Co binder)	Combines hardness of ceramics and toughness of metals	Finishing operations and cutting of steels and cast irons	Excellent surface finish, oxidation resistance	Not ideal for interrupted cuts
Ceramic Tools	Aluminum oxide or silicon nitride-based ceramics	High hardness and heat resistance	Hard turning, high-temperature alloy machining	Enables dry cutting at very high speeds	Brittle; requires stable machining conditions
Cubic Boron Nitride (CBN)	Synthetic crystalline material	Second hardest material after diamond	Hard turning of hardened steels, tool steels	Exceptional wear resistance, retains hardness at high temperature	Very expensive; not suitable for soft materials
Diamond-Coated Tools	Polycrystalline diamond or thin diamond film	Ultra-hard and friction-resistant	Machining of composites, aluminum alloys, ceramics	Outstanding surface finish, minimal tool wear	Degrades rapidly when cutting ferrous metals
PVD Coatings	Titanium nitride (TiN), titanium aluminum nitride (TiAlN), or chromium nitride (CrN)	Thin, dense, low-temperature coatings	General-purpose cutting and high-speed applications	Reduces friction and adhesion, improves tool life	Limited heat barrier compared to thicker coatings
CVD Coatings	Multi-layer coatings of TiC, TiN, Al₂O₃	Thick, thermally stable coatings	Heavy-duty cutting, cast iron, and steel machining	High thermal resistance, long wear life in continuous cuts	May reduce edge sharpness; less suitable for interrupted cutting
Nano-Composite Coatings	Nano-layered structures (TiAlN/Si₃N₄, AlTiN nanocomposites)	Combines multiple phases for superior hardness and heat resistance	High-speed and dry machining of hardened steels	Excellent oxidation stability, high thermal barrier	Higher manufacturing cost
Hybrid or Gradient Tools	Multi-material structure combining carbide, CBN, or ceramics	Tailored properties across tool layers	Aerospace alloys, die and mold industries	Optimized toughness and hardness distribution	Complex manufacturing process

High-Performance Tool Geometry for CNC Parts

Tool geometry is the specific shape and angle configuration of a cutting tool and how it interacts with the workpiece. There are multiple ways material is removed, and each element of a tools geometry and shape has a role to play in this. The geometry and shape are comprised of the rake and clearance angles, helix angles and the cutting edge radius.

Cutting performance is affected by tool geometry and small changes can have a remarkable influence on wear rate and the quality of the workpiece. The precision and repeatability in CNC machining means that the parameters must be less than the machining tolerance.

1. Rake Angle

The most advanced tooling in the market today can be attributed to the geometric feature optimization. The rake angle has a large influence on shearing action. Positive and negative rake angles have opposite effects. The positive rake angle diminishes cutting forces and improves the workpiece surface, however, it weakens the cutting edge of the tool. The negative rake angle improves tool cutting edge strength but increases the load on the tool.

2. Clearance Angle

With respect to the clearance angle, the goal is to ensure the tool does not rub against the workpiece. In relation to the helix angle, which is the angle of the tool’s flutes, is the control of chip evacuation. Higher angles promote smooth cutting and efficient chip removal; this is the case for softer materials like aluminum. For tougher materials like steel, lower helix angles are more effective.

3. Cutting Edge Radius

The cutting edge radius is another crucial element that impacts surface finish and tool life. A sharp edge provides more cutting precision but is going to wear out more quickly. A cutting edge that is more finely honed or more dull provides a cutting tool with greater life, and a more rounded edge allows for smoother cutting.

4. Material-Specific Geometry

The Tool geometry is adapted to the characteristics of the material to be machined. For example, aluminum machining tools are designed to have a high rake angle, large flutes, and polished surfaces to minimize adhesion and promote chip evacuation. Tool for machining tougher materials, like stainless steel or titanium, have specially designed and engineered varible helix angles, stronger cutting edges and corners to reduce wear and breakage.

Composite machining involves identifying and reducing tool cutting geometries that promote delamination and fiber pull-out, using compression and diamond-cut edges. This tailored approach matches each geometry to minimize and maximize the machining the workpiece material mechanically.

5. Advanced Design Strategies

The design of cutting tools of high geometrical complexity has shifted solely from the mechanical design of tools. Sophisticated simulation and modeling tools allow the designers to test the geometry of the tools virtually prior to construction. Designers use the finite element method and computational fluid dynamics to analyze the flow of the machining chips, the distribution of stress and the gradients of temperature to adjust the tool design to the final construction.

The multi-flute and variable-pitch configurations are the most recognized tools of these for the enhanced tool design methodologies. The variable pitch system helps to eliminate the harmonic oscillations which, in turn, mitigates chatter and improves the finished machining surface. The random spacing and variable geometry of the flute tools are intended to promote the machining of the chips and allow faster feeding for a precision machining.

Moreover, Tool life has increased due to the newly developed advanced cutting tool design that micro-geometry and refinements to the shape of the cutting edges. These new geometries provide more balanced and focused wear for tools, especially in difficult machining conditions, such as high speed and dry machining.

Smart Tooling and Embedded Sensors

Smart tooling systems involve advanced technologies with integrated systems with sensors, microchips, and wireless transmitters. These systems monitor a set of parameters continuously and in real time, including temperature, vibration, tool wear, and cutting forces. Monitored data is sent to machine controllers, and data analysis is performed in the cloud to facilitate real-time adaptive decision-making and predictive maintenance of the systems.

Types of Embedded Sensors in Tooling

There is a variety of integrated sensors in smart tooling systems, and each provides different information about the CNC machining environment. Sensors include:

Force Sensors: Measure cutting and thrust forces to monitor tool load and anomaly detection.
Temperature Sensors: Measure temperature to monitor the excessive heat that can shorten tool life or impaired workpiece quality.
Vibration Sensors (Accelerometers): Monitor tool chatter, imbalance, and sign of tool wear.
Acoustic Emission Sensors: Monitor high-frequency sounds that can indicate the formation of a crack or tool breakage.
Strain Gauges: Measure tool body mechanical stress to determine precise force measurement.

Advantages of Smart Tooling

Manufacturers of today’s expanded configurable high-tech CNC machining tooling derive numerous strategic benefits from condition-adaptive embedded processor-controlled active workpiece sensors integrated in modern tools. Such active workpiece sensors guarantee constant workpiece condition feedback making process optimization possible. Dynamic cutting condition adjustments permit continuous optimal process efficiency maintenance.

The constant workpiece tool feedback means automated quality controls, reduced workpiece downtime for flipping and fastening, improved overall operational balanced-work downtime cycle efficiency, automated improved operational safety, and highly consistent workpiece condition varying signal feedback for active process control. Smart tooling integrated technologies make machining tools active instead of passive players in machining processes.

Applications in CNC Machining

Smart tooling in CNC machining particularly benefits highly sophisticated and precision industrial sectors such as aerospace, automotive, and medical engineering. Active workpiece sensing control embedded in machining tools modernized control sophisticated process engineering and control technological level to maintain stable adjustment control in machining of super alloys like titanium and Inconel.

Intelligent tools control precision in automotive engineering work components and control precision in complex engine components and gear systems. In medical device production, intelligent tools control precision in work components and ensure accuracy in work components for surgical instruments. Such tools ensure even the smallest precision control along machining cycles, across all sensor-based tooling assisted machining processes.

Integration with Digital Manufacturing Systems

Smart tooling completes the digital manufacturing ecosystem. The data from embedded smart sensors is stored and used by computer-aided manufacturing (CAM) software and machine learning models integrated with digital twin systems. This unit facilitates predictive analysis, adaptive control, and performance benchmarking.

With IoT connectivity, smart tools communicate with other systems, forming a self-regulating network of tools that autonomously improves through feedback loops. This digital convergence automation layer enables advanced and precise real-time operational control in manufacturing.

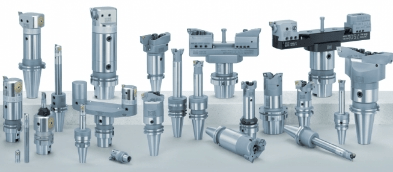

Modular and Quick-Change Tooling Systems

To enhance operational efficiency, self-restoring modular tooling systems and quick- change jig arrangements are being integrated as new- age manufacturing tools. These quick-change systems minimize non-productive time, enhance workflow, and maintain consistent accuracy in tool placement. Flexible modular tool holders and adapters integrated with prescribed machining systems minimize changeover times during cross machining different component types or operations.

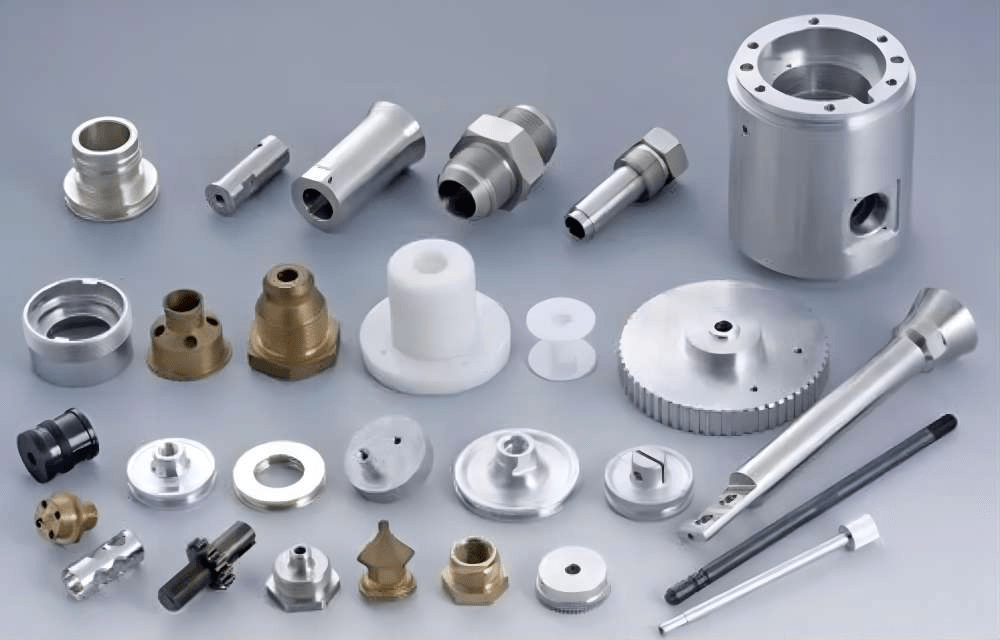

The Impacts of Tooling Developments in CNC Parts

Tooling developments in CNC parts influence machining operations and drive changes in costs, materials, and overall manufacturing strategy.

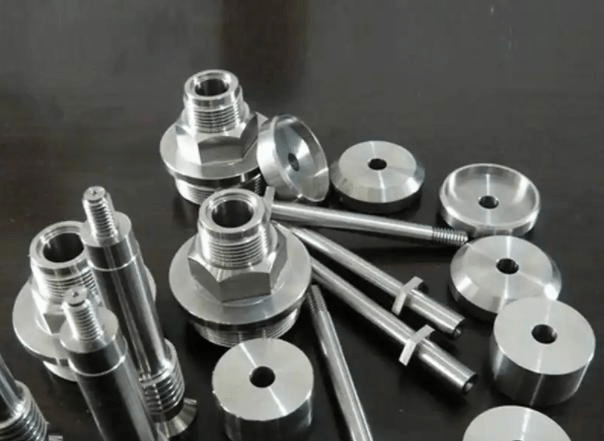

Enhancing Precision and Accuracy

Improved tooling strategies during CNC machining operations, provides immediate advancements in precision and accuracy. New designs optimize contour geometries, incorporate variable helix angles, and create bespoke cutting edges, thereby assuring consistent dimensional tolerances. Moreover, even high-speed and intricate machining conditions are met. This involves precision manufacturing of complex components for aerospace, automotive, and medical device industries.

Increasing Productivity and Efficiency

With every tooling development, there are increases in machining speeds and feed rates. This is attributed to tooling materials and coatings. Tools made of carbide and ceramics, as well as CBN and diamond coatings, outperform high-speed steels in temperature tolerance and edge retention. The removal rates of materials can increase dramatically without quality degradation when these materials are used in conjunction with optimized tool geometries.

Expanding Material Capabilities

Today, there are more materials that CNC machines can effectively process because of new tooling technologies. The machining of superalloys, hardened steels, titanium, and advanced composites is made possible with new geometry and coatings that withstand extreme conditions of hardness, abrasiveness, and heat. This has enabled manufacturers to work with new aerospace, medical, and automotive materials that are lightweight, high-strength, corrosion-resistant, and previously difficult or impossible to machine.

Reducing Costs and Resource Consumption

The advanced tooling technology and techniques will save you money in the long run despite the slightly higher upfront costs. Each long lasting and stable tooling system will cut down the frequency of replacement and engineered scrap. Each engineered tool will save on operational costs and resource consumption by generating less heat and cutting force.

Driving Innovation in Manufacturing

The shift in tooling developments also enables other innovations in production techniques and practices. With advanced tooling, you can now create complex geometrical and hybrid designs, including intricate microstructures that were impossible before. This leads to radical new designs and new approaches to machining to create new lightweight and strong parts.

Sustainability and Environmental Impact

The environmental sustainability of machining operations is now possible because of new tooling. Tools that last longer and have new coatings that allow dry cutting or Minimum-Quantity Lubrication (MQL) turnaround techniques save on cutting fluids that need disposal, reducing the environmental impact and burden of cutting fluids as disposals. The raw material consumption and disposal of less frequent cutting tools is also a more eco-friendly practice.

Future Outlook of Tooling Developments in CNC Parts

Tool Management and Digital Twin Integration

Tool management has become part of CNC automation. Digital twins, virtual representations of real tools and processes, enables manufacturers to simulate cutting operations and optimize parameters before actual machining. This minimizes tool breakage, reduces trial-and-error, and ensures a better first-pass yield. Cloud-based tool data stores tool management, wear tracking, replacement interval, and tool performance metrics, providing operators more hands-on tool management.

Customization and Application-Specific Tooling

The trend toward specialization, especially in tooling, is expected to increase. Tools of the future will be designed considering specific materials, part geometries, and machining conditions for complex customized CNC machining parts. AI generated simulation tools, combined with digital twins, will allow engineers to optimize tool geometry and cutting parameters virtually before any real production occurs. This will significantly decrease trial-and-error in tooling development, improve machining efficiency, and reduce waste, especially with materials that are especially complex or difficult to machine.

Additive Manufacturing and Hybrid Tooling

Additive Manufacturing is a game changer in tooling development. It allows the creation of complex geometries and internal features that are impossible to obtain using traditional manufacturing techniques. Hybrid tools that integrate additive and subtractive manufacturing techniques will foster the development of cooling channels of variable geometry, enhanced edge geometry, and lightweight structures.

These will strengthen tools, improve chip evacuation, and manage the tool’s temperature during high-speed machining and high-precision machining. Ultimately, this tool development will radically improve thermal management of the tools.

Artificial Intelligence and Digital Optimization

The future of CNC machining will be driven by the incorporation of AI and Machine Learning into tool systems. AI will provide recommended cutting strategies, the geometry in adaptive tooling systems will be adjusted, and cutting tools will be worn out, and thus over machining will be eliminated. The combination of digital twins and AI will provide real-time optimization of machining systems, greatly minimizing errors, facilitating the use of new materials and techniques, and broadening the machining industry in a timely manner.

Sustainability and Efficiency

The future will focus Sustainability in the development of tooling. Environmentally minimization, will be made possible through tools that facilitate energy-efficient machining, longer service life, and reduced material consumption. Dry machining and MQL techniques will be standard, thus reducing cutting fluid and operational costs while maintaining high precision. This will further promote the innovative geometry and advanced coatings that promote dry machining.

Summary

Tooling developments in CNC parts has changed contemporary manufacturing for the better by making it more precise, productive, and sustainable. Innovative materials, smart sensors, digital twins, and rapid-change systems all mean CNC operations can be more reliable and perform better.
