What are Swing Bolts

In the world of fasteners and hardware, swing bolts stand out as a versatile and essential component for various applications. These unique bolts possess distinctive features that set them apart from traditional bolts and screws. In this article, we will delve into the characteristics and uses of swing bolts, shedding light on their significance in a wide range of industries.

swing bolts suppliers

Functions of Swing Bolts

Swing bolts, also known as live joint bolts or eye bolts, are a type of fastener that is used in a wide range of applications. They are characterized by their ball-shaped head with a hole, which allows them to rotate freely. This makes them ideal for applications where frequent assembly and disassembly is required, or where the bolt needs to be able to pivot.

Features of Swing Bolts

Swing bolts are known for their distinctive characteristics that make them invaluable in specific applications. Let’s take a closer look at these features:

  1. Ball-shaped Head with a Hole: The head of a swing bolt is ball-shaped and includes a hole at the center. This design facilitates easy rotation, making them ideal for applications requiring frequent assembly and disassembly.
  2. Smooth Ball Surface: The smooth surface of the ball head allows for frictionless movement, making them suitable for rotating applications. This design minimizes wear and tear, ensuring the longevity of the fastening mechanism.
  3. Bolt Hole Compatibility with Other Axes: Swing bolts are designed to be compatible with other axes, enabling them to work seamlessly with various components and equipment.
  4. Quick and Easy Installation: Swing bolts are renowned for their ease of installation. The ball head design simplifies the attachment process, reducing the time and effort required for assembly.
  5. Used with Matching Nut: Swing bolts are typically used in combination with a matching nut. This combination provides both a connecting and fastening function, ensuring the integrity and stability of the assembly.
  6. High Thread Accuracy: Swing bolts are manufactured with a high degree of thread accuracy. This precision is critical for their use in applications where a secure and tight fit is essential.
  7. Improvement in Workpiece Quality: As a component, swing bolts contribute to the overall quality of the workpiece. Their smooth operation and secure fastening play a significant role in the performance and reliability of the assembled equipment.

Uses of Swing Bolts

Now that we’ve explored the unique features of swing bolts, let’s delve into the various applications where these fasteners find their utility:

  1. Filter-type Self-Rescuer: Swing bolts are used in the assembly of filter-type self-rescuers, which are critical for providing clean air to individuals in emergency situations.
  2. Gas Detector: Swing bolts are an integral part of gas detectors, ensuring the durability and reliability of these devices for safety and monitoring purposes.
  3. Dust Mask: Dust masks rely on swing bolts for secure fastening, enabling users to protect themselves from harmful particles and contaminants.
  4. Mining Raincoat: Swing bolts are used in the manufacturing of mining raincoats, where they contribute to the longevity and sturdiness of these protective garments.
  5. Mining Detonator: In the mining industry, swing bolts play a vital role in the assembly of detonators, ensuring the safe and effective functioning of these devices.
Swing bolt manufacturers

Details about Applications of Swing Bolts

Swing bolts have a wide array of uses in different industries. They are often found in:

  1. Low-temperature, High-Pressure Valves: Swing bolts are commonly used in the valve industry, where their quick assembly and disassembly properties are crucial. These valves must operate under high-pressure conditions, making the quality of swing bolts paramount.
  2. Pressure Pipes: Pressure pipes in various applications rely on swing bolts to ensure the tightness of joints and connections, preventing leaks or failures.
  3. Fluid Engineering: Swing bolts are a staple in fluid engineering applications, where they are essential for maintaining the integrity of pipelines and fluid systems.
  4. Oil Drilling Equipment: The oil and gas industry benefits from the use of swing bolts in drilling equipment, where precision and reliability are of utmost importance.
  5. Oilfield Equipment: Swing bolts are integral components in the assembly of various oilfield equipment, guaranteeing the safety and functionality of these critical tools.
  6. Valves in Folding and Children’s Bicycles: Swing bolts are used in the manufacturing of folding and children’s bicycles, allowing for easy assembly and disassembly when needed.

It is crucial to emphasize that the sealing quality of swing bolts is paramount in valve applications. Issues such as valve running, leakage, and dripping often originate from the sealing mechanism. Therefore, the quality and precision of swing bolts must be maintained to ensure safety and optimal performance in these critical systems.

Installation of Swing Bolts

Installing swing bolts is a straightforward process, thanks to their unique design. Here’s how to install swing bolts effectively:

  1. Select the Appropriate Swing Bolt: Choose a swing bolt that suits your specific application, considering factors like size, thread accuracy, and material composition.
  2. Prepare the Components: Ensure that the components to be joined are clean and free from debris or contaminants that could affect the integrity of the connection.
  3. Insert the Swing Bolt: Insert the ball-shaped head of the swing bolt into the appropriate hole, aligning it with the matching nut or counterpart component.
  4. Secure the Nut: Thread the matching nut onto the swing bolt, ensuring a snug fit. Use the appropriate tools to tighten the nut, if required, while being mindful not to overtighten.
  5. Test the Assembly: After installation, check the assembly for smooth rotation and secure fastening. Ensure that there is no unnecessary friction or play in the connection.

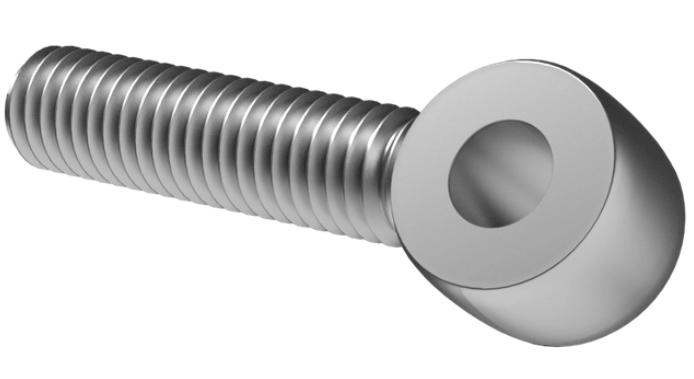

Swing bolt application


Swing bolts, with their unique characteristics and versatile applications, are indispensable in various industries. Their ball-shaped head, smooth surface, and compatibility with other axes make them ideal for rotating and frequently assembled components. Whether it’s in the valve industry, the mining sector, or even in everyday items like bicycles, swing bolts play a vital role in ensuring safe and efficient operation.

When utilizing swing bolts, it is essential to prioritize quality, especially in sealing applications where safety is paramount. Proper installation and maintenance of swing bolts guarantee the reliability of the assembled equipment, further emphasizing their significance in modern industries.
