What is a Flange Nut? A Comprehensive Guide

Flange nuts are a new type of fastener featuring a broad washer-like, washer-like foundation that is designed to distribute the load more evenly. They are often used in industries such as automobile manufacturing, development of machinery and steel construction. In comparison to standard Hex nuts, the flange nuts give better force distribution and increased connections – a crucial characteristic of modern fasteners.

This article will provide a comprehensive study of flange nuts including their definitions as well as their types, application areas and tips on how to choose the best one. The article also provides advice to those who are looking for reliable suppliers.

Part 1. What is a Flange Nut?

Flange nuts can be described as hex nuts that feature an integrated, large washer base or flange on their bottom, which significantly increases the the area of contact between them and other components. They are, therefore, unique nuts have numerous advantages over standard hex nuts.

  • Pressure Distribution: Uniform the distribution of force aids in dispersing loads over an area larger than the surface and reduces the risk to the surfaces that are attached to.
  • Increased Resistance to Vibration: The flange design offers increased resistance to the loosening that is caused by dynamic or motion loading. It is made for use in places that require stability.
  • Efficient of Installation: The flange eliminates the need of an additional washer, which saves time, and also reducing the amount of components required for the assembly.

Flange nuts are utilized mostly in conjunction with screws and bolts. They are an essential component for holding pieces in a variety of mechanical assemblies. For structural steel connection, large equipment and frame of vehicles Flange nuts provide durable long-lasting joints that are able to endure static and dynamic loads.

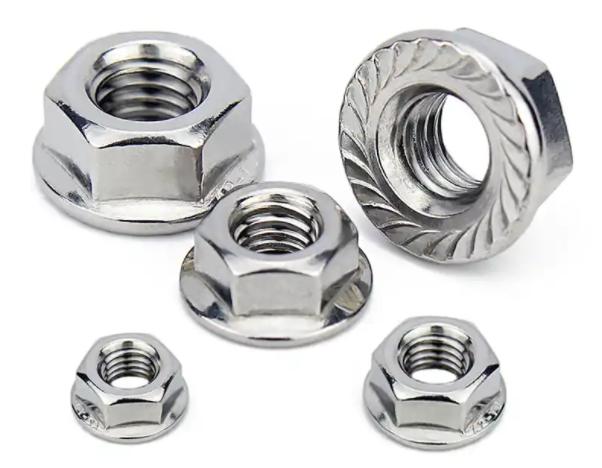

What is a flange nut

Part 2. Main Types of Flange Nuts

Flange nuts come in different kinds based on their structure and surface design, as well as their material, and requirements for their use. Below are the most commonly used varieties you’ll come across:

1. Serrated Flange Nut

Also called a locking flange the nut features serrations (teeth-like ridges) at the bottom part of the flange. The serrations are etched into the surface of mating, causing friction, and greatly increasing the resistance to vibrations and torque-induced loosening.

  • Benefits:Excellent anti-loosening performance; best suited to applications with high vibration like equipment and engines.
  • Limitations:Serrated base risk of causing damage to painted or soft surfaces. Therefore, it shouldn’t be used in high-precision or cosmetically sensitive assemblies.

2.  Non-Serrated (Smooth) Flange Nut

It features a flat, smooth flange with no serrations. It distributes loads evenly without causing damage to the contact surface.

Use: Best for precision or sensitive surfaces where scratches or marks are unacceptable, e.g., electronics medical instruments, electronic components or delicate mechanical parts.

3. Stainless Steel Flange Nut

Made of corrosion-resistant stainless steel forms like 304 or 316, as well as A2/A4 grades, the nuts can be employed in corrosive or aggressive environments.

Application: Ideal for marine use Chemical process, construction open or food processors.

Advantages: Durable, durable and rust-proof even in harsh conditions.

4.  Metric and Imperial (Inch) Flange Nuts

Metric and imperial/inch nominal size are the standard flange nuts (e.g., M6, M8, M10; 1/4″-20 UNC, 3/8″-16 UNF).

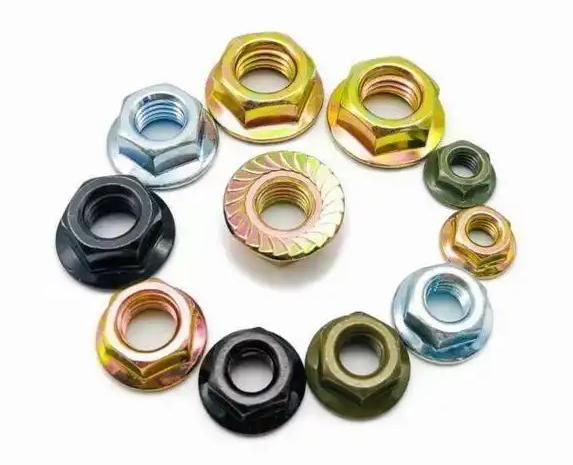

types of flange nuts

5. Nylon Insert Flange Lock Nut (Nylon-Inserted)

A nylon ring-flanged internal nuts (like the lock nut made of nylon) with a flange base. The nylon insert gives an additional torque to prevent loosening.

Uses: Used in situations where the ability to reuse and resistance to vibration is of the utmost significance.

Notice: Nylon can be incompatible with high temperatures.

6.  In-High Strength Flange Nut (Grade 10 or 12)

Made of high-strength alloy steel or carbon steel that is high-strength and then heat-treated to increase tensile strength. Sometimes, they are zinc-plated or phosphate coated for added protection.

Uses: Heavy-duty equipment, construction equipment and structural assemblies.

Specifications: Often created according to DIN 9923, ISO 4161, or ANSI B18.2.2.

7.  Custom Flange Nuts

If the products on the shelf don’t meet certain requirements Manufacturers can provide custom flange nuts according to customer specifications, drawings or performance requirements.

Options: Special thread size, material (brass, titanium plastic) Surface finish (zinc black oxide Dacromet) and a distinctive flange design.

Each flange nut designs is designed to serve a specific function, and the right choice depends on the environment, load conditions as well as material compatibility and the requirements for mounting.

Part 3. What are Flange Nuts Used For?

Due to their sophisticated design of the structure and their enhanced performance in fastening Flange nuts are utilized extensively in a variety of machines and industries. Because of their ability of uniformly dispersing pressure, anti-loosening properties, and their ease of fitting, they are a necessity to not have in the following sectors:

 1. Automobile Industry

Flange nuts are extensively used in repairs and manufacture of automobiles specifically on dynamic and vibrating load components. The most common automotive applications include:

  • Engine components: Secure mounting of engines blocks as well as cylinder heads, manifolds as well as intake system.
  • Frame connections and chassis: Fastening of cross members, subframes, as well as structures to protect against crashes.
  • Suspension Systems: Reliable tightening of shock absorbers, control arms and bars for stabilizing.
  • Brake system: Used where stable and vibration-resistant fastening is vital for safety.

The serrated flange nuts is particularly sought-after in cars that are constantly moving and road vibrations demand strong fastening solutions.

 2. Machinery and Equipment Manufacturing

In the manufacturing process Flange nuts are important components of assembly efficiency and mechanical system fixing, particularly when the resistance to vibration and ease of assembly are essential.

  • Power transmission components:Coupling gears, pulleys and shafts for which the alignment as well as locking of these are vital.
  • Rotating or moving components: :Camshafts, conveyor systems and bearings for anti-loosening solutions.
  • Heavy-duty machinery: Farming equipment, building machinery as well as CNC machine.

High-strength flange nuts guarantee long-term durability under constant mechanical stress.

3.  Construction Engineering and Steel Structure

Flange nuts are extensively employed in construction and civil engineering of steel structures, in which strong connections are required. The most common applications are:

  • Steel beam joints: Fixing massive I beams as well as H beams in industrial structures towers, bridges, and towers.
  • Tower crane foundations and wind turbine bases: for supporting vibration-resistant in addition to secure anchoring dynamic or rotating loads.
  • Prefabricated structures and modular buildings: :Simple locking and safe anchoring with no washers.

The wide flange permits the loading pressure of structural steel components to reduce deformation and increase joint stability.

flange nut application

4.  Electrical and Power Systems

In control cabinets and electrical facilities Flange nuts are utilized to secure electrical installations and enclosure components.

  • Panel boards and Switchgear: Busbars, brackets, and grounding terminals for mounting.
  • Transformers and substations: Securing outside components and support frames and connections.
  • Cable Trays and conduits: Providing firm, secure, and vibration-resistant fastenings for support cables.

Flange nuts with no serrated are commonly utilized in this field to protect conductivity or coated surfaces.

5.  Furniture and Home Hardware

Although often ignored Flange nuts can also be employed in the production of furniture specifically for metal-based modular designs.

Metal frames and joints: Fastening table legs, bed frames as well as shelf support.

Adjustable or knock-down furniture: Providing easy assembly and disassembly with no washers.

Outdoor or garden furniture: Stainless steel flange nuts are perfect due to their resistance against corrosion.

The washers integrated into their design decrease the amount of components required and makes it easier to manage installation and logistics for consumer items.

6.  Other Applications

  • Rail and aerospace industry: Lightweight, high-strength flange nuts are utilized in non-critical assemblies, where vibration resistance and space play a role.
  • Equipment for marine use:316 stainless-steel flange nuts inert to seawater and are suitable to be used on docks, vessels or offshore platforms.
  • Solar and wind energies: Ensuring secure fastening of elevated or moving parts that are exposed to the forces of nature.

Part 4. How to Choose the Right Flange Nut?

The selection of the correct Flange Nut is essential for ensuring long-lasting, reliable fixing to your application. If you’re buying for the structural engineering field, automotive assembly or industrial equipment these are the main aspects to bear in mind before making an informed choice:

 1. Thread Size and Compatibility

The first and most important thing is to ensure thread compatibility between the threads of the flangenut and bolt or stud. This entails:

  • Thread Type: Identify if metric (M6 M8, M8, M10 etc.).) as well as imperial (UNC/UNF) thread standards are employed within your work.
  • Pitch of threads: For metric threads, determine if the pitch is either fine or coarse. An incorrect pitch could lead to the thread being stripped or loose.
  • Class of tolerance: Standard tolerance (e.g. 6H) or custom-fit tolerance classes can be selected depending on the level of precision required.

Tips: Bolt or technical drawings should always be referenced prior to finalizing the measurements of Flange nuts.

 2. Material Selection

The choice of the appropriate material directly influences the strength and durability as well as the resistance to corrosion for the bolt.

  • Carbon steel (grade 4.8, 8.8, 10.9, etc. ): Strong and economical; for broad industrial use.
  • Steel made of stainless (for instance, 304, or 316):Offers high corrosion resistance; ideal for outdoor, marine as well as chemical.
  • Alloy steel: Used to make high temperature or heavy load applications based on high tension strength and resistance to fatigue.
  • Aluminum or brass: Used in light-weight electrical or construction projects in which weight reduction and conductivity are crucial.

Tips: When using the flange nuts in corrosive or high-stress conditions, always check with the manufacturer of your fastener for information on materials and their certifications.

3.  Surface Treatment and Coating

Surface treatments improve the resistance to corrosion, appearance, and may reduce friction for faster installation.

Common finishes are:

  • Zink plating (clear or yellow): Provides minimal corrosion resistance; it is most commonly used for general use.
  • Electrophoretic coating (e-coating): Smooth, even finish, with enhanced resistance to moisture and chemicals.
  • Dacromet: Very highly salt-resistant and resistant spray, perfect for outdoor or automotive use.
  • Black oxide or phosphate: Moderate security and dark color. perfect outdoor use.

Tips: Choose a finish that meets the appearance and environmental exposure specifications for your item.

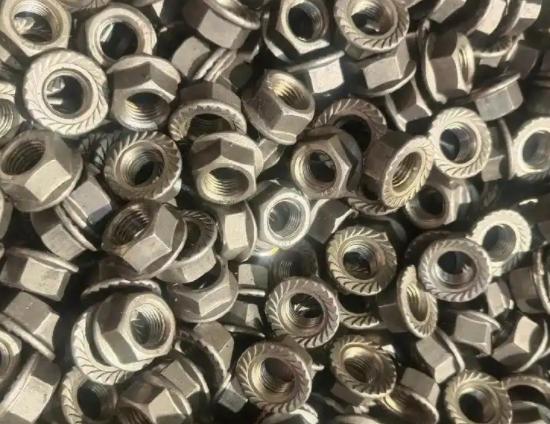

Select flange nuts

 4. Locking or Anti-Loosening Features

If the work requires impact, vibration or the cyclical nature of loads the use of a nut that has locking ability is crucial.

  • Serrated Flange nuts: Feature serrations angled to bite in the surface to stop rotation. They are ideal for automotive and machinery use.
  • Flange nuts that are not serrated: Better on smoother surfaces in which damage cannot be avoided but they have less resistance to loosening.
  • The most prevalent torque types: ome nuts include nylon inserts or threads that are deformed to lock mechanically.

Tips: For critical safety applications (e.g. brake systems and engine mounts) Anti-loosening functions aren’t an option, they’re necessary.

5.  Conformity with Standards

Make sure the flange nut conforms to industry standards that guarantee uniform dimensions performance, interchangeability, and quality.

Important standards include:

  • DIN 6923 (German standard): Common for hex Flange nuts, both with as well as without serrations.
  • ISO 4161: International equivalent to DIN 6923.
  • GB/T 6177: Chinese National Standard for Flange nuts.
  • ASME B18.2.2: Standard for inch-series flange nuts used in North America.

Tips: Request technical datasheets or certificates of conformity (CoC) from your suppliers to confirm conformity.

6. Additional Considerations

  • Requirements for load-bearing: Ensure the flange the nut’s tensile strength equals or is greater than that of the fasteners that mat.
  • Accessibility and Assembly Tools: Consider space constraints and torque requirements. Flange nuts could require particular sizes of sockets.
  • Custom-designed fabrication: For special applications numerous manufacturers can provide specific dimensions, markings or plating options to meet your specifications.

Part 5. KENENG – Reliable Flange Nut Supply & Customization Services

KENENG is the leading manufacturer of fasteners that specializes in the production of high-end flange nuts that satisfy various specifications for M4, M6, and M8 12, 14, sizes. 16 and 20 sizes are available and include materials like ML08 SWRCH35K10B21 that has ranges of hardness ranging from 26-36 HRC, and strength grades that range from the classes 6-8-10. We offer these products through different channels, including direct delivery.

Surface treatments we provide include zinc plating blackening, nickel plating, and zinc plating to offer corrosion protection as well as an attractive, aesthetic finish. All flange nuts that we make comply with GB6177.1/GB6177.2 requirements (fine thread) which makes them ideal for applications that require a lot of force, such as lifting equipment and pressure equipment vibration environments, or auto axle assemblies.

KENENG has a annual production capacity of more than 10 million units and provides OEM/ODM solutions with fast time to delivery based on 3D or CAD designs. Our manufacturing process guarantees high-precision, robust durability and anti-loosening capabilities.

Keneng Flange nuts manufacturer

Why Choose KENENG Flange Nuts?

  • The widest variety of materials and sizes that accommodate the demands of the industry
  • High-end equipment and tools to ensure constant quality
  • Quality control is strict throughout the production process
  • Global customer service
  • Test samples are available to test and validate
  • If you’re a machine maker, industrial distribution or an agent of sourcing, KENENG is your reliable supplier of cost-effective and high-performance flange nuts. Contact us today to request the latest samples, technical assistance or a quote for a custom order.

Final Thoughts

Although they’re small but flange nuts are essential to industrial coupling and joining life. Making the best choice for a flangenut according for your needs will ensure maximum performance, eliminate the need for maintenance and extend the life of your equipment.

If you’re looking for high-end Flange nuts that are in line with the highest standards of industry, If so, you’re at the right place. KENENG is committed to helping you in making the best selection, offering total customization, and providing solutions that meet your needs. Contact us now and let us assist you in completing your projects by providing high-performance, durable Flange nuts that are specifically designed for the requirements of your project.

FAQs about Flange Nut

Q1: Are flange nuts recyclable?

A1 Answer: Yes, in all situations. When flange nuts are serrated the anti-loosening effect is diminished by frequent use.

Q2: Do flange nuts require washers?

A2: No. The flange built into the design is washers, spreading the load and keeping it from loosing.

Q3: Do flange nuts work for plastic parts?

A3: Flange nuts that are serrated are not recommended as they can damage surfaces made of plastic. For plastic components, flat flange nuts are an ideal choice to prevent scratching on the surface.
