Why Combine CNC Milling with Laser Processing?
In modern manufacturing, efficiency, precision, and versatility are critical. Combining CNC milling with laser technology marks a significant innovation that blends the mechanical power of CNC machining with the finesse of laser processing. While CNC milling excels at subtractive manufacturing which is removing material to create precise parts and laser cutting offers high-speed, non-contact processing for intricate designs. Together, they enhance productivity, reducing production time and expand design possibilities, providing mechanical strength and thermal precision across industries such as aerospace, automotive, electronics, medical devices, etc.
Table of Contents
Understanding CNC Milling and Laser Processing

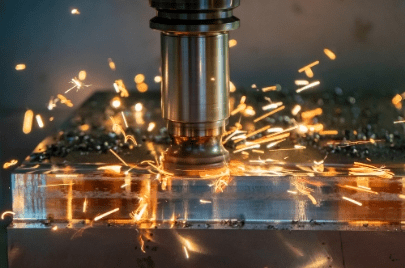

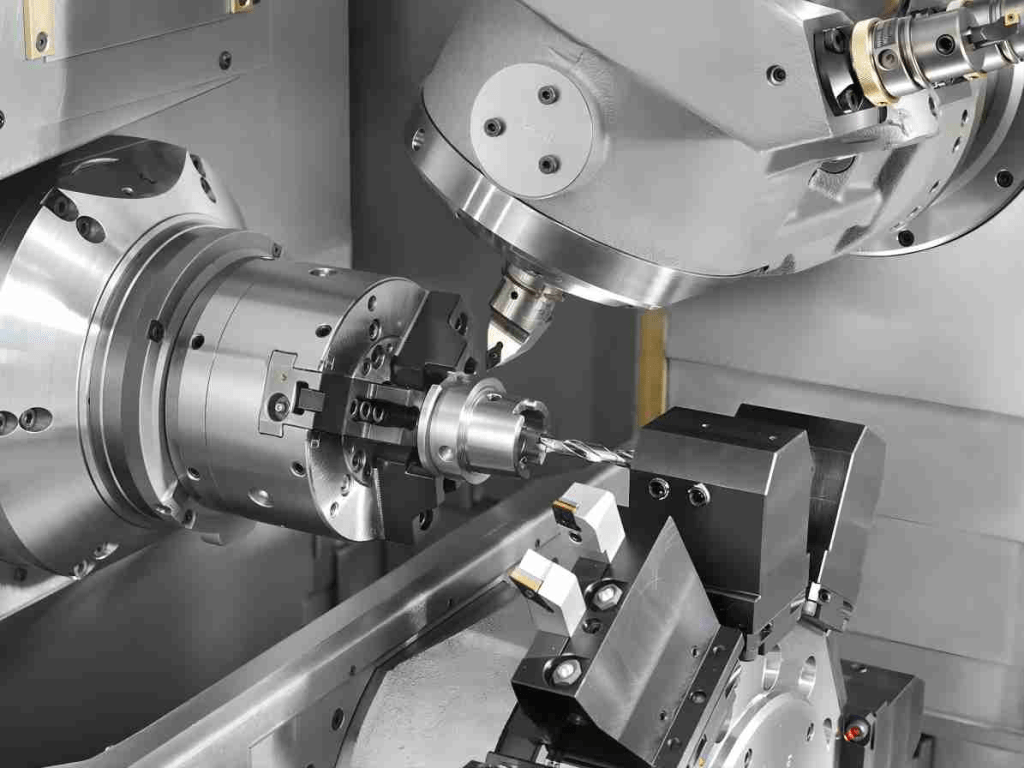

CNC milling is a subtractive manufacturing process where material is removed from a workpiece using rotary cutters. The process is controlled by a computer program that dictates the movements of the cutting tools along multiple axes (X, Y, and Z). The ability to manipulate parts in three dimensions allows for high precision and the creation of complex shapes, including holes, slots, and intricate contours.

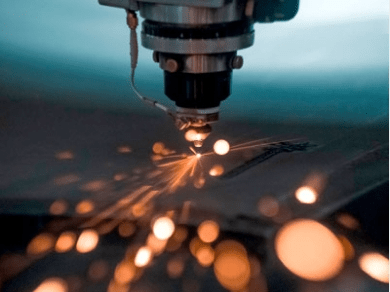

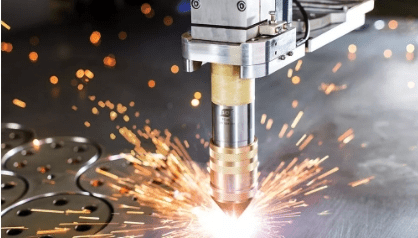

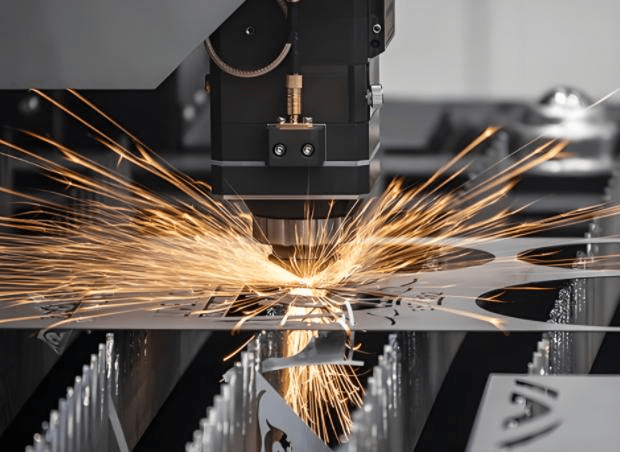

Laser processing uses high-powered laser beams to cut, engrave, or mark materials with extreme precision. The laser’s heat melts, burns, or vaporizes the material, allowing for very fine cuts and intricate designs, often at speeds much faster than traditional mechanical cutting methods.
Combining CNC milling and laser processing brings together the best aspects of both techniques, offering manufacturers a more comprehensive solution. For instance, CNC milling can create the bulk shape and structure of a part, while the laser can perform finishing operations such as engraving, marking, or fine cutting.
Benefits of Combining CNC Milling with Laser Processing
Enhanced Precision and Accuracy
CNC milling is well-known for its precision in creating complex shapes, while laser processing excels in fine details and intricate cuts. By combining both, manufacturers can achieve extremely tight tolerances and high-precision finishes. CNC milling handles the bulk material removal, while laser processing provides fine cuts, engravings, and surface treatments with exceptional accuracy.
Increased Flexibility and Versatility
CNC milling and laser processing each have their strengths when it comes to different types of operations. CNC milling can produce three-dimensional features and complex geometries, while lasers are ideal for cutting intricate patterns, engraving, or marking. By combining both, manufacturers gain the flexibility to perform a wider variety of operations on a single machine, reducing the need for multiple setups and specialized equipment.
Faster Production Times
The hybrid approach reduces the need for multiple machines and operations. CNC milling handles the bulk of the material removal, and the laser can quickly finish parts by cutting or engraving intricate details. This integration leads to faster processing times, helping manufacturers meet tight deadlines and improve production throughput.
Reduced Setup Time
With a combined CNC milling and laser processing system, the entire process can be done in a single machine without switching between different setups. This eliminates the time spent changing machines, adjusting settings, or repositioning parts, leading to significant reductions in overall setup time. The ability to quickly switch between processes enhances workflow efficiency.
Improved Surface Quality and Finish
Laser processing can be used to add fine surface details, texture, or engravings to the parts produced by CNC milling. The high energy concentration of the laser allows for smooth finishes and high-quality surface treatments that would be difficult or time-consuming to achieve using traditional milling alone. This combination is ideal for industries requiring high-quality finishes, such as aerospace, medical devices, and electronics.
Material Efficiency and Reduced Waste
Laser processing is highly precise, resulting in minimal material waste. The combination of both processes ensures that only the required material is removed, contributing to greater material efficiency. In industries where material costs are high, such as aerospace or automotive, this reduced waste can lead to significant cost savings.

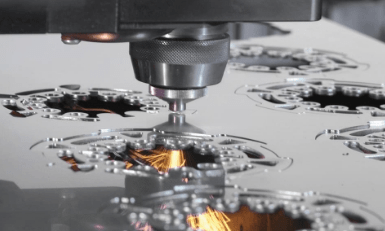

Ability to Process a Wide Range of Materials
While CNC milling can work with metals, plastics, and composites, laser processing adds the ability to work with additional materials such as thin metals, ceramics, and certain polymers. By combining both techniques, manufacturers gain the ability to process a wide variety of materials without needing separate machines or processes.
Improved Part Complexity
By combining milling and laser processing, manufacturers can produce parts with highly complex geometries that would be difficult or impossible to achieve with a single method alone. CNC milling is ideal for creating bulk shapes, while the laser can perform fine detailing and engraving, even on difficult-to-machine areas. This results in the ability to manufacture intricate designs with a high level of detail.
Cost Savings
Although the initial investment in a combined CNC milling and laser processing system may be higher than traditional machines, the long-term benefits include reduced operational costs. With less need for secondary operations, fewer machines, and minimal material waste, this hybrid approach can lead to significant cost savings over time.
Streamlined Maintenance and Operations
Operating both CNC milling and laser processing on the same platform simplifies maintenance and reduces downtime. Rather than maintaining separate systems for different processes, manufacturers only need to manage one hybrid machine, which can be more cost-effective and easier to maintain in the long run.
Applications of Combining CNC Milling and Laser Processing
This chart illustrates how different industries benefit from the combination of CNC milling and laser processing, enabling precision, versatility, and efficiency in manufacturing.
| Industry | CNC Milling Role | Laser Role | Resulting Benefits |
| Aerospace | Milling structural parts, turbine components | Surface texturing, serial number marking | Improved aerodynamics, compliance with traceability standards |
| Medical Devices | Shaping implants, surgical tools | Micro-texturing, permanent laser marking | Enhanced bio-compatibility, sterilization-resistant ID |
| Automotive | Machining engine parts, transmission gears | Laser hardening, micro-drilling, engraving | Increased durability, reduced wear, traceable parts |
| Electronics | Milling housings, heat sinks | Drilling vias, etching, circuit patterning | Compact, high-precision components, minimal thermal damage |
| Tool & Die Making | Shaping molds, dies, and cutting tools | Surface hardening, detailing, laser coating | Extended tool life, improved mold precision |
| Jewelry & Arts | Carving structure and form | Engraving, fine patterning, adding textures | Artistic detailing, high-value customization |
| Energy Sector | Machining turbine parts, valve components | Surface modification, corrosion-resistant layer application | Enhanced efficiency, longer service life under harsh conditions |
Future Trends in Hybrid Manufacturing of CNC Milling with Laser Processing
1. Increased Integration of Artificial Intelligence (AI) and Machine Learning
As hybrid CNC milling and laser systems become more advanced, the integration of AI and machine learning will enhance real-time decision-making and process optimization. AI will help in:
- Predictive maintenance, reducing downtime by forecasting machine failures.
- Process optimization, automatically adjusting parameters for the most efficient milling and laser cutting processes based on real-time data.
- Quality control through automated inspection, reducing human error and ensuring consistent output.
2. Further Automation and Robotics Integration
The future of hybrid manufacturing will see greater integration of automation and robotics. Automated material handling systems and robotic arms will be used to load and unload parts, while the CNC milling and laser processing systems handle the machining tasks. This will reduce labor costs, increase throughput, and allow for 24/7 production with minimal human intervention.
3. Smart Manufacturing and IoT Connectivity
The use of Internet of Things (IoT) devices in hybrid CNC milling and laser systems will facilitate smart manufacturing. These connected systems will allow for:
- Remote monitoring and control, enabling operators to track machine performance from anywhere.
- Data-driven decision-making based on real-time information, helping to optimize processes, detect issues early, and improve overall productivity.
- Better traceability for parts, ensuring that every step of the manufacturing process is documented and can be easily accessed for quality assurance purposes.
4. Advancements in Laser Technology
Laser technology will continue to evolve, with innovations improving cutting speed, precision, and material compatibility. For example:
- Fiber lasers are becoming more common due to their high efficiency and ability to cut thicker materials with better quality.
- Multi-wavelength lasers will allow the hybrid systems to process a wider range of materials more efficiently.
- Laser beam shaping will enable better control over heat distribution, improving edge quality and reducing thermal distortion.

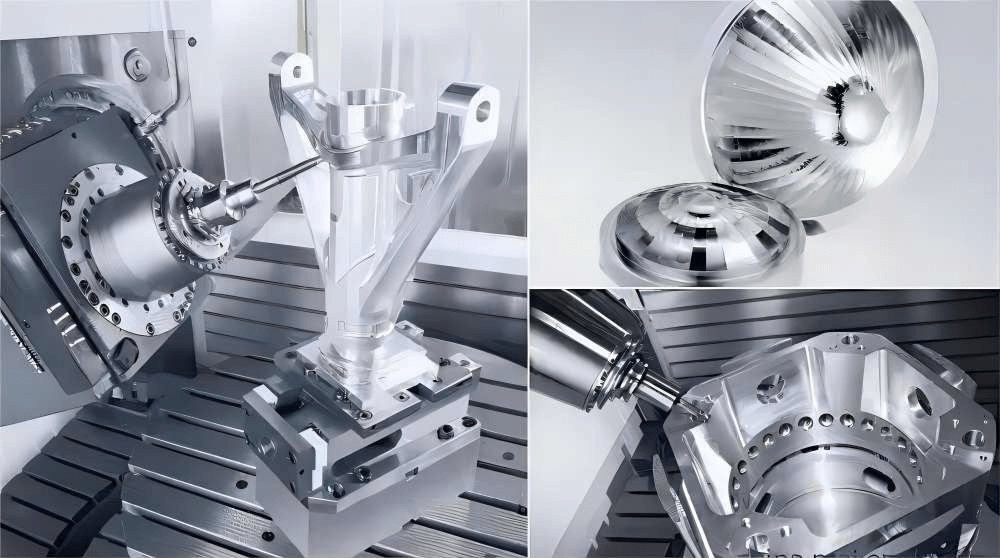

5. Development of Hybrid 5-Axis Systems
As 5-axis CNC milling becomes more common, combining it with laser technology will lead to more advanced hybrid 5-axis systems. These systems can:
- Perform milling and laser processing simultaneously on multiple axes, allowing for the creation of complex, three-dimensional parts with intricate details.
- Increase flexibility by allowing for more intricate geometries that traditional 3-axis milling or laser cutting could not handle efficiently.
6. Sustainable Manufacturing Practices
The future of hybrid CNC milling and laser processing will also focus on sustainability. Manufacturers are increasingly seeking ways to reduce energy consumption and waste. Some expected developments include:
- Energy-efficient machines: New hybrid systems will be optimized for lower energy use without sacrificing performance.
- Recycling materials: Laser processing can create cleaner cuts with minimal material waste, and combined with CNC milling, manufacturers can reduce scrap production and maximize material usage.
7. Precision for Additive Manufacturing Integration
The hybrid systems may further integrate with additive manufacturing (3D printing) to create even more versatile solutions. In this scenario:
- CNC milling can prepare the base part, while laser processing could be used to finish intricate details or add laser sintering for selective areas.
- Hybrid systems may also be used in industries like aerospace, where lightweight, high-precision parts are essential.
8. Expansion of Hybrid Systems for Customization
As demand for customization increases in industries such as automotive, medical devices, and consumer electronics, hybrid CNC milling and laser systems will play a crucial role in mass customization. These systems will allow manufacturers to produce:
- Tailored parts and components with a quick turnaround time.
- On-demand modifications to existing parts, enabling smaller batch production without sacrificing efficiency.
9. Collaborative Manufacturing Networks
The future will likely see the growth of collaborative manufacturing networks powered by hybrid technologies. Companies can:
- Share resources and capabilities in hybrid CNC and laser processing across regions or even globally.
- Leverage cloud-based platforms to coordinate production schedules, manage workloads, and facilitate real-time collaboration among different facilities.
10. Greater Focus on Material Diversity
Hybrid systems will continue to expand in their ability to process a broader variety of materials, from metals and plastics to composites and ceramics. Advancements in laser processing, in particular, will enable:
- The ability to process harder, more exotic materials, such as titanium or high-performance alloys, alongside traditional materials.
- The development of multi-material hybrid parts, where CNC milling shapes one material, and laser processing applies detailed features or markings to another.
Final Thoughts
Combining CNC milling with laser processing is a powerful evolution in manufacturing. It represents a strategic fusion of strength and precision, enabling faster production cycles, higher quality outputs and a wider range of design possibilities. As technology advances and industries push for smarter manufacturing solutions, CNC-laser integration will become an essential part of the future manufacturing industry.
