Custom Metal Stamping Dies for Specialized Manufacturing Needs
As industries strive to meet increasingly complex and specific product requirements, custom metal stamping dies have become essential tools for delivering high-precision, high-efficiency production outcomes. These specialized tools are essential of efficient, high-volume, and high-precision metal forming, especially for industries that demand unique part geometries, tight tolerances, and consistent repeatability.
Table of Contents
What are Custom Metal Stamping Dies

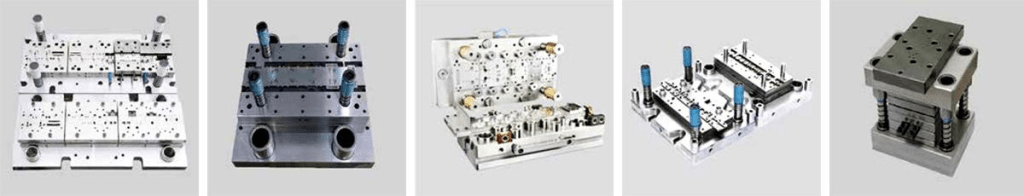

Custom metal stamping dies are precision-engineered tools designed to transform flat metal sheets into specific shapes or components through deformation processes such as cutting, bending, forming, or drawing. Unlike off-the-shelf stamping dies, custom dies are developed for unique product designs that cannot be achieved using standard tooling.

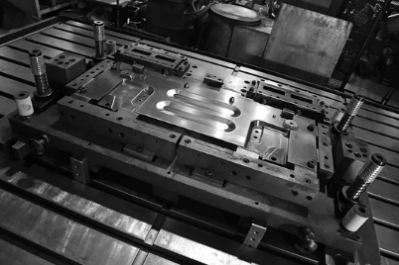

These dies are typically used in metal stamping presses and can range from simple single-station dies to complex progressive or transfer dies that perform multiple operations in a single press cycle.
The Importance of Custom Metal Stamping Dies in Specialized Manufacturing
1. Tailored Design for Complex Components
Standardization works well in mass production of simple items, but many industries operate well outside that norm. Sectors like aerospace, medical devices, automotive, and electronics frequently require parts with intricate designs and highly specific tolerances. Custom stamping dies are engineered with these exact demands in mind. Every die is designed to match the unique properties of the component—whether that involves challenging materials, deep draws, or complex contours.
This customization not only ensures the part performs reliably in its application but also enhances production repeatability. It reduces variability between parts, leading to more efficient assembly lines, fewer quality control issues, and greater end-product reliability.
2. Enabling Innovation Through Flexibility
Custom metal stamping dies enable engineers and designers to push the boundaries of what’s possible. The limitations of standard tooling often restrict creativity, but with a custom die, innovations such as lightweight geometries, intricate cut-outs, or multi-functional forms become achievable.
This flexibility is especially valuable in prototype development and short production runs of highly specialized items, where design freedom is paramount. A well-designed custom die makes it possible to prototype advanced ideas and scale them efficiently without sacrificing performance or quality.
3. Cost-Efficiency Across the Product Lifecycle
Although custom dies often require a higher upfront investment than standard ones, their long-term cost benefits are considerable. They reduce scrap rates, minimize production downtime, and eliminate many secondary operations that would otherwise add time and labor costs.
For high-volume production, even minor improvements in stamping efficiency or material utilization can lead to significant savings. When considering the total lifecycle of a product, the return on investment for custom stamping dies is often substantial.
4. A Strategic Asset in Specialized Manufacturing
Custom metal stamping dies are not just tools and they are strategic assets that empower manufacturers to meet the challenges of modern production. They ensure that even the most complex parts can be made quickly, accurately, and consistently. In specialized industries, where product design evolves constantly and precision is non-negotiable, the ability to produce custom parts efficiently can be the difference between success and stagnation.
Key Elements of Designing Custom Metal Stamping Dies
1. Understanding the Application and Part Requirements
The first and most fundamental step in designing a custom metal stamping die is a thorough understanding of the part it will produce. This includes analyzing the geometry, dimensions, material type, thickness, tolerances, and functional requirements. Whether the part is intended for use in aerospace, automotive, electronics, or medical devices, the application informs decisions on die configuration, material selection, and required forming operations.
Close collaboration between design engineers and the end user helps ensure that the die will fulfill not only dimensional accuracy but also structural performance and manufacturing feasibility.
2. Material Selection and Behavior
Each metal reacts differently under pressure. Stainless steel, aluminum, copper, and high-strength alloys all have distinct properties like ductility, work-hardening tendencies, and springback behavior. Die designers must select materials and plan forming operations that accommodate these behaviors.
In some cases, simulations or finite element analysis (FEA) are used to predict how the material will deform, allowing designers to account for wrinkles, cracks, or distortion early in the process and optimize die features accordingly.

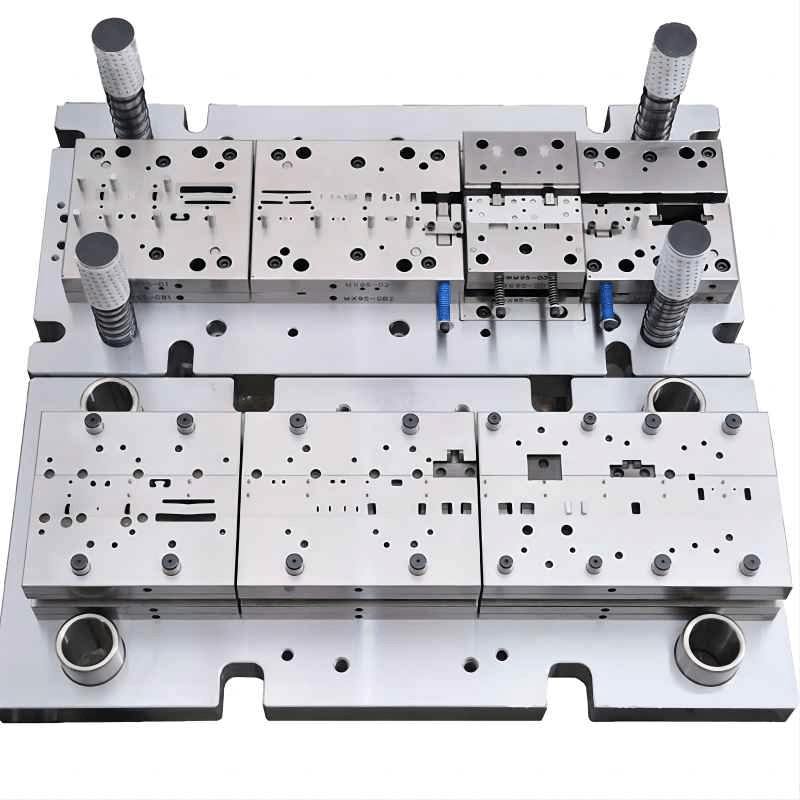

3. Die Type and Configuration
Depending on the complexity of the part, different die types may be used, such as single-hit dies, compound dies, progressive dies, or transfer dies. Each type offers unique advantages. For instance, progressive dies are ideal for high-volume production of complex parts with multiple features, while single-hit dies may be sufficient for simpler, low-volume tasks.
Die configuration includes the layout of stations, blanking and piercing operations, bending or forming sections, and stripping mechanisms. Choosing the right configuration ensures a smooth flow of material and efficient tool function.
4. Precision Alignment and Tooling Tolerances
Maintaining tight tolerances is critical in custom die design. Poor alignment or improperly set clearances can lead to part defects, excessive tool wear, and equipment damage. Designers must calculate the correct punch-to-die clearance based on material thickness and type.

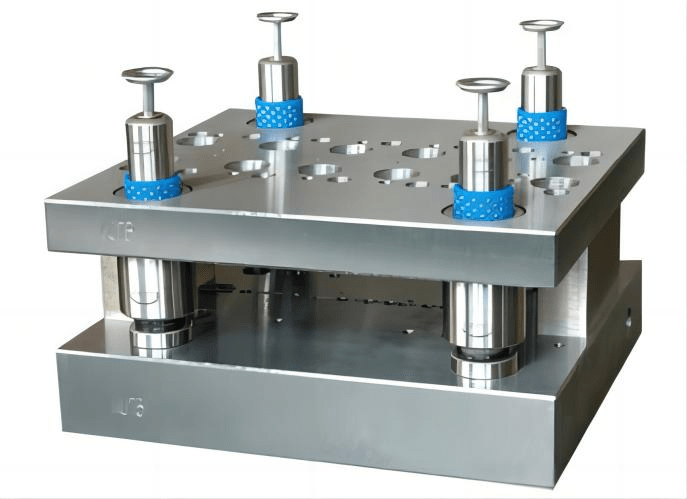

Additionally, attention must be paid to alignment features such as guide pins, bushings, and heel blocks to ensure consistent operation throughout the die’s lifecycle. Any misalignment, even at the micron level, can result in significant quality issues during production.
5. Incorporating Strip Layout and Material Utilization
An efficient strip layout determines how the metal strip is fed through the die and how parts are nested within the material. This not only affects the overall material usage and scrap rate but also influences the ease of automation and feeding mechanisms.
Designers strive to maximize material yield by optimizing the arrangement of parts, minimizing webbing, and ensuring that pilot holes or feed mechanisms do not interfere with the stamping process.
6. Ease of Maintenance and Longevity
A high-performing die must also be easy to maintain. Wear-prone areas like cutting edges, punches, and bushings should be designed for accessibility and replacement. Hardened tool steels, coatings, or surface treatments can be selected to extend tool life, particularly in high-volume or abrasive material applications.
Forward-thinking design also includes provisions for cleaning, lubrication, and adjustment, ensuring minimal downtime and consistent output.
7. Integration with Press Equipment
Finally, the die must be compatible with the stamping press it will operate in. This includes ensuring correct die height, mounting hole patterns, and alignment features. Automation integration—such as robotic loading/unloading or in-line inspection—can also influence design elements like part ejection or scrap removal systems.
Advanced Technologies Empowering Custom Metal Stamping Die Manufacturing
1. CAD/CAM Software
The foundation of every modern custom stamping die is a detailed digital model. Computer-Aided Design (CAD) software enables engineers to design complex dies with incredible accuracy. Features like 3D modeling, virtual assembly simulations, and interference checking allow designers to visualize every element of the tool before any metal is cut.
Once the design is complete, Computer-Aided Manufacturing (CAM) software bridges the gap between digital plans and real-world production. CAM automates the generation of machining paths, tool selections, and setup procedures, drastically reducing manual errors and accelerating production timelines.

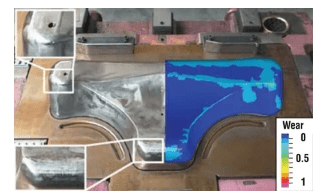

2. Finite Element Analysis (FEA)
Finite Element Analysis has become a vital part of the die development process. By simulating how a material will behave under forming pressures, FEA allows engineers to identify potential issues such as wrinkling, cracking, or springback—before a die is ever built.
This predictive capability enhances design reliability, lowers development costs, and improves final part quality. In complex applications such as high-strength steel forming or deep drawing, FEA is especially valuable in optimizing tool geometry and process parameters.

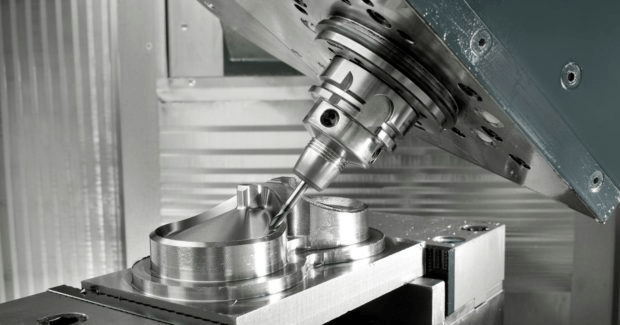

3. CNC Machining
CNC machining is the backbone of modern die manufacturing. With the ability to perform high-speed, multi-axis operations, CNC machines produce intricate die components with remarkable precision. Features like micro-milling, contouring, and high-tolerance hole drilling can all be achieved with consistency.
Moreover, CNC technology supports lean manufacturing by reducing setup time, enabling quick changes, and allowing for the efficient production of small-batch custom dies.
4. Wire EDM and Laser Cutting
When conventional machining isn’t sufficient for ultra-precise or delicate features, technologies like Wire Electrical Discharge Machining (EDM) and laser cutting step in. Wire EDM is ideal for creating intricate internal geometries and tight-tolerance cutouts, particularly in hardened tool steels.
Laser cutting, on the other hand, is valued for its speed and versatility—especially during the early stages of die prototyping. Both methods enhance flexibility in manufacturing custom dies for varied applications.
5. Additive Manufacturing
Although still emerging in mainstream die production, additive manufacturing or 3D printing is beginning to impact custom die design in powerful ways. It is particularly useful for producing complex internal cooling channels in die shoes or experimental tooling inserts with reduced lead times.
Hybrid manufacturing approaches that combine additive and subtractive methods are enabling faster prototyping and repair of custom die components, especially for low-volume or highly specialized production needs.
6. Automated Inspection and Digital Metrology
Ensuring dimensional accuracy and quality assurance has never been more critical. Coordinate Measuring Machines (CMMs), laser scanners, and vision inspection systems now play an integral role in validating die components. These systems offer real-time feedback, enabling manufacturers to detect deviations early and reduce rework or scrap.
Some advanced systems even integrate with CAD data, allowing for automatic comparison between designed and manufactured geometry.

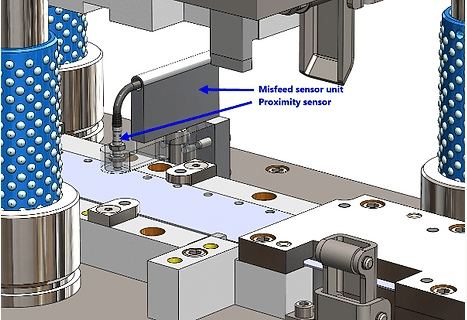

7. Data-Driven Manufacturing and Industry 4.0 Integration
The rise of Industry 4.0 has introduced intelligent data collection and real-time monitoring to die manufacturing. By connecting machines, software, and sensors through the Industrial Internet of Things (IIoT), manufacturers can track tooling conditions, predict maintenance needs, and optimize production flow.
This digital integration not only increases the lifespan and reliability of dies but also improves cost efficiency by minimizing downtime and waste.
Industry Applications of Custom Metal Stamping Dies
| Industry | Typical Applications | Stamping Die Roles |

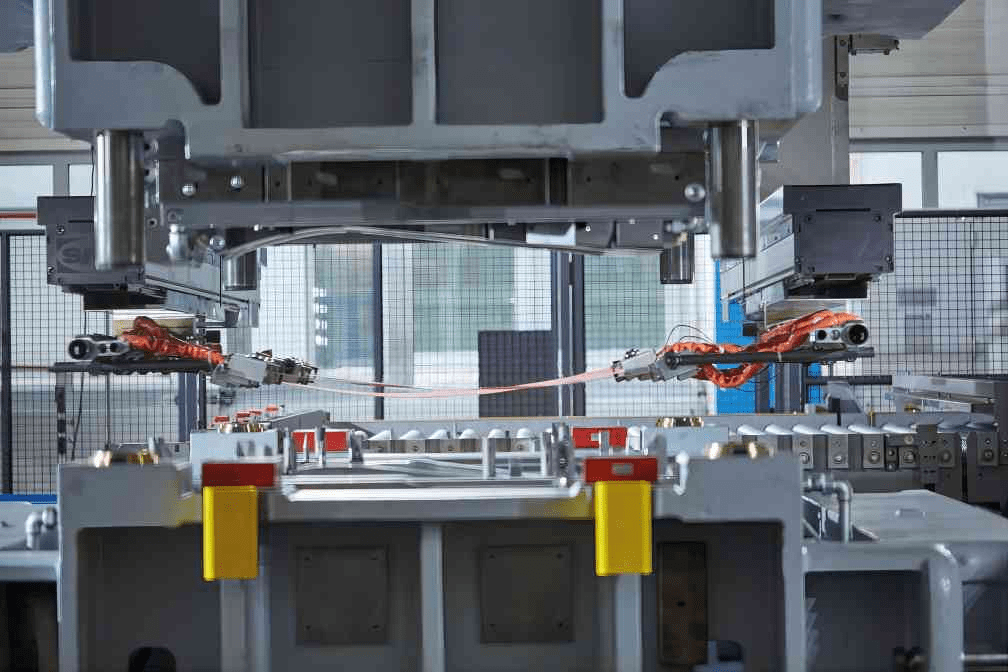

| Automotive | Body panels, brackets, engine components, transmission parts | High-volume progressive dies for precision forming, piercing, and bending |
| Aerospace | Structural brackets, turbine engine parts, airframe components | High-precision dies for lightweight metals with tight tolerances |
| Electronics | Connectors, terminals, EMI shields, micro-components | Micro-stamping dies for fine features and thin materials |
| Medical Devices | Surgical tools, implant components, device housings | Cleanroom-compatible dies with high accuracy and corrosion-resistant materials |
| Consumer Goods | Appliance housings, hinges, fasteners, decorative trims | Custom dies designed for aesthetic quality and volume flexibility |
| Telecommunications | Antenna parts, signal connectors, enclosures | Precision dies for forming and cutting miniature components |
| Renewable Energy | Solar panel frames, battery casings, wind turbine hardware | Durable dies for handling non-ferrous and composite materials |
| Construction | HVAC components, electrical boxes, framing hardware | Heavy-duty dies for thick-gauge metals and high structural integrity |
| Defense/Military | Armor panels, weapon components, communication housings | Specialized dies for high-strength alloys and classified specs |
| Home Appliances | Washer/dryer panels, oven parts, control interfaces | Cost-efficient dies supporting ergonomic and design-driven component production |
Selecting the Right Custom Metal Stamping Die Manufacturer
A successful custom metal stamping die project requires collaboration with an experienced manufacturers, the key consideration as the blowing chart
| Selection Criteria | What to Look For |
| Experience & Expertise | Proven track record in your industry; familiarity with specific material/forming needs |
| Design Capabilities | In-house CAD/CAM design team; use of simulation tools like FEA |
| Technological Capability | Advanced CNC machining, EDM, and inspection tools; integration of Industry 4.0 tech |
| Customization Flexibility | Ability to develop dies tailored to unique part geometries and production volumes |
| Quality Assurance | Certifications (ISO, IATF, etc.); robust inspection protocols; use of CMM or laser scanners |
| Tool Longevity & Maintenance | Use of durable materials; options for die refurbishment or ongoing maintenance support |
| Lead Time & Delivery | Efficient workflow, clear timelines, and on-time delivery history |
| Customer Support | Responsiveness, technical assistance, and after-sales service |
| Cost Transparency | Competitive pricing with clear quotations and breakdown of costs |
| Reputation & References | Client testimonials, case studies, or long-term business partnerships |
Final Thoughts
As the demand for product innovation and precision continues to rise, investing in high-quality, custom metal stamping dies can drive operational excellence and give manufacturers a significant competitive edge. Whether it’s achieving intricate part shapes or meeting demanding regulatory standards, custom dies make it all possible efficiently, accurately, and reliably.
