Fender Washer vs Flat Washer - Which One to Choose

For mechanical assembly, or for routine maintenance, washers appear as tiny parts but they serve crucial roles when locking screws, spreading the load and securing surfaces.

On the list are washers for fender washer vs flat washer could be one of the most well-known types. What is the difference between flat and fender washers? Which is the most suitable time to make a decision on one or the other? This article will provide you with the complete information. Let’s get started!

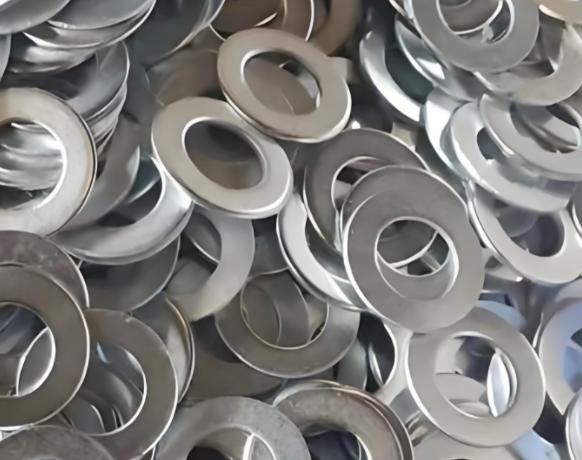

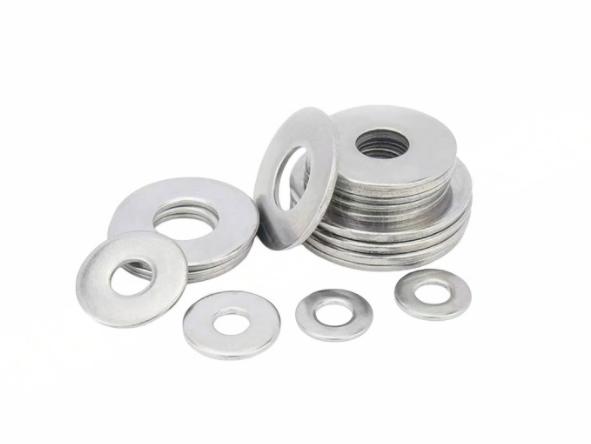

Part 1. What is a Flat Washer?

Flat washer is a disk made of round form with a hole in the center. It can be placed over a bolt, screw or a fastener. Though it appears simple but it’s a vital supporting element in a number of mechanical and structural components. Its primary functions include:

1. Load Distribution

When tightened, a bolt creates a clamping force which can cause the material under.

A flat washer spreads the burden over a wider surface, thus reducing the possibility of distorting or deforming soft materials such as wood, plastic or aluminum. This is crucially important for assemblies that have delicate or thin components.

2. Surface Protection

Flat washers act as an element of cushioning between the turning or tightening device of the fastener as well as its surface where the part is secured. They protect against scratches, dents or abrasions, specifically on the polished or coated surface of the item.

Wear may result from repetitive loosening and tightening in the course of time. Flat washers can reduce the chance of injury.

3. Improved Fastening Stability

While flat washers do not their own locks, but they help to maintain joint stability by providing an even, stable contact with the fastener’s surface.

This decreases the chance of bolt and nut loosening because of vibration, movement or a lack of distribution of pressure.

4. Spacing and Alignment

Flat washers can also be used in other circumstances to provide the proper alignment or spacing between components. This is the case in assemblies that have precision tolerances or in cases where components need to compensate for differences in height.

5. Material Versatility

Flat washers are manufactured of various materials in order to meet the requirements of diverse environments and needs such as:

Carbon steel (for general use)
Steel with stainless steel (for resistance to corrosion)
Brass or copper (for conductivity, or for decorative reasons)
Plastic or nylon (for non-conductive or light applications)

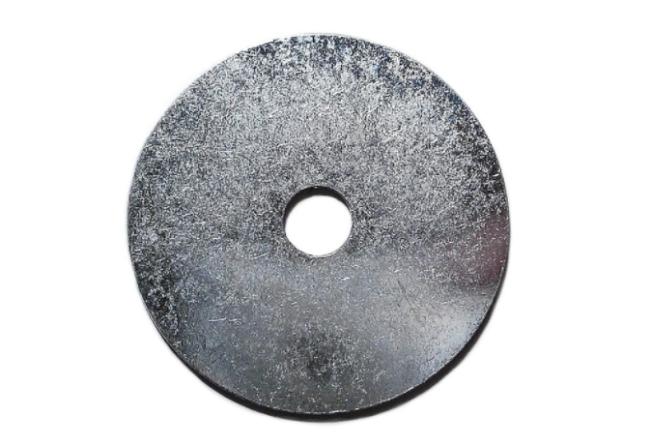

Part 2. What is a Fender Washer?

A Fender washer is one of the flat ones that has the same general shape like a disc that has an inside hole. It is however identified by a bigger diameter than the hole inside. The shape of the hole gives it a distinctive look and has distinct advantages in relation to the covering process and distribution of pressure.

1. Larger Contact Surface

The most prominent of characteristics of fender washers is their larger outer diameter. It provides a much greater contact area than the typical flat washers.

This gives the fastener the possibility of spreading its weight over a greater surface, which reduces the strain and damage to materials below. This is particularly useful when working with thin or soft materials.

2. Ideal for Covering Oversized or Damaged Holes

Fender washers are typically employed to cover irregular or large holes. In retrofit or repair scenarios where holes that are precision-drilled are not necessarily solid Fender washers provide an effective and easy solution to restore functionality and preserve their strength.

3. Prevention of Pull-Through

When fixing material such as sheets of plastic or metal as well as wood, it is a possibility that the bolt or screw could pull the product which is in tension.

The greater surface that the washers are fender-like disperses the pressure and prevents this from happening, especially in the case of fixing panels made from thin insulation or composites.

4. Origin and Historical Use

The first time it was used in the automobile industry, particularly the installation and repair of car fenders (the panels that protect the wheels) and is the origin of the term “fender washer”.

Its large surface area allows for the fastening of thin sheet metal pieces without breaking or deforming it, and is perfect for bodywork.

5. Material Options

Similar to flat washers, fender washers are made of different materials, including:

Galvanized or zinc-plated steel (for general use and resistance to corrosion)
Steel with stainless steel (for marine or outdoor environments)
Copper or brass (for applications that are decorative, or for conductive uses)
Rubber or plastic (for water-proof or non-marring seals)

They also come in different thicknesses and diameters which allows users to pick the most suitable combination of the load and compatibility with other materials.

Part 3. Flat Washers vs Fender Washers

We’ve made a brief table to show the major differences between flat washers as well as Fender washers. In the subsequent sections, we’ll delve into each of the aspects.

Item	Flat Washer	Fender Washer
Outer Diameter	Smaller	Larger
Load Distribution	Standard	Superior is ideal for fine or soft materials
Typical Applications	General mechanical fixing home improvement	Repair of over-sized holes, panels made from plastic sheet metal fastening
Surface Coverage	Normal	Extended
Cost	Lower	A little higher

1. Outer Diameter

Flat washers: Flat washers are generally smaller in their outer diameter. Their compact dimensions make them perfect for general-purpose fastening, where only the essential load distribution is needed.

A smaller dimension is enough to shield the fastener from scratching the surface but it’s not enough to provide more coverage.

Fender washers: Fender washers have a bigger outer diameter than the flat washers. They are perfect for use in applications which require a greater distance of contact, specifically when dealing with large-sized holes and thin or delicate surfaces.

2. Load Distribution

Flat washers: They offer the standard load distribution. They distribute the weight of the screw or bolt over a smaller space to prevent indentation or destruction for the product. This is enough for the majority of common materials such as wood, metal, or plastic used in daily applications.

Fender washers: Fender washers are larger in size that is why they have an improved load distribution.

They are made to distribute the force across a greater area, thus reducing the risk of the fastener pulling on or piercing the material which is especially useful for working on soft sheets of sheet metal, plastics or composites.

3. Typical Applications

Flat Washers: How are flat washers used for? Well, they’re utilized in general mechanical fastening as well as home improvement projects.

When it comes to you are assembling the furniture or mounting brackets or fixing machine parts They are an essential component for both DIY and industrial environments. Their affordability and simplicity are the main reason they’re a must-have item for the everyday tasks.

Fender Washers: Fender washers can be used for repair of holes that are too large sheet metal fastening, support for panels made of plastic as well as automotive bodywork.

Originally, they were used for repair of fenders for cars (hence that name) They are now extensively used in situations in which more support or strength is required beneath the fastener.

4. Surface Coverage

Flat Washers: Due to their small diameters, flat washers offer great surface contacts. They provide contact between the fastener and material but their size isn’t large enough for the small holes or materials which require greater durability.

Fender Washers: A fender washer’s greater contact with the surface does not just helps spread pressure better, but it can also allow it to cover larger or even more unique holes.

This extra coverage is ideal to cover damage or provide reinforcement without the need for additional hardware.

5. Cost

Flat Washers: Flat washers can be described as cheap components. They are produced in huge quantities using a small amount of materials and are made using simpler methods.

Their widespread use ensures they are cost-effective, affordable for both industries and consumers alike.

Fender Washers: Fender washers tend to be more expensive than flat washers because they are bigger in size and use more materials.

Additionally, they are likely to be more effective in heavy or more specific applications. Although the price may be more expensive, the performance benefits in applications that require a lot of load or are critical typically offsets the extra expense.

Part 4. When to Use Fender Washers or Flat Washers?

1. When to Use Fender Washers?

If you’re securing thin soft, soft, or easily deformed materials such as plywood, plastic, thin metal or rubber Fender washers are the answer. The larger diameter of its outer rim spreads the load better and is resistant to puncturing, cutting, or breaking.

It’s also helpful for making holes bigger or to support fragile surfaces, ensuring the stability that standard washers fall.

In high-vibration, outdoor, or outdoor applications, like plumbing, automobile repair, or even machinery Fender washers provide better shock resistance and pull-out for longer-term durability.

Generally speaking, fender washers are ideal for the following scenarios:

Fastening materials like plastic that is thin or soft, as well as sheet of metal.
Reinforcing or covering damaged surfaces.
Applications that involve heavy loads or that require a larger contact surface.
Environments that are heavy-duty or outdoor where greater stability in connection is required.

2. When to Use Flat Washers

Flat washers are commonly employed in mechanical fastenings that are common particularly when the structure is brittle, a small area is accessible, or exact fitting is needed. The small size of their form offers limited protection for the surface and transfer of loads between the parts and head of bolt.

They’re best used when supporting large materials such as cast iron, steel or hardwood. They provide enough support without causing damage. Flat washers can also improve the stability of connections in machines or electrical installation as well as furniture by reducing the possibility of loosening.

Because of their straightforward layout and cost-effective flat washers are the best suitable for budget-friendly, high-volume applications. They can help simplify the process of buying and assembly.

In general, flat washers are most effective in the following scenarios:

Applications that have small space or very precise requirements.
If the material is durable enough, it doesn’t require any additional support.
Moderate fastening loads.
Cost-driven industrial projects or standardized processes in which efficiency and affordability are crucial.

In Summary

Flat washers can be used for the majority of mechanical fastening needs and are able to perform well in the most common situations. Fender washers are better in situations with a tiny holes, thin material or a large load distribution. The choice of the right washer is not only a way to increase the efficiency of fastening but also prolongs the longevity of the equipment and lowers cost of maintenance.
