What are Flat Spiral Springs: Working Principles and Applications

Flat spiral springs, with their unique design and functional characteristics, play a crucial role in numerous industries and devices. From electrical switches to surgical instruments, these springs offer a versatile solution for applications requiring controlled deflection, force generation, and energy storage. Understanding the working principles and exploring their wide-ranging applications can shed light on the significance of flat spiral springs in various fields. In this article, we delve into the working principles of flat spiral springs, exploring how they generate force and provide deflection. Additionally, we highlight some key applications where these springs are commonly utilized, showcasing their versatility and value in modern engineering.

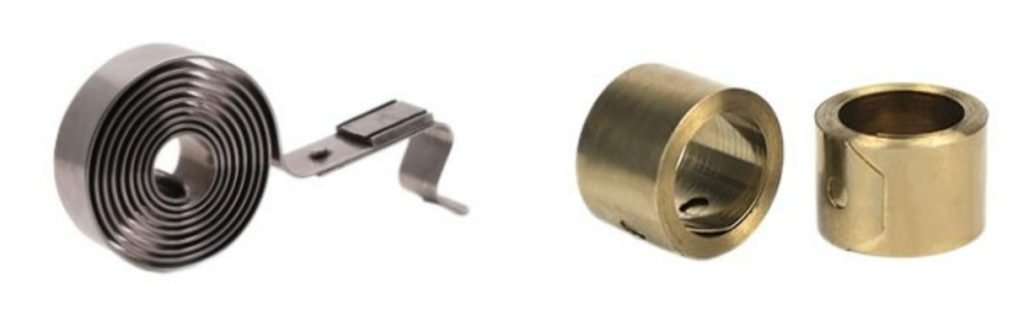

KENENG flat spiral springs

Working Principles of Flat Spiral Springs

The working principles of flat spiral springs are based on their unique design and structure. Here is an explanation of how flat spiral springs function:

  • Structure: Flat spiral springs consist of a flat strip of material wound in a spiral shape. The strip is coiled tightly, with each turn adjacent to the previous one. This spiral configuration provides the spring with its characteristic flexibility and resilience.
  • Force Generation: Flat spiral springs generate force through their inherent tendency to resist deformation. When a load or force is applied to the spring, it undergoes a deflection or deformation. The spiral shape allows the spring to absorb and store the energy exerted on it.
  • Elasticity and Restoring Force: Flat spiral springs are made from materials with high elasticity, such as steel or certain alloys. This elasticity enables the spring to deform when a force is applied and then return to its original shape when the force is removed. The restoring force is the force exerted by the spring to return to its original position.
  • Deflection and Load Distribution: When a force is applied to a flat spiral spring, it deflects or compresses along the spiral axis. The deflection can be linear or angular, depending on the spring’s design and application. Flat spiral springs distribute the load evenly across their coils, reducing stress concentration on specific points.
  • Energy Storage and Release: As the spring deflects, it stores potential energy within its structure. This energy is stored in the form of strain or deformation within the material. When the force is removed or reduced, the spring releases the stored energy, pushing back or pulling back to its original shape.
  • Spring Rate and Stiffness: The spring rate or stiffness of a flat spiral spring refers to the amount of force required to deflect the spring by a certain distance. The spring rate depends on factors such as the material properties, dimensions, and coil geometry of the spring.
  • Resonance and Natural Frequency: Like other types of springs, flat spiral springs have a natural frequency at which they oscillate when excited. This natural frequency is determined by the spring’s physical characteristics and can have implications for certain applications, such as vibration isolation or timing mechanisms.

By leveraging these working principles, flat spiral springs are widely used in various applications where controlled deflection, energy storage, and force generation are required. Their unique design offers advantages such as compactness, high load capacity, and resistance to fatigue and relaxation.

flat spiral springs

Applications of Flat Spiral Springs

Flat spiral springs find applications in various industries and devices where their unique properties and characteristics are advantageous. Here are some common applications of flat spiral springs:

  • Electrical and Electronics:

Switches and electrical contacts: Flat spiral springs are used to provide reliable electrical contact and ensure proper switch operation.

Connectors and terminals: They are used to maintain electrical continuity in connectors and terminals, ensuring secure connections.

  • Automotive Industry:

Fuel injection systems: Flat spiral springs are utilized in fuel injectors to control fuel flow and maintain proper pressure.

Clutch mechanisms: They are employed in clutch systems to provide engagement and disengagement forces.

  • Medical Devices:

Surgical instruments: Flat spiral springs are used in various surgical instruments to enable precise movement and control.

Implantable devices: They can be found in medical implants such as cardiovascular devices and orthopedic implants.

  • Aerospace and Defense:

Avionics and navigation systems: Flat spiral springs are utilized in control mechanisms and switches within aircraft and spacecraft.

Military equipment: They find applications in firearms, ammunition, and various defense mechanisms.

  • Mechanical Engineering:

Mechanical seals: Flat spiral springs are used in mechanical seals to maintain proper sealing and prevent leakage.

Locking mechanisms: They are employed in locks, latches, and hinges to provide tension and secure closure.

  • Consumer Products:

Writing instruments: Flat spiral springs are used in retractable pens and mechanical pencils to control the pen tip or lead.

Toys and games: They can be found in various toys and games that involve spring-loaded components.

  • Industrial Equipment:

Timing mechanisms: Flat spiral springs are utilized in clocks, watches, and timing devices to provide precise and consistent movement.

Valve systems: They are used in valve assemblies to control fluid flow and actuate valves.

  • Automotive Suspension:

Suspension systems: Flat spiral springs can be employed as auxiliary springs or vibration dampers in automotive suspension systems.

These are just a few examples of the diverse range of applications where flat spiral springs are utilized. Their versatility, compact design, and ability to provide controlled force and deflection make them valuable components in numerous industries and devices.


As we conclude our exploration of flat spiral springs, it becomes evident that these compact and resilient components have a significant impact on numerous industries and devices. Their unique working principles, including their ability to generate force, distribute loads, and store energy, make them invaluable for applications that require controlled motion and precise functionality. From electrical switches to medical instruments, and automotive systems to consumer products, flat spiral springs offer a reliable and versatile solution. As technology advances and new challenges emerge, the demand for these springs is likely to continue to grow, driving further innovation and refinement. With their remarkable characteristics and the broad range of applications, flat spiral springs remain an essential element in modern engineering, ensuring efficient and reliable operation in countless devices and mechanisms.
