Grub Screw vs Set Screw - How to Choose

Fasteners play an important function in a variety of mechanical systems, specifically when it comes to locking and stabilizing parts. In particular the grub screws and set screws are among the most widely utilized types, typically employed to secure wheels, shafts, gears and other pieces securely in their place.

While they might appear like at first glance but there are significant differences in terms of style as well as their use and. In this article we’ll take a deeper examine the grub screw vs set screw and help you select the best screw for your needs.

Part 1. What is a Grub Screw?

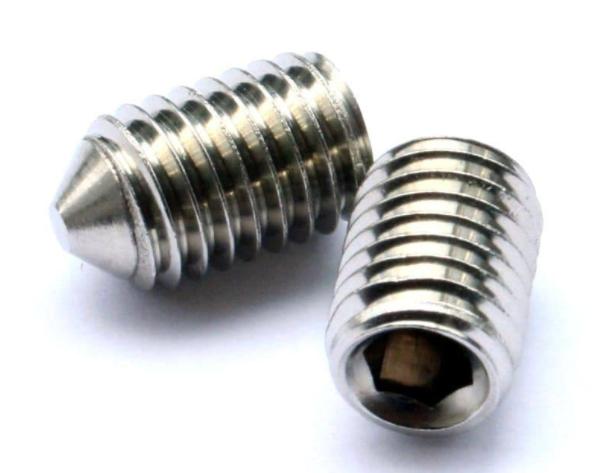

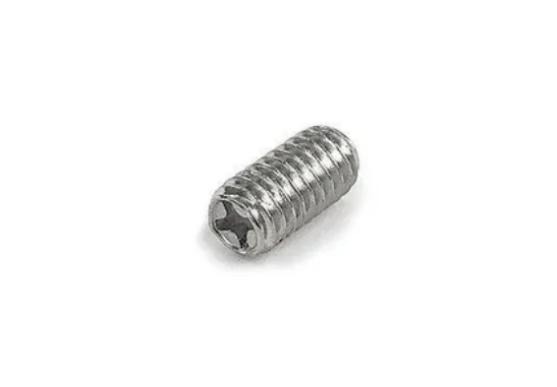

Grub screws (also called headless set screws) is a kind of screw that doesn’t possess a protruding head. Instead, the entirety is threaded and has been designed so that it can be in a pre-drilled slit when it is installed. Grub screws are typically used to join two items usually to secure a rotating component like a gear or pulley to the shaft.

Regarding appearance the grub screw usually has a cylindrical form and, as the name implies, doesn’t have the typical screw head. This screw can be driven into a hole for mating with internal drive mechanisms, like an socket hex (Allen keys), Torx, or different special-shaped shapes, based on the particular shape.

End Types and Drive Styles:

The grub’s tipped screw is able to be adjusted to fit different needs:

Flat Point: The standard for the majority of applications. It provides simple hold power that doesn’t damage the surface.
Cone Point: penetrates into the material to provide maximum strength of hold commonly used in situations where permanent or high-torque fixation is needed.
Point of the cup: Features a slight concave edge that is more secure on the surface of mating.
Point for dogs: The tip is cylindrical and can be inserted into a slot or hole for exact placement.
Knurled cup point: Adds an extra grip by way of an edge that is serrated, perfect for areas with high-vibration.

The design of the drive (the socket where the tool is fitted) can also be different:

Hex (Allen) drives are the most popular.
Slotted drives and Torx drives can also be found to meet specific requirements.

Common Applications of Grub Screws

Grub screws are used extensively in the fields of mechanical engineering, automation electronics, as well as furniture assembly. Common applications include:

Secure small parts: Grub screws hold items like pulleys, collars and gears tightly to a shaft, thus preventing moving between them during the course of operation.
Gearbox and motor components: In automated systems the grub screws attach motor shafts to couplings, gears as well as other rotating components to ensure precise transmission of torque with no slippage.
High-precision equipment: In optic devices instruments for research, or in fine machines, grub screws are employed when an easy, flush installation is needed.
Furniture fittings: Some pieces of furniture that are modular make use of grub screws to conceal fastening. This gives the furniture a more elegant and clean look.

In keeping in a flush position or being recessed in the wall, grub screws give an elegant appearance and decrease the chance of snagging which makes them ideal for designs that are small or require space.

Part 2. What is a Set Screw?

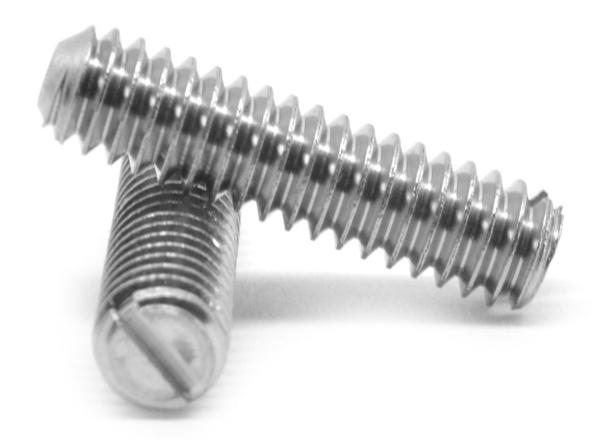

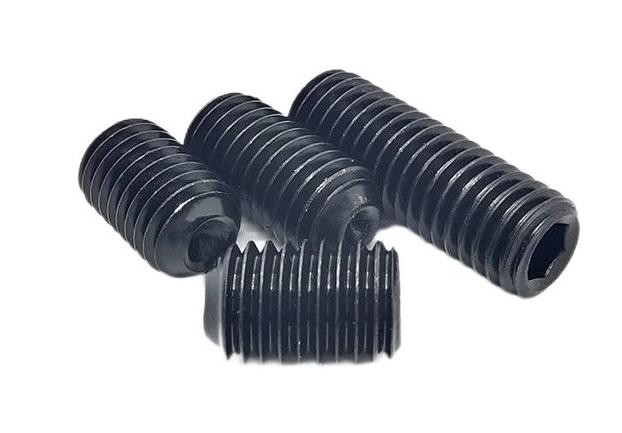

A set screw is a form of fastener that is like a grub screw and a grub screw, they are both heads-only and are put right into a threaded nut for securing one object against another, typically without the need of the use of a screw. But set screws are specifically designed to secure the object (like the pulley, a gear or wheel) solidly on a shaft, thus preventing any movement that could cause it to slide or turning along the shaft.

Although often used interchangeably with grub screw but”set screw” is a term that can be applied to any type of “set screw” in some areas could be used to refer to any screw to fasten without a head, regardless of whether it has heads or not. In the context of mechanical engineering, “set screw” usually refers to a fastener that is headless and embedded on the surface of a component similar to an grub screw.

Tip Designs:

Similar to grub screws set screws are available in a variety of tips to meet different needs for performance:

Flat Point: It provides a simple force of holding, with little surface damage. It is ideal for adjustment on a regular basis.
Cone Point: Permeates the shaft’s surface, delivering maximum hold power and stopping slippage during high loads.
Cup points: Features a slightly concave tip that pierces the shaft’s surface, balancing durability and holding strength. It can also be reused.
Ball point: It has a round tip (ball-shaped) to allow for some slight misalignment, or for contact that does not damage the shaft.

Drive Styles:

Set screws are generally driven by:

sockets that are Hex (Allen) sockets
Torx drives
Designs with slots for specific applications

Common Applications of Set Screws

Set screws are essential elements for a myriad of mechanical and industrial installations where solid, reliable fastening is required:

Securely attaching pulleys, gears and wheels: Set screws lock these pieces of equipment on a rotating shaft making sure that torque is transmitted efficiently and stopping unwanted movement.
Power tools for electric power: In drills, grinders and other tools powered by electricity set screws are used to ensure that the moving parts remain precisely aligned and secure in high-speed operations.
Mechanical drive system:They are used in transmission assemblies, where shafts need to be able to hold gears, sprockets or couplings in a secure manner under various load.
Bearing assemblies: Certain types of bearings have set screws that are used to connect the ring’s inside onto the shaft which reduces the possibility of slippage in the operation of the machine.

Since they provide a solid robust hold and are able to handle a wide range of material types and load requirements Set screws are essential for ensuring performance, alignment and security in a variety of mechanical systems.

Part 3. Set Screw vs Grub Screw: What’s the Difference?

While set screws and grub screws are often confused with the other because of their identical appearance, they possess distinct differences in their designs as well as their use and performance. Let’s look at them in detail:

1. Shape and Design

Grub Screw

A Grub screw has simple cylindrical bodies without an elongated head, making it perfect for situations that require a flush surface. required.

The tip may vary Common designs include a flat points for pressure on the surface cone point for more penetration, and other custom tips, based on the needs of fastening.

Set Screw

A Set screw is typically cylindrical, but it could have a smaller head that is flat, like a head or ball or a rounded head. These types of heads improve grip and provide more precise pressure on the parts that are secured.

2. Installation Purpose

Grub Screw

Mainly employed to fix an item inside another, for example, fixing a shaft into sleeves. Due to its headless design the grub screw is able to fit well within or below the surface, thus reducing the possibility of snagging or interference.

Set Screw

Primarily responsible for preventing the relative movement between two parts, particularly the rotation of the shaft. It exerts pressure directly on the shaft, locking components securely in place during operation stress.

3. Application Scenarios

Grub Screw

Commonly employed in light-duty uses such as small motors, electronics or precision machines where aesthetics and space are crucial. They’re perfect for applications where the need for minimal protrusion is required.

Set Screw

Found frequently in areas that require heavy-duty, such as mechanical drives for industrial machinery and gear assembly. Their greater holding force makes them suitable to withstand torque, vibration and axial loads of a heavy weight.

4. Common Materials

Grub Screw

Typically made from stainless steel or carbon steel with high strength or alloy steel, to provide enough protection against mechanical and corrosion wear in less demanding operating environments.

Set Screw

The commonly used material used in set screw are made of tough materials such as stainless steel and carbon steel, though they are usually coated by surface coatings or other process for hardening to withstand more mechanical load and tough operating conditions.

5. Tip/Head Designs

Grub Screw

Available in a variety of tip styles, such as flat point to ensure even pressure distribution cone point to penetrate into the surface and hex sockets for simple adjustment and removal.

Set Screw

Offers an array of of flat points for easy holding cone points for high penetration, ball point for more comfortable engagement, and round heads that are specifically designed to meet alignment requirements, providing more flexibility, based on the hardness of the shaft and what the requirements of the application.

Feature	Grub Screw	Set Screw
Shape Design	Cylindrical shape, with diverse tips (flat point cone point, flat point, etc.)	Cylindrical shape, or other shapes with particular head designs (such as ball, flat or head rounded)
Installation Purpose	It is used to hold an object within a shaft, sleeve or shaft.	It is used to stop an object from moving or spinning on the shaft
Application Scenario	Most commonly employed in light-load equipment	Most commonly used in high-load situations needing a greater force of hold
Common Materials	Carbon steel, stainless steel, etc.	Carbon steel, stainless steel, etc.
Tip/Head Design	Flat point, cone point, hex socket, etc.	Cone point, flat ball, point round head, etc.

Part 4. When should you use a Grub Screw instead of. the Set Screw?

The decision to choose the right grub screw or a set screw will depend on the specific requirements of your project

Utilize a Grub Screw to secure your components with an elegant, flush fastening that won’t dangle away from your surface. Grub screws are ideal to secure parts in light more compact applications like small machinery, precision equipment or in areas where a small amount of area is required.

Set Screws should be used for those who require more grip for motion or rotation under a extreme mechanical stress or load. Set screws are suitable for high-end machinery and gear assemblies or any other situation where components must be securely locked despite continuous torque or vibration.

Summary

Set screws and Grub screws are both commonly used and very useful fasteners. While they might look like they do however, they are different in regards to the application in terms of holding strength, durability, and design characteristics. Understanding their unique features and functions will allow you to make an educated and informed purchase choice. If you’re searching for top-quality screw set screws KENENG, a reputable set screw maker is a trustworthy supplier you can count on.
