How to Achieve Precision and Tight Tolerances in Metal Stamping?

Precision and tight tolerances in metal stamping are more important than ever. They are critical factors that determine the quality, functionality, and reliability of stamped metal parts. Industries like automotive, aerospace, electronics, and medical devices demand components that meet strict dimensional standards while maintaining high quality and consistency. Achieving precision and maintaining tight tolerances in metal stamping not only boosts product performance but also reduces waste, rework, and overall production costs.

What is Precision and Tight Tolerance in Metal Stamping

Precision in metal stamping refers to the ability to produce parts that consistently match exact design specifications. Tight tolerance in stamped parts means that the allowable deviation from specified dimensions is extremely small, often measured in thousandths of an inch (or microns).

Meeting these requirements ensures parts fit together perfectly, function properly under stress, and meet stringent safety and performance standards. In many critical applications, even a slight deviation can lead to mechanical failures, increased wear, or compromised product integrity.

Why Precision and Tight Tolerances in Metal Stamping are Important

Ensuring Proper Fit and Functionality

Many metal stamped parts are components of larger assemblies, such as engines, machinery, or electronic devices. If the stamped parts do not meet precise dimensions, they might not fit correctly, which could cause malfunctioning or even complete failure of the entire system. Tight tolerances ensure that parts fit together as designed, maintaining the integrity of the assembly.

Improving Product Reliability

In industries like aerospace and automotive, parts are often exposed to extreme conditions, such as high pressures, temperatures, or mechanical stress. Parts that don’t meet tight tolerances are more likely to fail under these conditions. Precision stamping guarantees that parts are manufactured to exact specifications, thereby improving their reliability and performance in demanding applications.

Reducing Waste and Scrap

Parts that are stamped inaccurately may need to be scrapped or reworked, which adds time and cost to the production process. By achieving precision and tight tolerances, manufacturers can reduce the amount of waste generated, leading to lower costs and increased efficiency in production. This also helps to minimize the environmental impact of manufacturing by reducing material waste.

Enhancing Aesthetic and Functional Quality

In industries like electronics or consumer goods, the visual appeal and functional quality of a product are paramount. Parts with poor tolerances can affect the overall aesthetic quality or performance of a product. For example, metal parts used in smartphones or computers need to be precisely stamped for proper fitment in enclosures and other components. Even small dimensional deviations can lead to misalignments, gaps, or improper assembly, affecting the end-user experience.

Compliance with Industry Standards

Many industries have strict regulatory standards that require products to meet precise specifications. In automotive and aerospace, for example, components must adhere to safety and performance regulations. Ensuring that stamped parts meet these tolerances is essential for compliance with industry standards and certifications. Failure to comply can result in penalties, recalls, or loss of market trust.

Cost-Effectiveness in High-Volume Production

Precision in metal stamping processes ensures that parts are consistently manufactured to meet specifications, which reduces the need for additional quality control, rework, or modifications later in the process. In high-volume production, this consistency helps reduce costs and increases throughput. The more precise the stamping, the fewer the defects, which leads to reduced time and resources spent on fixing problems.

Maintaining Structural Integrity

Especially in critical applications like aerospace and medical devices, maintaining the structural integrity of metal parts is crucial. Tolerances that are too loose can result in parts that are too weak to withstand stress, leading to potential failures during use. Precision stamping ensures the final product retains the required mechanical properties, such as strength, rigidity, and flexibility, which are vital for maintaining the part’s function under stress.

Minimizing Tooling and Equipment Wear

When parts are not stamped within the correct tolerances, there is a higher likelihood of equipment wear, misalignment, or tool damage. This can result in costly repairs or the need for more frequent tooling replacement. Precision stamping reduces these issues by ensuring the press and die work as expected, reducing unnecessary wear and tear on machinery.

Key Factors Influencing Precision and Tight Tolerance in Metal Stamping

This chart provides a comprehensive look at the main factors and how they influence the ability to maintain precision and tight tolerances during the stamping process.

Key Factor	Description	Impact on Precision and Tolerance
Die Design	The design of the stamping die must account for factors like material flow, springback, and wear.	Poor die design can lead to inaccurate part dimensions due to improper material flow or deformation.
Tooling Quality	The quality and material of the tooling (such as dies and punches) play a major role in maintaining dimensional accuracy.	Low-quality tooling can wear out quickly, leading to part inaccuracies and inconsistent tolerances over time.
Press Technology	The type of press used (e.g., mechanical, hydraulic, or servo-driven presses) and its capabilities.	Advanced presses, like servo-driven ones, offer better control over force and stroke, leading to more precise results.
Material Properties	Variations in material thickness, hardness, and consistency can affect how the material behaves during the stamping process.	Inconsistent materials can lead to uneven stamping results, causing deviations in part dimensions and making tight tolerances harder to achieve.
Press Settings and Speed	The settings used on the press, including stroke speed, pressure, and depth of cut, impact part accuracy.	Incorrect settings can lead to too much or too little pressure applied, resulting in dimensional variations and failed tolerances.
Environmental Factors	Temperature, humidity, and cleanliness of the stamping environment can affect both material and tooling.	Variations in environmental conditions can lead to thermal expansion or contraction of tooling, affecting dimensional stability.
Operator Skill	Operator experience and training are crucial in ensuring accurate machine setup and troubleshooting.	Skilled operators can adjust and correct machine setups quickly, reducing the chance of errors that affect precision.
Quality Control Systems	In-line measurement and inspection tools that verify part dimensions during production.	Real-time monitoring ensures parts are within tolerance, reducing scrap rates and improving overall production efficiency.
Preventive Maintenance	Regular maintenance of presses, dies, and other equipment to ensure they operate at peak performance.	Failure to maintain equipment can lead to mechanical issues, such as misalignment or degradation, that affect part precision.

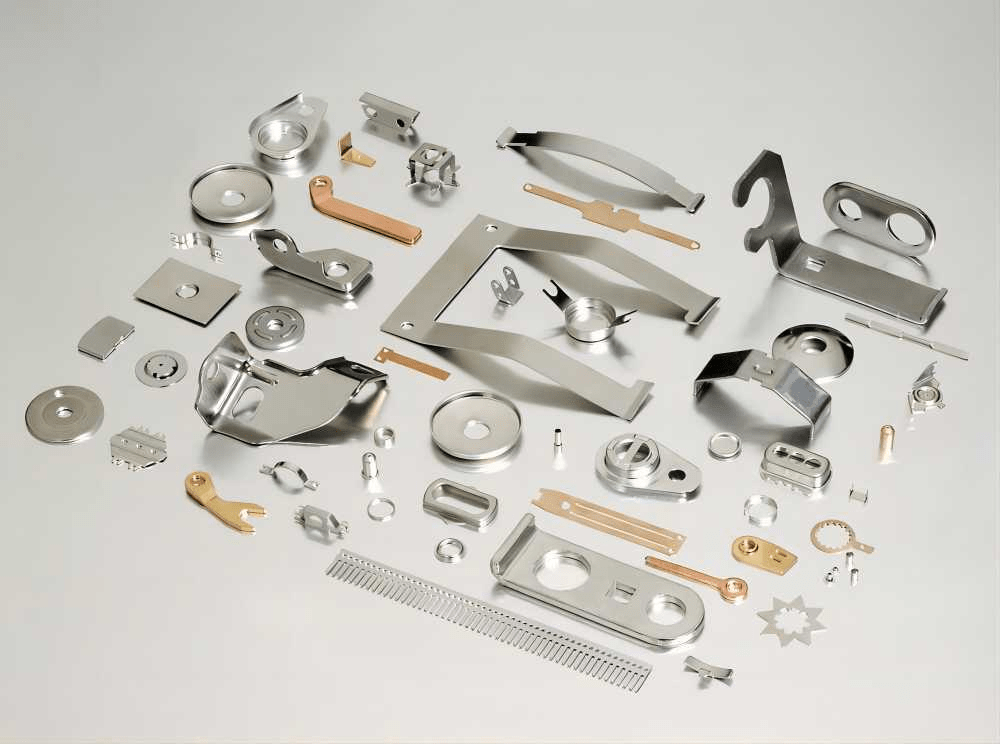

Techniques for Achieving Precision and Tight Tolerances in Metal Stamping

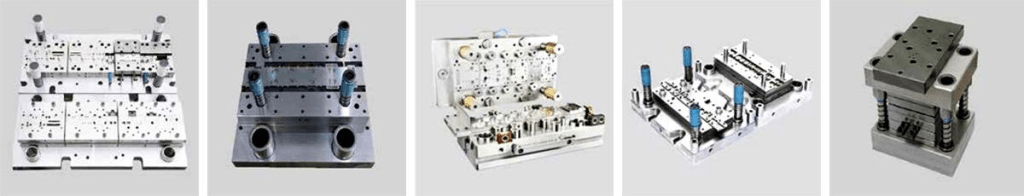

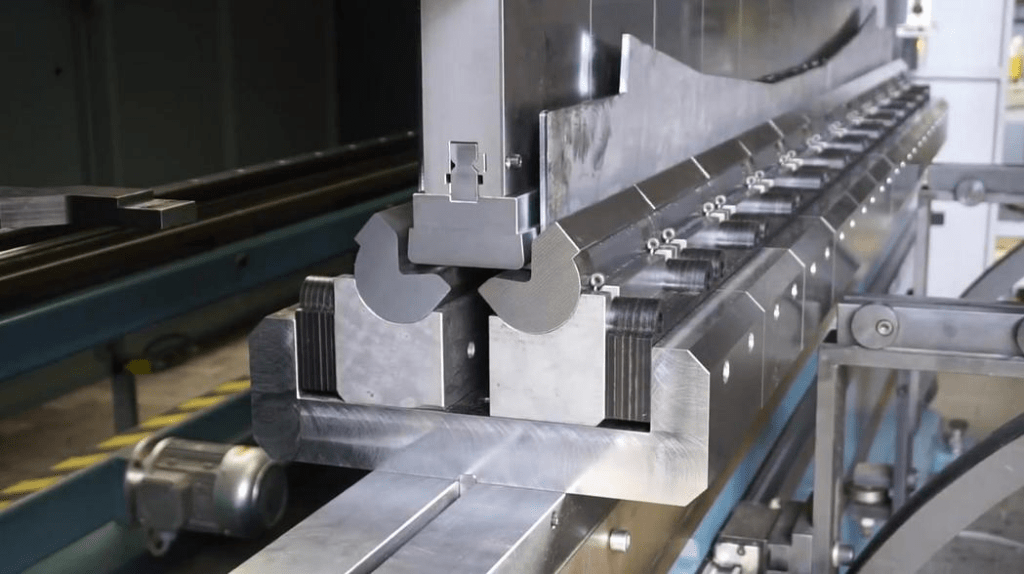

Precision Die Design

The die design is the cornerstone of achieving precision in metal stamping. The die must be crafted with extreme accuracy to ensure that every part produced fits within the required tolerances. This includes considering factors like material flow, springback, and tool wear. Advanced finite element analysis (FEA) can be used during the design phase to simulate material behavior and ensure optimal die geometry. Using high-quality tool steels or carbide materials ensures that the die retains its sharpness and shape over time, providing long-term accuracy.

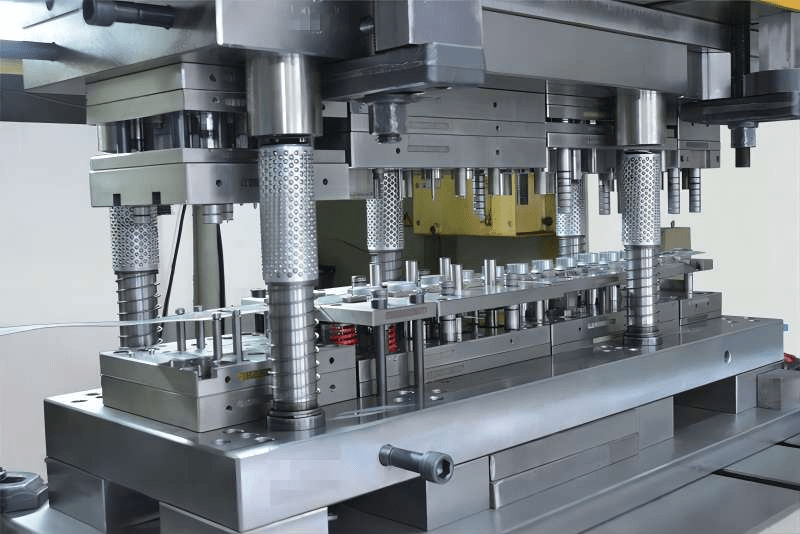

Servo-Driven Presses

Traditional mechanical presses often lack the precision required for tight tolerances. Servo-driven presses offer superior control over parameters such as stroke speed, depth, and pressure. With servo drives, the press can adjust force more precisely during each stroke, leading to consistent results across high volumes of parts. These presses also provide flexibility for adjustments on-the-fly, allowing manufacturers to quickly respond to material variations or changing specifications.

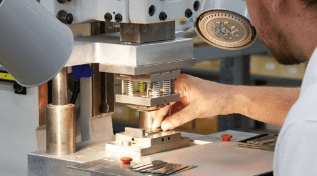

Advanced Measurement Systems

Incorporating real-time in-line measurement systems helps ensure precision during the stamping process. Technologies like laser scanning, vision systems, and 3D sensors can continuously monitor part dimensions and detect any deviations from the required tolerances as parts come off the press. These systems allow for immediate corrective actions, ensuring that defective parts do not proceed down the production line. By detecting issues early, manufacturers can reduce waste and rework, improving efficiency and overall part quality.

Material Quality Control

The properties of the material being stamped play a critical role in achieving tight tolerances. Variations in material thickness, hardness, or grain structure can cause inconsistencies in the stamped part’s dimensions. To address this, manufacturers should inspect incoming materials thoroughly to ensure they meet the specified requirements. Working closely with reliable material suppliers and maintaining strict material quality control procedures helps ensure that every batch of material is consistent and suitable for precision stamping.

Tooling Maintenance and Monitoring

Over time, tooling can wear down, leading to dimensional drift and loss of precision. Regular maintenance and inspection of dies and tooling is essential for maintaining accuracy. Using tooling monitoring systems can help track the condition of the dies and identify when they need maintenance, regrinding, or replacement. Keeping tooling in optimal condition ensures that the parts produced remain consistent and within tight tolerances throughout the production run.

Optimal Press Settings

Each material and part design requires specific press settings to ensure optimal results. Setting parameters like pressure, speed, and stroke depth correctly ensures that the right amount of force is applied during the stamping process. Too much pressure can lead to deformation, while too little may result in incomplete stamping. Manufacturers must also adjust press settings based on material type and thickness, as these factors affect how the material behaves during stamping. Fine-tuning press settings for each part ensures that the process stays within tolerance limits.

Environmental Control

Environmental conditions can significantly influence precision in metal stamping. Factors such as temperature and humidity can affect both the material and tooling, leading to dimensional variations. For example, metal expands and contracts with temperature fluctuations, which can impact the precision of the stamped parts. Temperature-controlled production environments help mitigate these issues, ensuring that materials and tooling maintain their stability, preventing dimensional drift.

Operator Expertise and Training

Even with advanced technology, human expertise is essential to achieving precision in metal stamping. Skilled operators are responsible for setting up machines, adjusting parameters, and monitoring the production process for any signs of deviation. Regular operator training ensures that workers are familiar with best practices, troubleshooting techniques, and the latest technological advancements. Well-trained operators can detect and correct problems early, preventing issues from escalating into larger defects.

Preventive Maintenance Programs

A structured preventive maintenance program is crucial for keeping all machinery and tooling in top condition. Routine inspections and servicing prevent issues like press misalignment, which can affect precision. By conducting regular maintenance on presses, dies, and other equipment, manufacturers can ensure that machinery remains accurate, reducing the likelihood of unplanned downtime or costly repairs that might compromise part tolerances.

Using High-Precision Material Handling

Handling the materials carefully during the production process is crucial for maintaining tight tolerances. Any damage or deformation during material handling can affect part accuracy. Implementing automated material handling systems or specialized fixtures that prevent deformation during loading and unloading can help maintain the integrity of the material and ensure it remains within specification throughout the stamping process.

Challenges and Potential Solutions in Maintaining Precision and Tight Tolerances During Metal Stamping Process

Challenge	Description	Potential Solution
Die Wear Over Time	Continuous use causes dies to lose sharpness and precision, leading to dimensional drift in stamped parts.	Use high-quality, wear-resistant tool steels and implement regular die maintenance, regrinding, and inspection schedules.
Material Variability	Variations in sheet thickness, grain direction, or material strength affect forming behavior and final dimensions.	Establish strict material specifications, perform thorough incoming inspections, and work closely with reliable material suppliers.
Mechanical Drift and Press Instability	Wear and loosening of press components or vibration during operation can lead to inconsistent force application.	Utilize servo-driven presses for better motion control and implement a strict preventive maintenance program.
Thermal Expansion Effects	Changes in ambient or equipment temperatures can cause materials and tooling to expand or contract, altering dimensions.	Maintain controlled environmental conditions and monitor thermal influences, adjusting processes accordingly.
Early-Stage Deviations Hard to Detect	Small deviations at the start of production can accumulate, resulting in large defects by the time they are noticed.	Install real-time in-line monitoring systems using laser measurement or machine vision to catch variations early.
Human Error in Setup and Adjustments	Manual setup errors, misalignments, or incorrect parameter settings can quickly push parts out of tolerance.	Invest in continuous operator training, use automated or guided setup systems, and create standardized setup procedures.

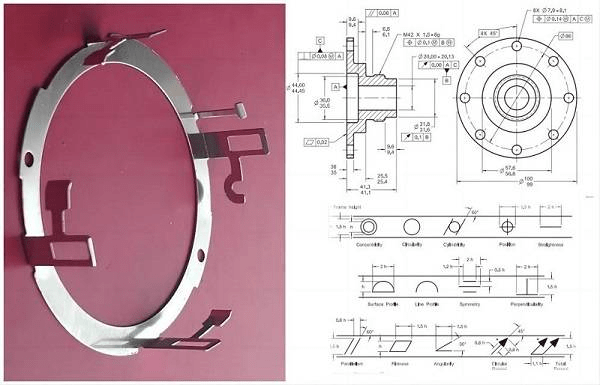

Cumulative Tolerance Stack-Up	Small tolerances from individual components add up, leading to assembly issues and reduced part functionality.	Conduct detailed tolerance stack-up analysis during design and implement dimensional checks at intermediate stages.
Lack of Flexibility for High-Mix, Low-Volume Production	Frequent changes in part designs or materials can increase the risk of errors and make tight tolerance control more difficult.	Implement modular tooling and flexible press systems, and use digital control systems for quick and accurate adjustments.

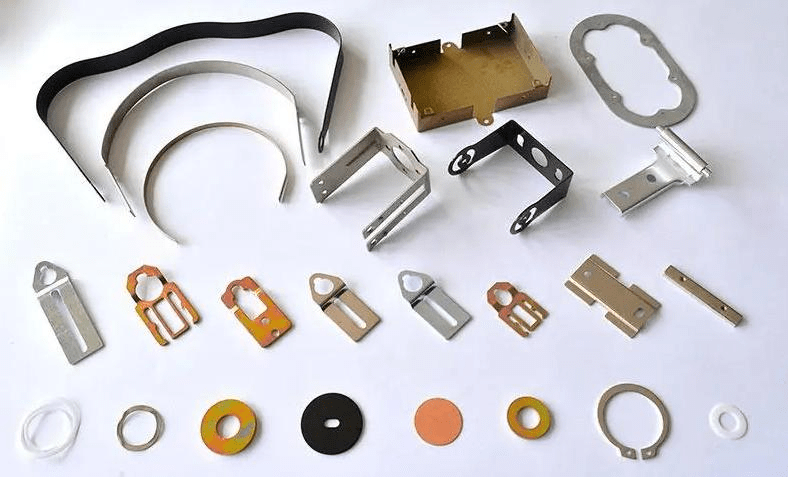

Summary

Precision and tight tolerances in metal stamping define the difference between an average product and a high-standard one. It is a multidimensional effort that begins with the right tooling and equipment, demands strict process discipline, and is sustained by the skill and vigilance of experienced operators. As industries continue to demand higher performance and tighter specifications, mastering precision metal stamping will become a more and more vital competitive advantage.
