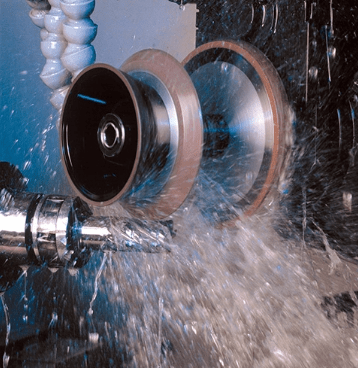

How to Select the Right Grinding Wheel for CNC Grinding Processes?
CNC grinding is an essential manufacturing procedure that requires the use of abrasive wheels in order to remove material from a piece of work. The selection of the appropriate grinding wheel is vital for ensuring maximum performance accuracy, efficiency, and speed.
It doesn’t matter if it’s for cylindrical or surface grinding, or for specialized grinding jobs, selecting the appropriate grinding wheel influences the CNC machining process as well as the quality of the final product. This article will walk you through the most important aspects to take into consideration when choosing and analyzing grinding wheels that are suitable for CNC application of grinding.
Table of Contents

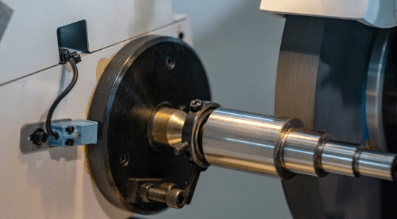

What is a Grinding Wheel
Grinding wheels are a arranged disc made of grains that is held together by adhesive. These grinding wheels are used in CNC grinding processes where materials needs to be removed from workpieces in order to attain particular specifications, shapes, or sizes. In CNC grinding processes, wheels rotate at high speeds while workpieces pass under controlled pressure through them until their surface abrasives wear away in increments from their surfaces, grinding into it until eventually their job is finished.
Grinding wheels come in different compositions and configurations to meet various machining processes and materials. Their sizes, shapes and forms vary according to specific operations or materials requiring grinding operations.
The selection of the right grinding wheel for CNC grinding operations
The proper grinding wheel plays an important role since it influences grinding process economics, quality, and grinding efficiency directly. Misuse of a wrong wheel will lead to poor finish, tool wear, work heat damage, and reduced machine life.
Grinding wheels are to be chosen appropriately based on the work material, type of grinding operation, and desired outcomes. Using, for example, a wheel having the wrong abrasive material or bond type might lead to too much heat production or poor cutting, reducing productivity and quality.

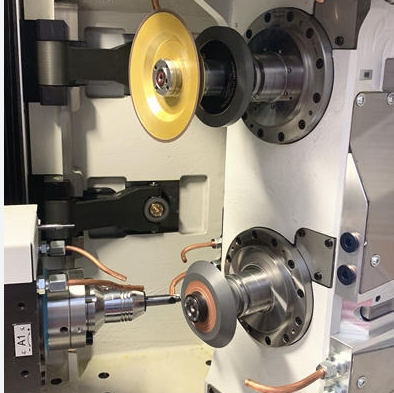

Grinding Wheels for CNC Grinding
Major Types of CNC Grinding Wheels
| Grinding Wheel Type | Description | Common Applications |
| Surface Grinding Wheels | These grinding wheels are produced with a special intent. | Used for making flat surfaces with flawless finishes for machine parts, molds and dies. |
| Cylindrical Grinding Wheels | These grinding wheels are utilized especially for developing an exterior cylindrical surface on cylindrical workpieces. | Can be used efficiently while grinding rollers, shafts or any other cylindrical component. |
| Centerless Grinding Wheels | Used in centerless grinding operations without the use of central spindle on the workpiece | Providing precise grinding of products such as rods, bearings and tubes |
| Diamond Grinding Wheels | Contain diamond abrasives and, therefore, are the ideal grinding wheels to use for grinding hardened materials such as glass, carbide and ceramics. | They are better when grinding hard, brittle materials such as carbide ceramics and nonferrous metals – perfect for hardened grinding applications such as carbide. |
| CBN (Cubic Boron Nitride) Grinding Wheels | CBN grinding wheels should be used for precise machining of hardened steel and other hard substances. | Ideal for aerospace or materials that require grinding precisely like hardened paint, exact grinding |

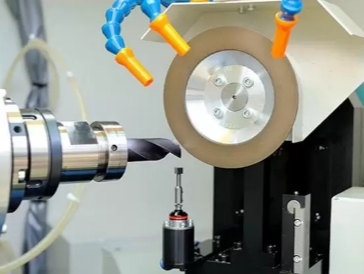

Key Factors in Selecting the Right Grinding Wheel for CNC Grinding
Several are the things to be taken into consideration when choosing the right grinding wheel for CNC grinding. These are the workpiece material, the grinding operation type, abrasiveness of the wheel, wheel structure, and bond type. All these contribute to the efficiency and precision of the grinding process.
1. Material of the Workpiece
One of the key aspects of grinding material is taking into account its hardness, toughness and properties – these will all determine which abrasives you require for your wheel.
- CBN wheels are often preferred for cutting hard metals such as tool steel and hardened steel due to their superior cutting ability and thermal stability, while silicon carbide wheels may offer superior performance due to reduced loading potential.
- Diamond wheels provide the necessary hardness for effective material removal from ceramics and carbides, providing effective material removal.
The right abrasive for the material keeps the wheel in condition to achieve the grinding operation with the intended material removal rate without wear or damage.
2. Type of Grinding Operation
Different types of CNC grinding operations require different types of wheels.
- Surface Grinding: Typically employs straight wheels with fine grain for high finish.
- Cylindrical Grinding: Requires a wheel that can easily grind round objects, which normally is with more porosity in structure.
- Centerless Grinding: A wheel having the ability to grind both outer and inner diameters, normally more porosity.
3. Abrasive Material
The abrasive itself is probably the most important thing about how well a grinding wheel will run for a specific application. Abrasives are what do the actual cutting in workpieces, and are therefore key components of CNC grinding wheels. Common examples of such abrasives are:
- Aluminum Oxide: Extremely adaptable, Aluminum Oxide can be used for grinding steel, forgings and castings with its hardness and general cutting ability making it the perfect solution for most general grinding applications.
- Silicon Carbide Abrasives: Silicon carbide abrasives are utilized heavily to grind non-ferrous metals, ceramics and plastics with its hard but fine grinding – perfect for fine grinding or polishing processes.
- Cubic Boron Nitride (CBN): CBN is an extremely hard abrasive. It is superb for grinding high-hardness materials such as hardened steel. Due to superior wear resistance and thermal tolerance, CBN has superior choices in this use. Diamond: Diamond wheels are being utilized on ultrahard materials such as ceramics and carbide for polishing applications.

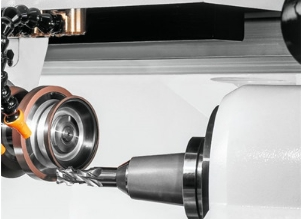

- Diamond: Diamond wheels can be found used on ultrahard materials like ceramics and carbides for polishing purposes. They provide extreme durability and accuracy.
4. Bond Type
The type of bond maintains the abrasive grains and influences the wheel’s cutting and life. The most widely utilized types of bonds include:
- Vitrified Bond: Vitrified bonds are tough, heat-resistant materials with excellent control of wheel performance that make them suitable for grinding hard materials like ceramic and granite precisely. Vitrified bonds can often be seen being utilized when dealing with such applications.
- Resinoid Bond: Resinoid bonds provide shock resistance and vibratory grinding applications under vibration or impact conditions, making it the perfect solution.
- Metal Bond Wheels: When working with stiffer and more wear-resistant diamond or CBN abrasives under high grinding pressures, metal-bond wheels may be necessary.
Bond types influence how grinding wheels perform during their operation, including their ability to tolerate heat and the rate at which abrasive grains wear away during grinding.
5. Wheel Structure
Wheel structure refers to the distance between the abrasive grains. This is related to the amount of coolant that can flow through the wheel and the rate at which the wheel wears. An open structure (less grain density) is more conducive to higher coolant flow and is generally beneficial in rough grinding or high material removal rates. A more massive structure, on the other hand, is used for fine grinding or finishing operations where accuracy should be great.
6. Wheel Size and Shape
The grind wheel size and shape are relative to the specific application. Wheel thickness, width, and wheel diameter are selected based on the workpiece size and type of grinding operation. The wheel shape, i.e., cup wheel, straight wheel, or other, is based on the type of grinding process.
Summary
Proper selection of grinding wheels for CNC grinding is critical to accuracy, productivity and the long life of both grinding tool and workpiece. CNC grinding can produce high-quality output for various applications from surface finishing to precision machining of hard materials with the appropriate material, bond, structure and form of abrasives employed. With an understanding of your specific grinding application – high speed machining or material removal to fine finishing or material removal – manufacturers can customize their CNC grinding operations for maximum performance.
