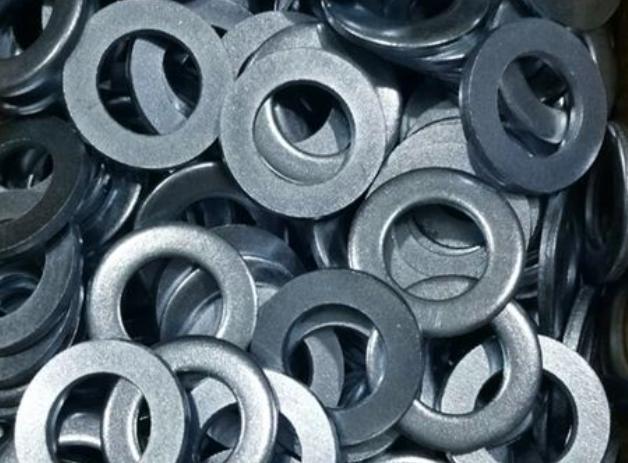

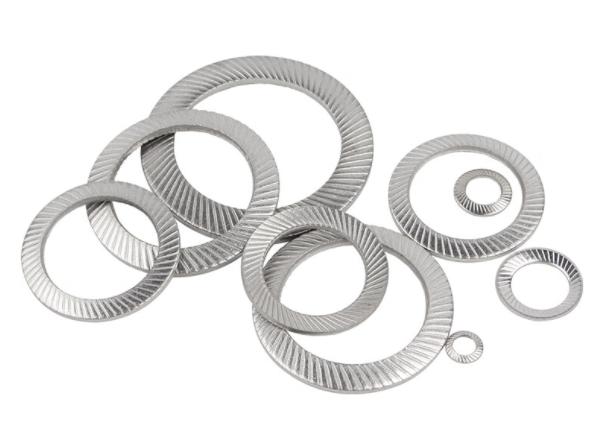

Lock Washer vs Flat Washer

In bolted connection systems, washers can be small in size, yet they play a vital function. Don’t let their slender appearance fool you. They can dramatically increase the strength of the connection, and also increase the lifespan of the device.

The two most popular washer types are lock washers and flat washers. Although often used in conjunction they each have a distinct function. A lot of people struggle to distinguish between the correct kind.

Today, we’ll walk you through the entire process of flat washer and lock washer and assist you to select the best washer to suit your requirements.

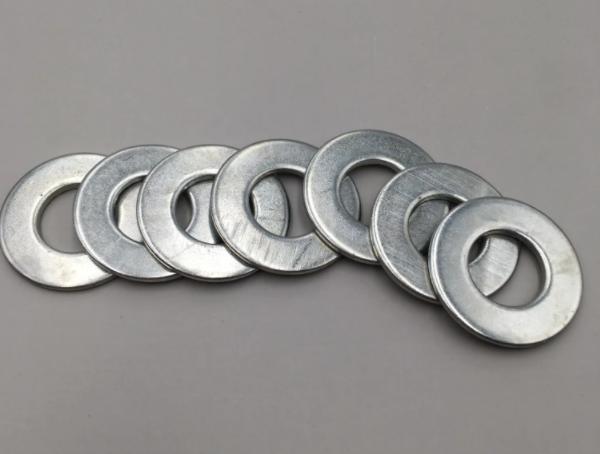

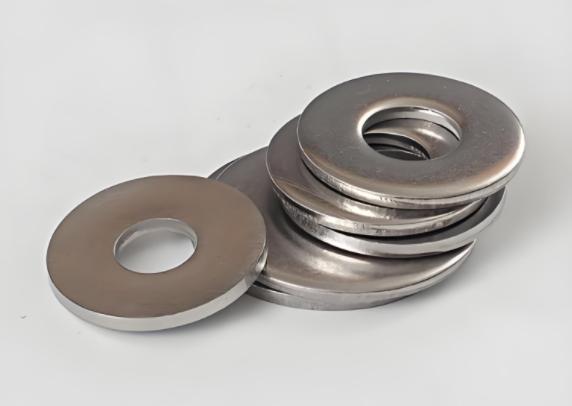

Part 1. What is a Flat Washer?

A flat washer is an elongated, circular element, made mostly of metal or non-metallic substances such as carbon steel stainless steel and aluminum, copper or plastic. It is positioned between the bolt’s head or the surface of the piece. While it may appear simple the flat washer serves an important role in fixing systems.

Main Functions of a Flat Washer:

Distributes the Bolt Load

When a bolt or nut gets tightened, it exerts an upward force that could concentrate on a specific area that is the working piece. Without washers, this concentrated force can cause damage to the material and cause cracks, deformation or even crushing.

A flat washer can spread the load over a greater space, thus reducing pressure on the surface and effectively securing the connected components.

Protects the Surface

When tightening the screws, the edges of bolt head or nut may scratch or penetrate the surface of the workpiece, especially when working with soft substances like wood or plastic. The washer serves as a barrier to protect the workpiece to prevent scratches on the surface and maintaining the appearance and quality of the piece.

Provides a Stable Bearing Surface

If you are fixing the soft material (e.g. plastic or wood) or surfaces that are uneven bolts and nuts by themselves are not always able to an effective tightening. Flat washers provide an even, solid platform, which improves connection stability and stops the possibility of failure or loosening due to imperfections in the surface.

Typical Applications of Flat Washers:

Flat washers are often employed in areas that require static loads, low-vibration, as well as surface security are crucial. Common applications are:

Furniture Assembly: Eliminates bolts ruining wooden panels, assuring durability for the structure over time.
Appliances for the Home: Protects plastic or aluminum casings from cracking and wear around the points of attachment.
Equipment and machinery that is light: Such as printers or copiers, where secure fixing is vital, yet loads are light.
Interior decoration and construction: Prevents screws or bolts from leaving marks of pressure on surfaces that have been finished.

Flat washers might seem like simple parts however they play an essential part in protecting workpieces increasing the efficiency of fastening and prolonging the life of equipment. Choosing and installing the best washer is an essential step towards a secure bolted connection.

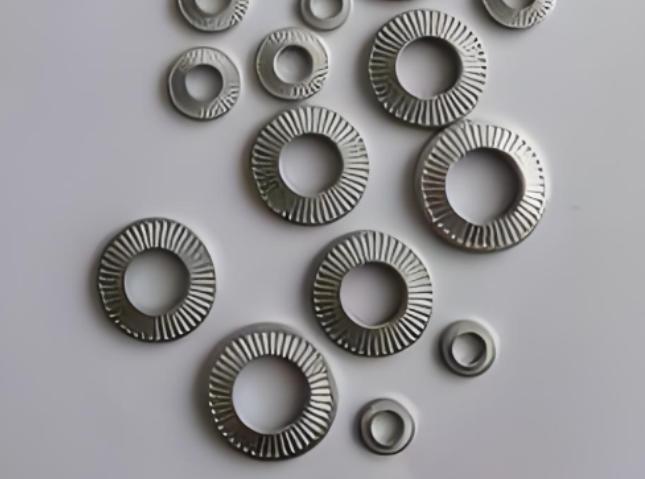

Part 2. What is a Lock Washer?

Lock washers specifically made washers that are resistant to loosening during the force of vibration or torque. Contrary to flat washers that tend to distribute load and shield the surfaces of their surroundings, locking washers possess distinct shapes, such as split toothed, helical, or toothed. This creates friction or tension in the fastener.

This extra resistance prevents nuts and bolts from slipping out with time, which makes lock washers crucial in dynamic or high-vibration settings.

Main Functions of a Lock Washer:

Stops Loosening due to Vibration or movement

One of the main uses of locks washers is to prevent the fastener from becoming loose because of vibration or dynamic loads. The washer does this by cutting into the mating surfaces or by maintaining tension between the bolt’s workpiece and its nut, thereby “locking” the nut or bolt to the workpiece.

Maintains Clamping Force

When machinery or equipment is operating in a thermal or vibration-driven manner, thermal expansion or movement may lower clamping force, causing joint failure. Lock washers assist in maintaining this clamping force, compensating for small changes in the machine and also preserving tension within the joint bolted.

Improves Safety and Reliability

For critical tasks such as aerospace, automotive or industrial machinery loose fasteners can cause a serious mechanical failure. A lock washer can provide an additional layer of security and reduces the chance of a loose fastener and enhancing overall safety.

Common Types of Lock Washers:

The Split Lock Washer (Helical Spring Washer): The most popular type, which is shaped as the shape of a slightly bent ring. It is a spring-loaded device that is able to resist turning.

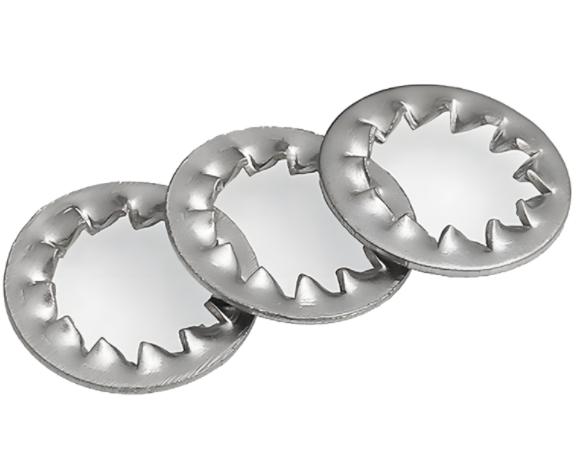

Toothed Lock Washer: Features teeth on either the external or internal side which penetrate into the nut and its surface for additional grip. It is ideal for applications requiring low torque or electricity.
Wedge-Locking Washer: The two-piece washer assembly that makes use of the use of friction and cams to secure bolts during extreme vibration.

Typical Applications of Lock Washers:

Lock washers are perfect for high-motion, high-vibration environments in which fastener security is essential:

Transportation and automotive: Used in engines as well as brakes and suspension systems to make sure that bolts are in place.
Heavy equipment and machinery: Essential for joints that are subject to continuous movement and shock load.
Electronics and electrical systems: Toothed lock washers are commonly employed to guarantee stable electrical connections as well as grounding.
Steel structures and construction: Adds fastening security in cranes, bridges, or steel frameworks exposed dynamic stress.

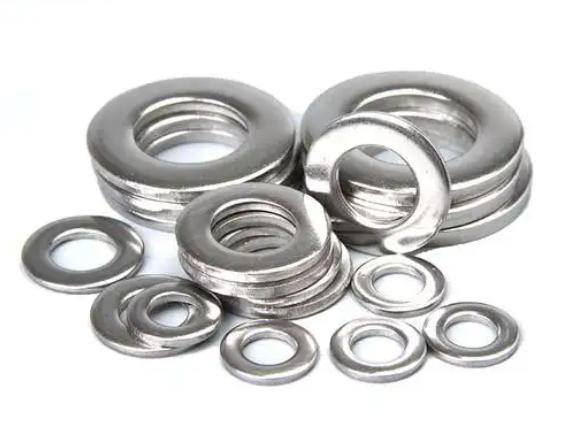

Part 3. Lock Washer vs Flat Washer: Main Differences

Lock washers play a vital part in preventing loosening of the fastener and ensure that mechanical systems are safe, even in the most difficult conditions. Choosing the right lock washer can significantly increase the security and reliability of the bolted connections you have.

Flat Washer: Detailed Overview

Primary Function:

Flat washers are typically used to distribute the burden of a threaded fastener, such as bolts or nuts across an area larger. This assists in protecting the surface from wear and also prevents deformation of the material due to pressure that is concentrated.

Anti-Loosening Feature:

Flat washers are not equipped with the ability to prevent loosening. Their primary function is to spread load and protect surfaces, but not stop fasteners from breaking under tension or vibration.

Common Materials:

Flat washers are usually constructed from:

Carbon Steel: Provides durability and strength at an affordable price.
Stainless Steel: Is impervious to corrosion, it is ideal for damp, outdoor, or areas that are corrosive.
Brass or Copper: Typically employed in situations in which electrical conductivity or more attractive finish is needed.

Typical Applications:

Flat washers are often used for static connections or in applications which require protection of the surface. Typical scenarios include:

Furniture assembly
Appliance assembly
Equipment or light machinery
Construction applications in which materials such as plastic or wood need protection from pressure from bolts.

Cost:

Flat washers are usually inexpensive components because of their simple, simple style and the material used.

Appearance:

Flat washers are smooth, flat circular rings that have holes in the center that can be inserted around an screw or bolt.

Lock Washer: Detailed Overview

Primary Function:

Lock washers are made to ensure that fasteners are not becoming loose due to vibrations or movement. They are a mechanism to prevent loosening to the fastener, to ensure that bolts, nuts or screws stay in place for a long period of time.

Anti-Loosening Feature:

Yes locks washers are designed to prevent loosening. They accomplish this by sustaining tension or generating friction that impedes the movement of the fastener to ensure the joint remains secure in high-vibration or dynamic conditions.

Common Materials:

Lock washers are composed of:

Spring Steel: It provides elasticity as well as tension to provide superior anti-loosening performance.
Carbon Steel: Durable and strong However, it may require a coating to resist corrosion.
Stainless Steel: Ideal for extreme environments in which resistance to corrosion is required.

Typical Applications:

Lock washers are typically employed for dynamic connections or in areas that have a lot of vibration, in which loosening of the fastener could cause failure. Examples include:

Machinery and automotive components (e.g. suspensions, engines)
Electrical connections (especially grounding washers that have teeth)
Industrial equipment that is exposed to shock loads or shock loads
Heavy machinery and construction require strong, secure connections

Cost:

Lock washers are generally priced slightly higher than flat washers due their more intricate design and the additional functions they offer.

Appearance:

Lock washers are usually made of springs or are toothed for example:

Split-ring (helical spring): A twisted cut ring which exerts spring tension.
Toothed washers: With the teeth that are either internal or external to grip mating surfaces.
Wedge-lock Washers: Two-part washers which interlock to stop the washers from slipping.

Summary of Key Differences Between Flat Washers vs Lock Washers

Item	Flat Washer	Lock Washer
Primary Function	Distribute load, protect surface	Stop the bolt or nut from getting loose
Anti-Loosening Feature	No	Yes
Common Materials	Steel, Carbon, Stainless, Copper	Carbon steel, spring steel stainless steel
Typical Applications	Surface protection, static connections	Vibration, dynamic connections
Cost	Lower	A bit higher
Appearance	Ring with flat circular design.	A toothed or elastic structure

Part 4. How to Choose Lock vs Flat Washer?

The choice whether to use a lock washer or flat washer is dependent on a variety of factors that include how you plan to utilize the task as well as the environmental conditions material compatibility, as well as specifications for performance. This article will help you decide which type of washer is best suited to your requirements:

1. Consider the Function of the Joint

Utilize a Flat Washer If:

The purpose is to distribute the load evenly, and also protect your material’s surface.

You’re fixing delicate materials such as plastic, wood or aluminum.

This connection remains static, with very little or no vibration.

Utilize a Lock Washer If:

It is important to avoid the any loosening of nuts or bolts in time.

The joint will be exposed to dynamic loads, vibrations or motion.

You’re assembling the components of the automotive industry, machinery or industrial equipment in which security and reliability are essential.

2. Assess the Vibration and Movement

In areas with high vibration (e.g. engines trains, heavy machinery) Lock washers are recommended due to their ability to grip the surface and withstand loosening.

For stationary or low-stress applications like cabinets or furniture the flat washer will usually suffice.

3. Evaluate the Material and Surface Conditions

Surfaces that are painted or soft are benefited by flat washers that prevent this fastener from tearing in or damaging the surface.
If the joint needs to be held securely on solid metals A lock washer may add the extra friction to keep the fastener securely in the right place.

4. Consider the Cost and Simplicity

Flat washers are cheaper and are easier to set up. They are ideal for large-scale, expensive applications.
Lock washers can be a little more costly, but they provide additional security in situations where it is necessary. The additional expense is justifiable in high-risk and security-sensitive settings.

5. Combine When Necessary

In certain situations it is possible to combine both:

Put a flat washer on the surface of the material in order to protect it.
After that, you can stack an lock washer over the flat washer, and under the bolt head or nut to ensure that the bolt head is not loosening.

This combination is particularly helpful when fixing bolts onto smooth or painted surfaces, in situations where stability and protection are required.

Wrap Up

While washers might appear to be tiny components, selecting the right type of washer–flat washer or lock washer has a significant influence on the durability and security of your fastened joints. Flat washers are perfect to protect surfaces and distribute pressure evenly, whereas lock washers are best suited for applications which require resistance to loosening and vibration. Understanding the different functions and advantages of each is vital to making sure that engineering quality is maintained.
