How to Achieve Ultra-tight Tolerances in Stamping Parts?
For the manufacturing industries, achieving high levels of precision and consistency is crucial, especially in the automobile, aerospace, electronics, and medical industries. This is because any misalignment of manufacturers’ specifications can result in jeopardizing performance and safety. One of the most efficient ways to improve accuracy is advanced stamping processes that target possible ultra-tight tolerances. Creating such precision involves the right tooling, advanced process control, high-quality materials, and cutting-edge technology.
Table of Contents

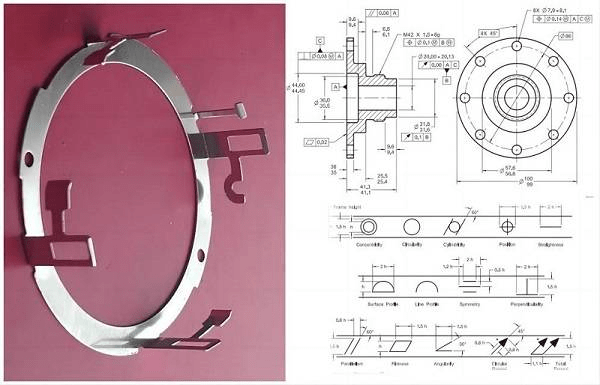

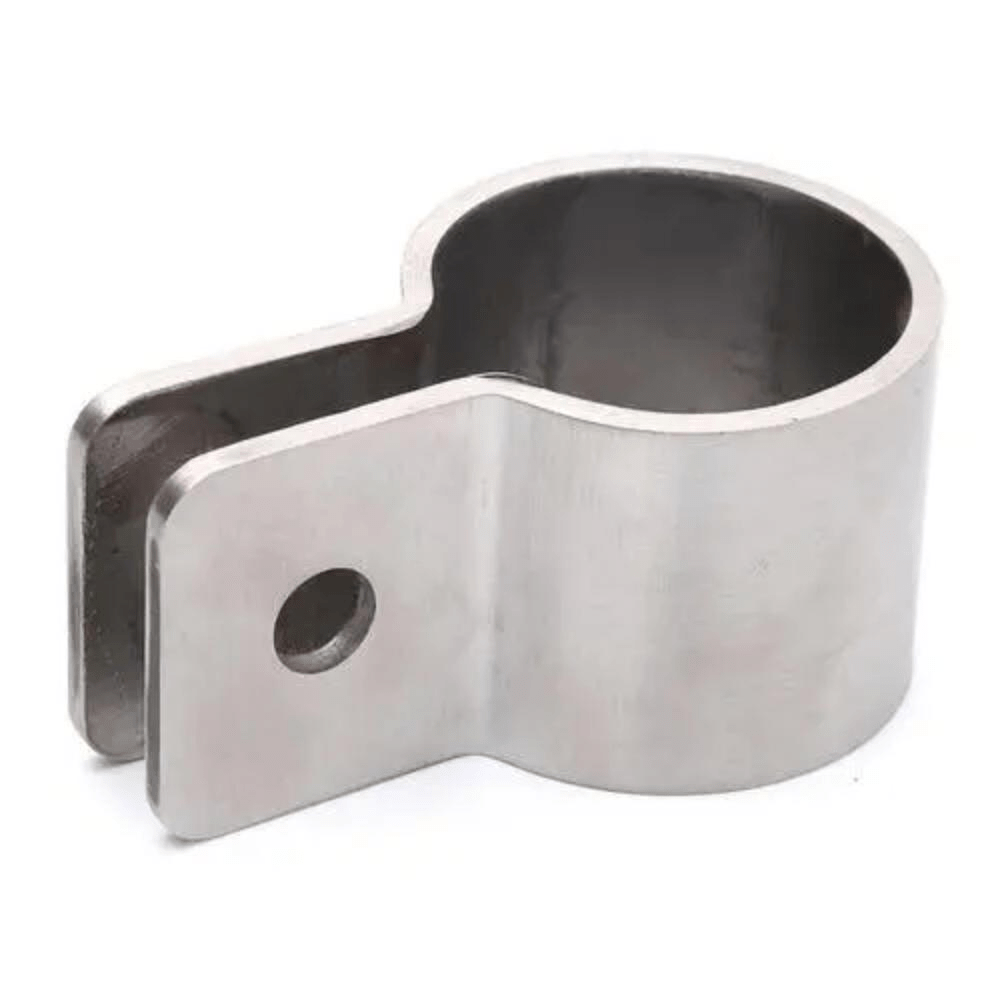

Understanding Ultra-tight Tolerances in Stamping Parts
Every manufactured part comes with specifications, and tolerance describes how much the dimensions can vary from the specified measurement. Tolerances in stamping processes are sometimes held just to the size of a sheet of paper. On the other hand, ultra-tight tolerances fascinate engineers, keeping the variation close to invisible, ranging from ±0.01 mm to tighter, depending on the case.
Some applications require extreme tolerances. This is the case when the structural integrity is maintained under high demanding situational or extreme environment conditions. Think, for instance, of components of automotive fuel injectors or microelectronic connectors. These applications require dimensions to be controlled AT a high degree due to the extreme functionality demands.
Why Need Ultra-tight Tolerances in Stamping Parts
Quality of assembly and functionality in complex applications drives the need for ultra-tight tolerances in stamping parts due to the increase complexity of applications.
Ensuring Product Reliability and Performance

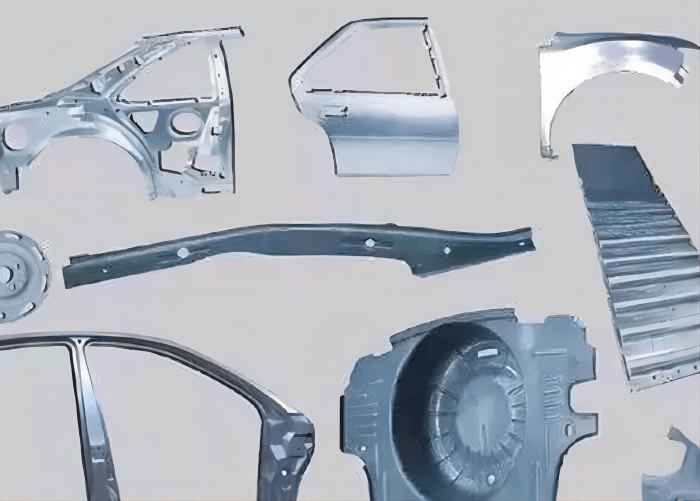

When it comes to stamping parts with ultra-tight tolerances it is for ensuring the proper fitting and functioning of parts while guaranteeing structural integrity under different and changing conditions. Within the automotive industry parts fuel systems are stamped for sensor housings and transmissions with tightly toleranced to assure functional reliability. If not, even the smallest of dimensional tolerances can lead to misalignment, excessive wear and even failure suspected to the performance of the vehicle and the safety of the passenger.
Meeting Industry Standards and Regulations
The standards and regulatory requirements regarding the tolerance on stamped parts in the aerospace, medical devices, and electronics industries, contain stamped component tolerances in their design. Ultra-tight tolerances on stamped parts designed for regulatory compliance convey safety, reliability and function. For example, after a surgical procedure, the safety and health of the patient can also depend on an implantable device or surgical instrument that has ultra-tight tolerances as specified in the regulations for compliance.
Enabling Efficient Assembly and Reduced Waste
Seamless assembly operations can be achieved with ultra-tight tolerances in stamping parts. Parts that fit precisely to spec eliminate costly adjustments, rework, and scrapping, which in return enhances efficiency and lowers downstream costs. Minor, nearly unnoticeable, discrepancies in high-volume assemblies can accumulate and cause considerable unplanned downtimes. Precision stamping greatly mitigated these risks and thus, allowed greater and smoother production workflows.

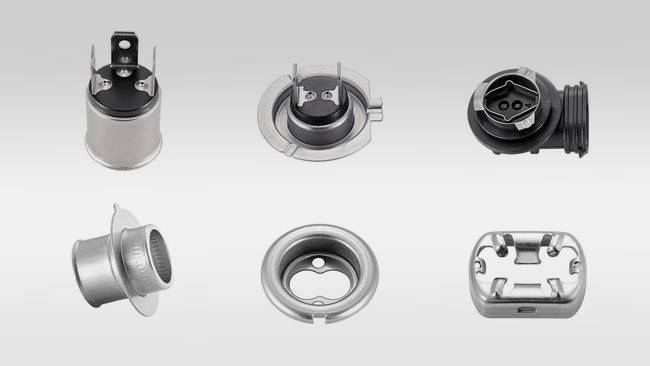

Supporting Advanced Applications and Miniaturization
Technology, particularly electronics, is changing rapidly and builds more complex and smaller products that incorporate more advanced features. For example, miniaturized connectors and components in electronics require ultra-tight tolerances, as even minor dimensional variation can hinder functionality, adversely impacting connector and component circuitry. This challenge, however, can be met with ultra-tight tolerances calibrating advanced manufacturing processes to produce high-precision parts for advanced applications.
Enhancing Competitive Advantage
Manufacturers enjoy a significant market advantage when they produce stamped parts with ultra-tight tolerances. Clients look to these suppliers when precision and reliability are required. Delivering to exacting standards helps to build trust, strengthen the brand’s market position, and achieve trustworthy long-term partnerships in high-precision industries.
Key Factors Influencing Tolerance Accuracy of Stamping Parts
Understanding these factors affecting tolerance of stamping parts help in process optimization, defect minimization, and consistent quality maintenance across high-volume production.
1. Material Properties and Consistency
The kind of material being stamped affects how accurately the tolerances can be calculated. Differences in material thickness, hardness, and surface finish can lead to deviations when forming scope. When detecting, predictable unformed stamping forces because of uniform mechanical properties and minimal internal stress reduces the risk of distortion and springback. To maintain distortion springback high standards must be used which increases the consistency of metallic surface characteristics in thickness.

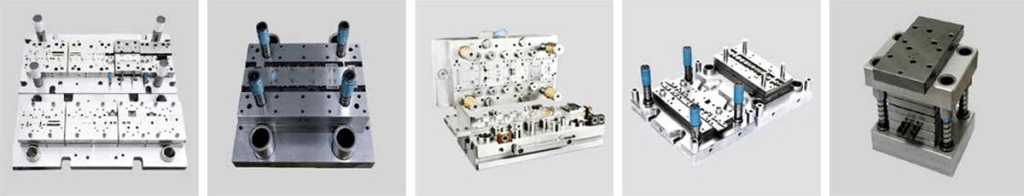

2. Tooling Design and Precision
The stamping die is at the center of the part accuracy. Precision designed tooling guarantees that each punch is a die and is capable of producing the intended geometry without the introduction of an error. Die alignment, wear resistance, and the method of fabrication influence the control of the die’s tolerances. New die precision manufacture improvement methods provide the conditions of uniform dimension achievement even in large production runs which consist of wire EDM, CNC grinding, surface hardening, and advanced manufacturing methods.
3. Press Machine Capabilities
To ensure precise tolerances, the type of press machine used is essential. Contemporary servo-driven press machines enhance operators’ control over customization of stroke length, speed, and force, accommodating material variation. Operational consistency ensures even distribution of force and mitigates the risk of wear and tear, which introduces inaccuracies in the part dimensions over time. Consequently, the selection of a press machine for high precision stamping should be based on the available machine capacity as well as repeatability and stability within the stamping process.
4. Lubrication and Friction Control
Tooling and material friction impacts the material flow and can lead to dimensional inaccuracies. Well-placed lubrication will lower friction, tool wear, and assist in regulating the flow of material to the die. Lubrication also serves the purpose of prevention galling and scoring which introduces inaccuracies. The type of lubricant, how it is applied, and the scheduled maintenance all play a large part in achieving repeatability in stamping.
5. Process Monitoring and Environmental Factors

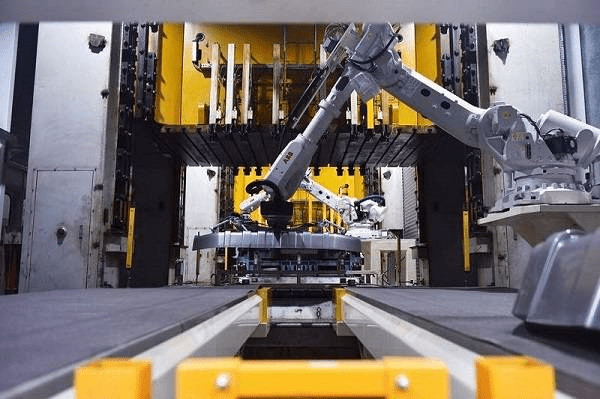

With the aid of real-time control systems, automated stamping processes can identify out-of-tolerance parts in production and adjust the system accordingly. Process flow can also be adjusted to account for external parameters like temperature and moisture that affect material flow and stability of the final product. Control of these parameters will reduce the risk of expansion, contraction, or warping of the parts that can lower the quality of the parts.
6. Material Handling and Part Orientation
How the blank is positioned and how the material is fed into the press affects tolerance accuracy. Neglecting the alignment of the blank or the positioning of the material may cause some uneven stamping, distortion, or errors in dimensions. Well-planned material handling systems and properly oriented blanks tend to improve repeatability, maintaining the uniformity of stamped parts.
Advanced Techniques for Achieving Ultra-tight Tolerances in Stamping Parts
The integration of advanced techniques whereby material flow, tool accuracy, and process variables are managed for consistency and quality in stamping parts will assist in achieving ultra-tight tolerances.
1. Fine Blanking
Fine blanking is a distinct stamping process meant for parts that require smooth edges, high dimensional accuracy, and minimal burrs. In fine blanking, unlike conventional stamping, a triple-action press and counter-pressure stamping are used to control flow of material, thus reducing deformation and improving the consistency of tolerances. Fine blanking is important in precision gear manufacturing, connectors, and electronic components, where a surface finish and surface fit are critical.

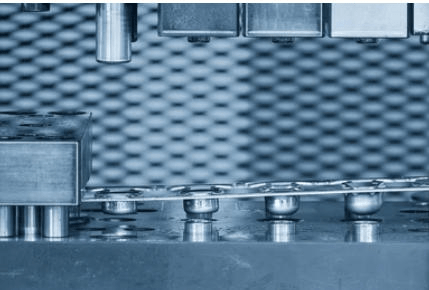

2. Progressive Stamping for Consistent Multi-step Operations
Progressive stamping entails executing several steps within a single die while the material moves through different stations. This approach minimizes the handling of parts and lessens the chances of misalignment and distortion between different operations. With attention to the order and accuracy of each stage, manufacturers can attain finer tolerances and enhanced repeatability. This is key for intricate parts that require multiple cuts, bends, or embossments, as the repeatability is especially improved for complex parts.
3. In-die Measurement and Real-time Feedback
In-die measurement systems enable manufacturers to determine the changing part dimensions while the stamping is still in process. With sensors integrated into the die, manufacturers feel changes as they happen and can immediately change the press, tools, or material feed. This dynamic process allows ultra-tight tolerances to be monitored throughout the manufacturing process, lowering the amount of scrap and rework generated, and remaining within the quality plan.
4. Digital Twin and Simulation Technologies
Using digital twin technologies and high-end process simulations, manufacturers can produce a virtual model of the stamping process. This enables engineers to anticipate potential problems, including springback, material warpage, and variations in dimensions, prior to production. Manufacturers can make the required tolerances with more assurance and effectiveness by optimizing die design virtually, selecting press parameters, and selecting materials.

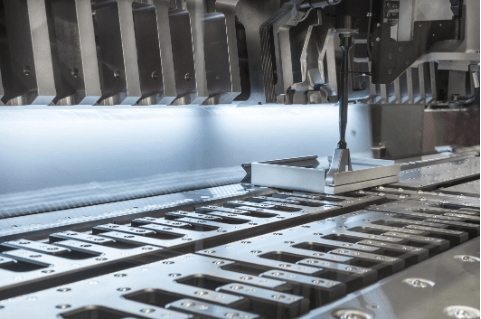

5. Controlled Environment and Precision Press Technology
In metal stamping, environmental factors such as heat, humidity, and vibration may affect how materials behave and how dimensions change. Controlled environmental manufacturing decorrelates the factors and ensures predictable defended controllability results. Further, the precision, servo-driven presses have programmable stroke profiles, stroke distance is adjusted and controlled evenly, and there is consistent motion, making the needed adjustments to the materials and tolerances sett en to ultra-tight tolerances.
6. Lubrication Optimization and Tool Wear Management
Lack of proper lubrication will cause friction, wear, and generation of heat. Any of these may cause part dimensions to change. Combined, optimized lubrication, constant monitoring, and maintenance of the die and punch surfaces will help ensure consistent flow of material and retention of its target dimension. Using steel or carbide as tools will prolong the production cycles while preserving the precision.

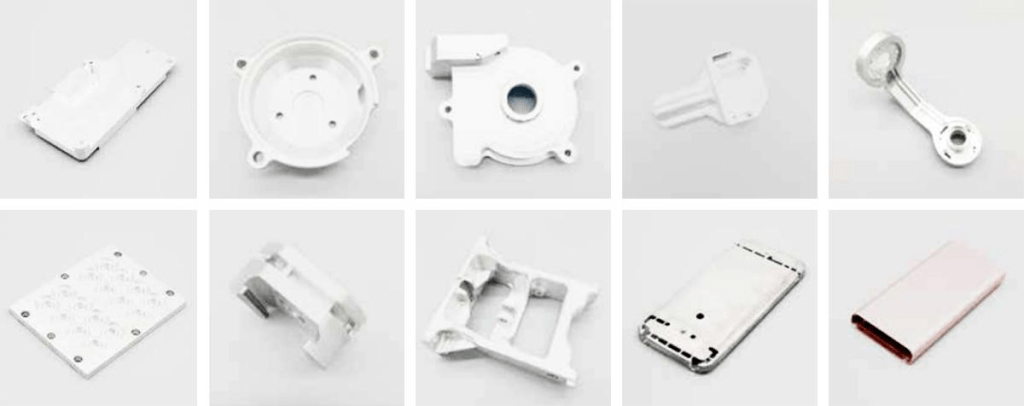

Industry Applications Requiring Ultra-tight Tolerances in Stamping Parts
| Industry | Examples of Stamped Parts | Importance of Ultra-tight Tolerances |
| Automotive | Fuel injectors, sensor housings, transmission parts | Ensures proper fit, reliable performance, and safety; prevents misalignment and wear |
| Aerospace | Flight-critical brackets, connectors, structural components | Maintains structural integrity, reliability, and compliance with stringent safety standards |
| Electronics | Micro-connectors, contact terminals, miniature housings | Guarantees electrical conductivity, precise fit, and reliable performance in compact assemblies |
| Medical Devices | Surgical instruments, implantable components | Ensures patient safety, regulatory compliance, and precise functionality |
| Industrial Machinery | Precision gears, valves, actuator components | Provides consistent operation, reduces downtime, and maintains high-performance standards |
| Consumer Electronics | Battery contacts, micro-switch components | Supports miniaturization and consistent operation in tightly packed assemblies |
Final Thoughts
Ultra-tight tolerances promote stamping parts as a strategic competitive advantage. The most advanced manufacturers have incorporated precision tooling, advanced presses, and digitalized process control to comply with the rigorous demands of various industries. The consistent production of customized metal stamped parts with ultra-tight tolerances not only improves product reliability and performance but also positions these manufacturers as trusted partners.
