What Are The Common Applications Of Neodymium Magnet?

Did you know that neodymium magnets are the most widely used rare earth magnets in the world? It is a permanent magnet made of an alloy of neodymium, iron and boron. In what follows, we will show you some common applications of neodymium magnets.

Neodymium Magnet Speaker

Neodymium Magnet Speaker

In magnet speaker applications, the neodymium magnet is used to create a magnetic field that interacts with the voice coil, which is attached to a diaphragm that produces sound waves. The strong magnetic field generated by the neodymium magnet allows for greater efficiency in converting electrical signals into sound waves, resulting in better sound quality and increased power handling.

Neodymium magnets are also much smaller and lighter than traditional magnets used in speakers, allowing for more compact and lightweight designs. This is particularly important in portable electronic devices such as smartphones, tablets, and laptops, where size and weight are critical factors.

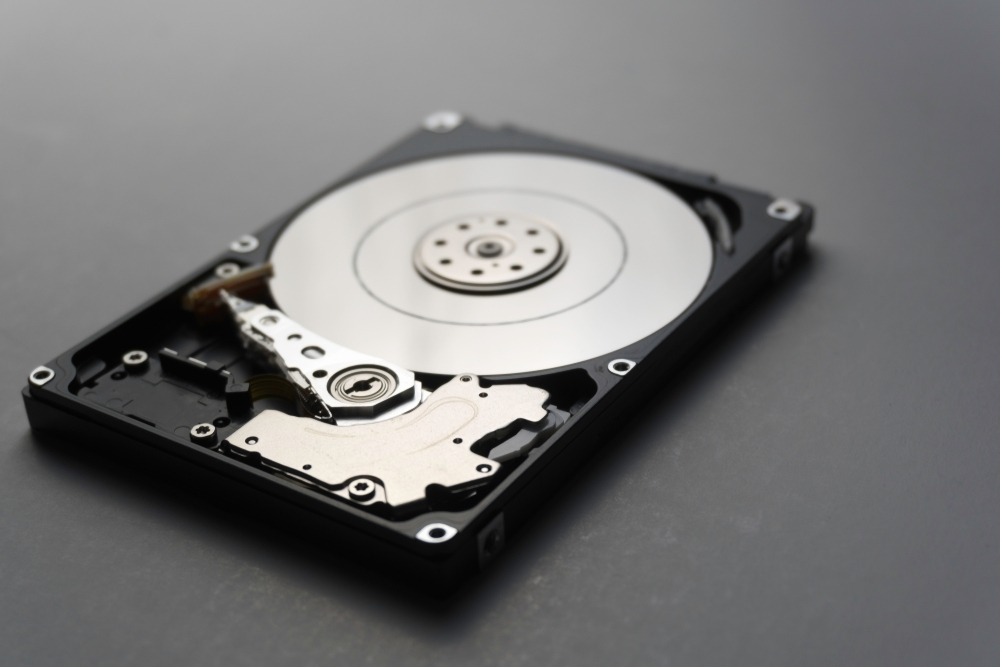

Neodymium Magnet Hard Drive

Neodymium magnets are used in hard disk drives (HDDs) to control the positioning of the read/write head. They are used in combination with a voice coil motor (VCM) to move the head across the disk surface to access data.

In a hard drive, the neodymium magnet is mounted on the end of the VCM actuator arm opposite the head. The VCM assembly consists of a magnet, a coil of wire, and a yoke. When an electrical current is applied to the coil, it creates a magnetic field that interacts with the magnetic field of the neodymium magnet. This interaction causes the actuator arm to move and position the head over the desired track on the disk.

Neodymium magnets are preferred for use in HDDs because of their high magnetic strength and stability over time. They allow for faster and more precise positioning of the head, leading to improved read/write performance and higher storage densities. Additionally, neodymium magnets are small and lightweight, which is important for the compact design of modern hard drives.

Overall, neodymium magnets play a critical role in the functionality and performance of hard disk drives. Their application has enabled the development of increasingly sophisticated storage solutions for personal and enterprise computing.

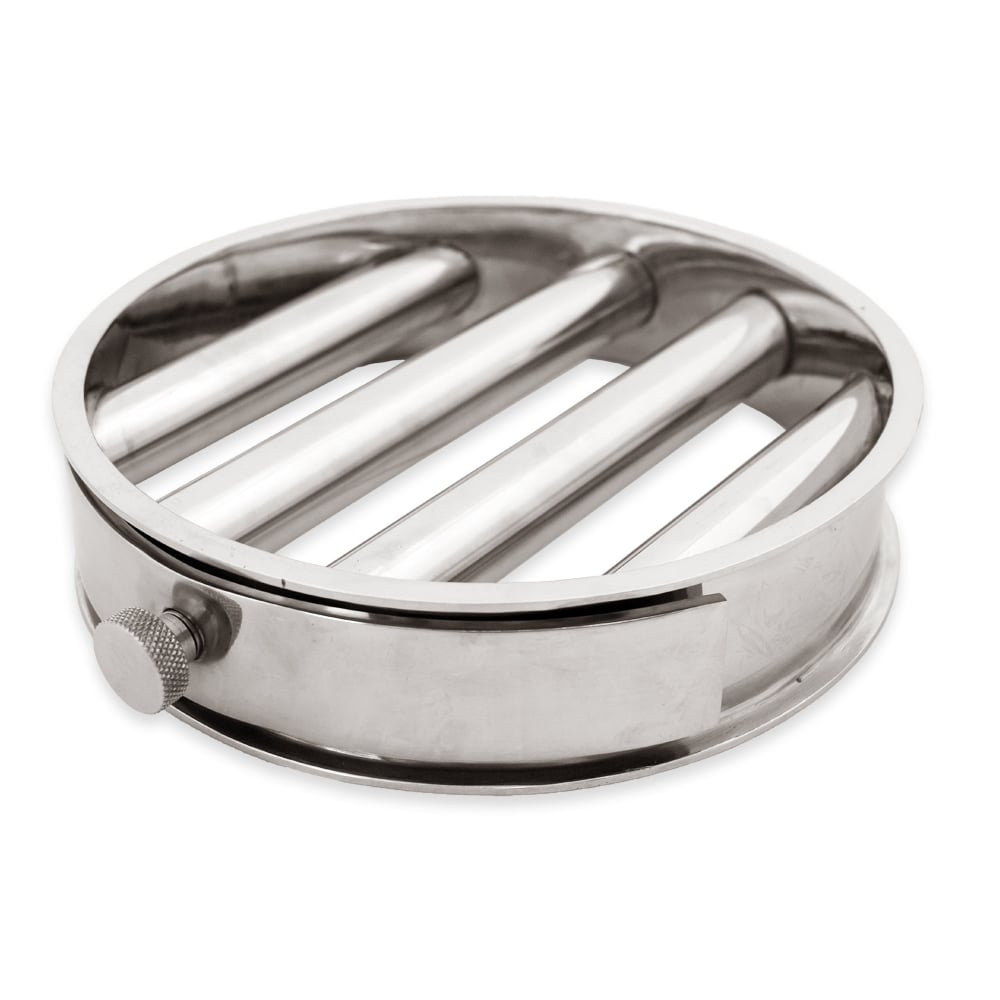

Neodymium Magnetic Separator

Neodymium Magnetic Separator

Neodymium magnets are widely used in magnetic separators due to their high magnetic strength and excellent magnetic properties. Magnetic separators are used to separate magnetic materials from non-magnetic materials in various industries, such as mining, recycling, and food processing.

In magnetic separators, neodymium magnets are typically used in two ways. The first is to provide a strong magnetic field that can attract and hold magnetic particles. The second is to induce a magnetic field in a conductive material, such as a metal conveyor belt, to separate the magnetic material from the non-magnetic material.

Neodymium magnets used in magnetic separators are usually in the form of small, rectangular or cylindrical magnets that are arranged in a matrix to increase the magnetic field strength. These magnets are typically coated with a protective layer to prevent corrosion and improve durability.

The use of neodymium magnets in magnetic separators has revolutionized the way magnetic materials are separated, allowing for more efficient and cost-effective separation processes. Neodymium magnets also enable the development of more compact and powerful magnetic separators, which are essential in many industries.

Other Common Applications of Neodymium Magnet

Sintered NdFeB permanent magnet material has excellent magnetic properties, and it is widely used in electronics, electric machinery, medical equipment, toys, packaging, hardware machinery, aerospace and other fields. Common NdFeB permanent magnet products include permanent magnet motors, speakers, magnetic separators, computer disk drives, magnetic resonance imaging equipment and instruments, etc.


Neodymium magnets have a wide range of applications, including in speakers, hard drives, and magnetic separators. They are particularly useful due to their strong magnetic field and high energy density, making them ideal for applications that require powerful and compact magnets. Neodymium magnets are also relatively inexpensive to produce, further contributing to their popularity in various industries.
